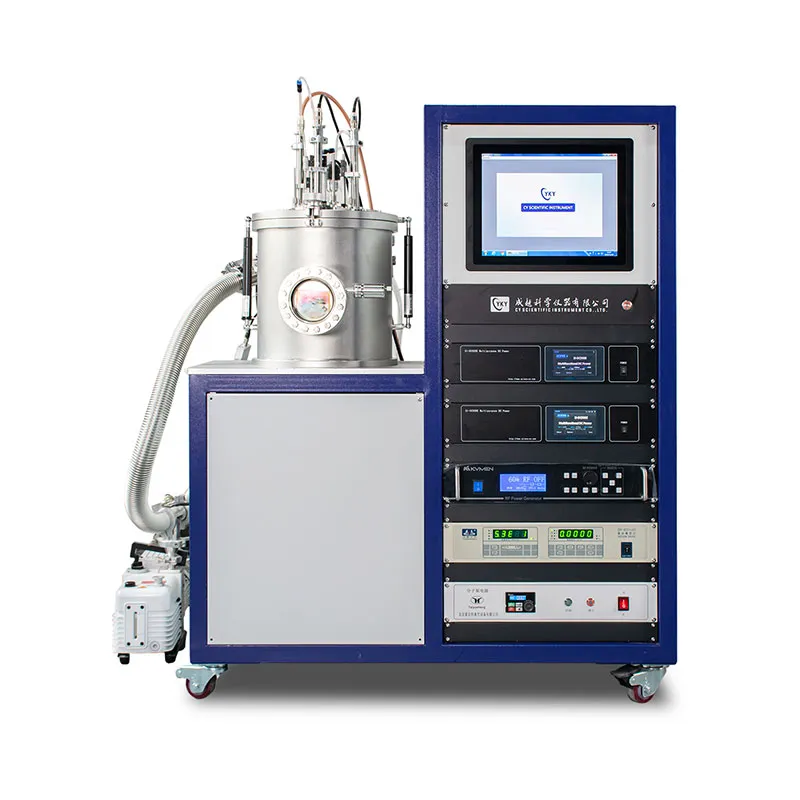

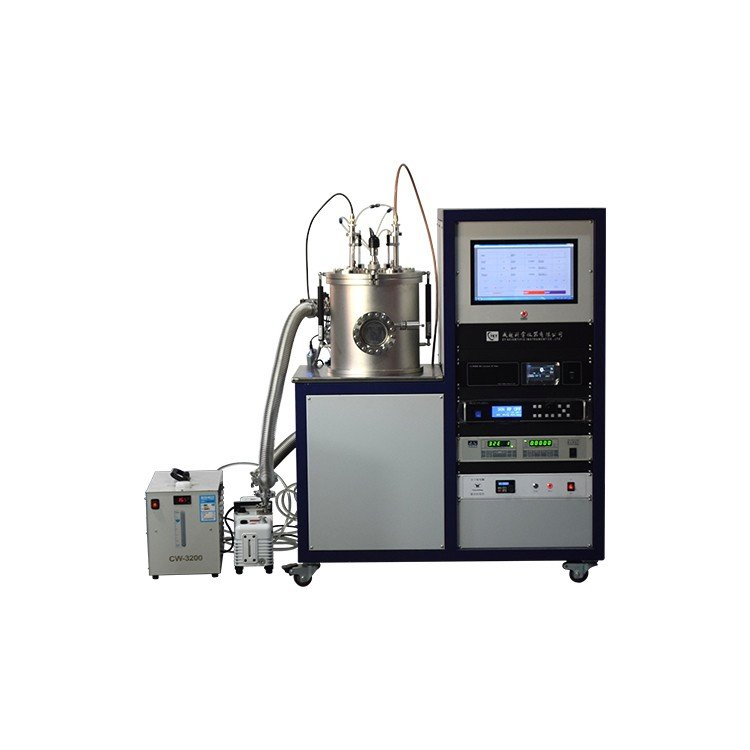

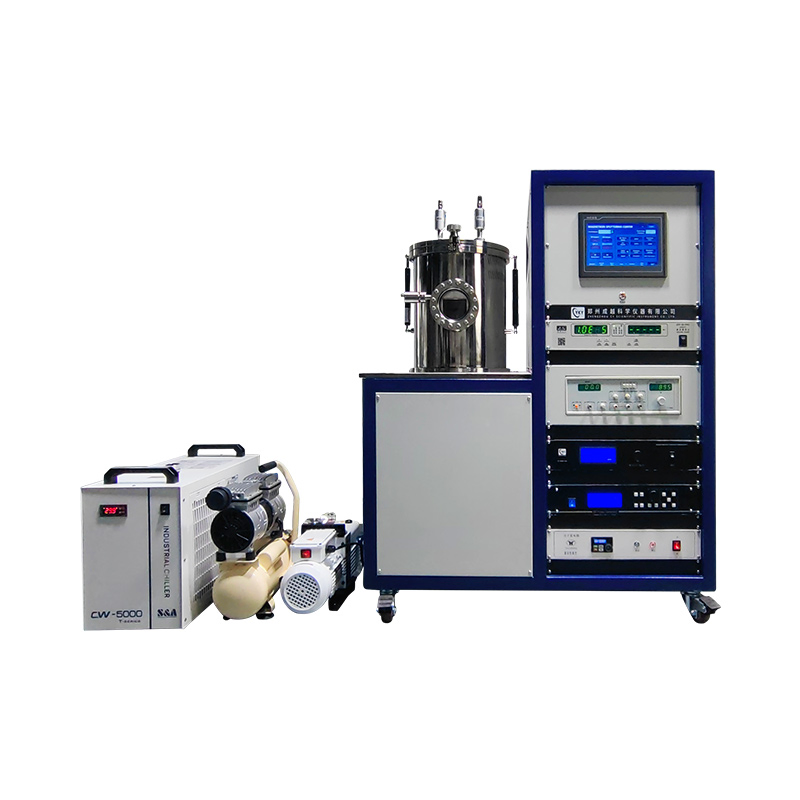

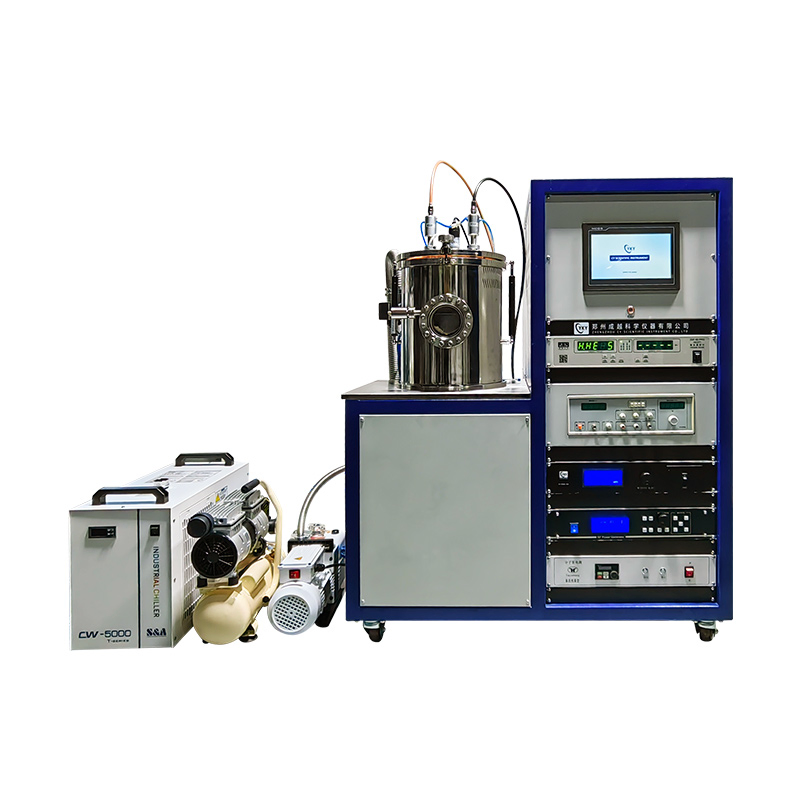

Three targets RF magnetron sputtering coater is a cost-effective magnetron sputtering coating equipment. It is standardized, modular and customizable. There are 1-inch or 2-inch magnetron targets for you to choose. Customers can choose the target according to the size of the substrate to be coated.
The instrument is equipped with advanced turbomolecular pump sets, the ultimate vacuum is up to 1.0E-5Pa. Molecular pump gas path is controlled by multiple solenoid valves, allowing users to open the chamber to take out samples without shutting down the pump, greatly improving work efficiency.
| Feature | Specifications | Feature | Specifications | |
|---|---|---|---|---|
| Sample Stage | Size | φ185mm | Temp Accuracy | ±1ºC |
| Heating Temp | Max 500ºC | Rotate Speed | 1-20rpm adjustable | |
| Sputtering Head | Quantity | 3 (1", 2" optional) | Water Chiller | 10L/min Flow Rate |
| Cooling Mode | Water cooling | - | - | |
| Vacuum Chamber | Chamber Size | φ300mm × 300mm | Watch Window | φ100mm |
| Material | Stainless Steel | Opening Mode | Top cover open | |
| Vacuum System | Ultimate Vacuum | 1.0E-5Pa | Pumping Rate | Molecular: 600L/S |
| Power Supply | Configuration | RF 300W × 3 | Total Power | 2.5KW |
Specializing in the development and production of laboratory technology research equipment since 2005. The product range includes equipment for mixing, pressing, burning, cutting, grinding, polishing, and coating. Currently exported to over 25 countries including the United States, Europe, and Southeast Asia, serving numerous scientific research units and university labs.
