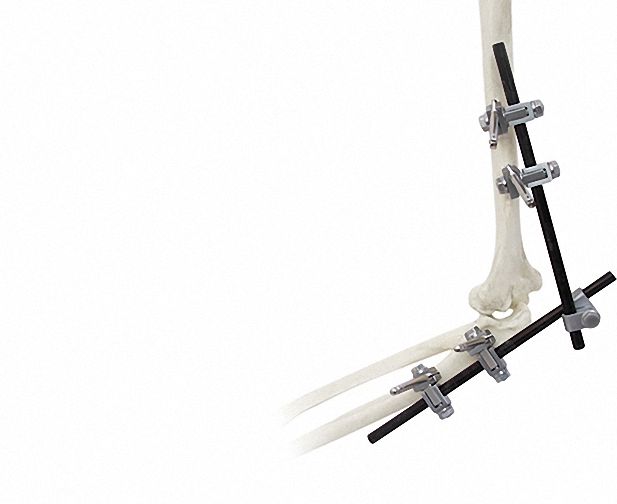

External Fixator for Bone Fixation, White & Black, Titanium Alloy Design
External Fixator for Bone Fixation, White & Black, Titanium Alloy Design
External Fixator for Bone Fixation, White & Black, Titanium Alloy Design
External Fixator for Bone Fixation, White & Black, Titanium Alloy Design
External Fixator for Bone Fixation, White & Black, Titanium Alloy Design
1 / 5
External Fixator for Bone Fixation, White & Black, Titanium Alloy Design
External Fixator for Bone Fixation, White & Black, Titanium Alloy Design
External Fixator for Bone Fixation, White & Black, Titanium Alloy Design
External Fixator for Bone Fixation, White & Black, Titanium Alloy Design
External Fixator for Bone Fixation, White & Black, Titanium Alloy Design

External Fixator for Bone Fixation, White & Black, Titanium Alloy Design

Customization: Available
Application: Orthopedic, Neurosurgery, Microsurgery
Material: Steel
Send Inquiry

Product Description

Basic Info.
Model NO.
External Fixation
Feature
Reusable
Certification
CE, ISO13485
Color
White & Black
Usage
Bone Fixation
Material Type
Titanium Alloy & Stainless Steel
Name
External Fixator
Transport Package
Box
Specification
50*50*50CM
Origin
China
HS Code
90211000
Production Capacity
500,000 Pieces/Year
Product Description
External Fixator -- The Pinnacle of Modular Fixation Systems

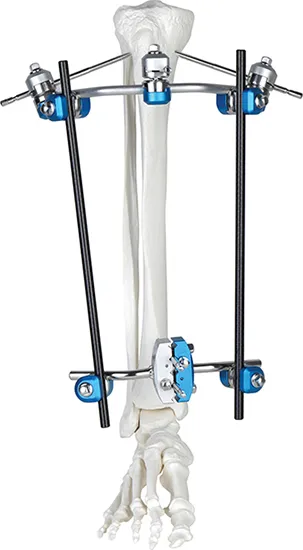

External Fixator Unit
Key Features:
• Revolutionary technology for seamless, user-friendly operation.
• Independent bone screw configuration for precise management.
• Snap-fit design ensures efficient surgical procedures.
• Enhanced fracture visualization with Medical aluminum and carbon fiber.
• Unmatched stability and adaptability for diverse medical requirements.
• Compact, space-saving frame for easy transport.
• Designed for complex fractures and soft tissue loss management.

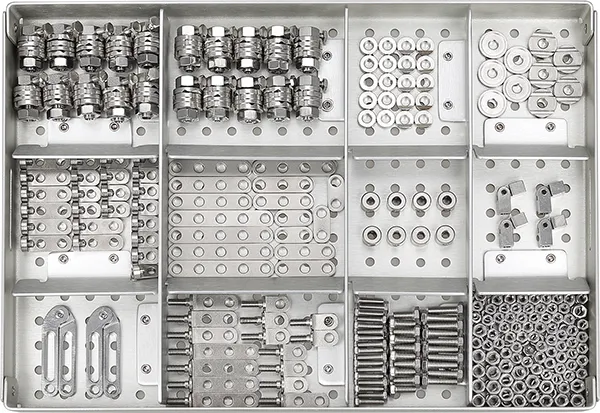

Bone Fixation Detail

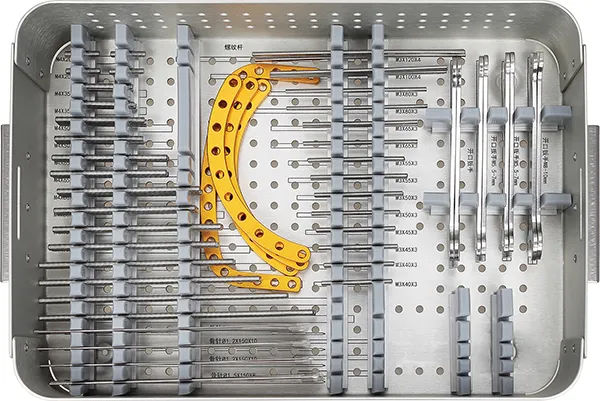

Titanium Alloy Fixator
Component Specifications
Component Name Specification Details Qty
Independent Couplingφ6*φ14(1.5-2.0)10
Needle Clipφ4*φ9 (φ1.0)5
Cone Washerφ4*φ910
Double Groove Needle Clampφ4*φ14(2.0-2.5)5
Post With Threaded Postφ4*25(2 Hole)*M48
Connection Plateφ4*40 (4 Hole)4
Straight Connection Plateφ44
Fixator (Hinge)M4*20mm4
BoltsM3*1217
Hex NutM3 / M490
Straight Threaded RodM4*50 / M4*808
Bone Screws1.0*150 / 1.2*15020
Product Variations & Applications

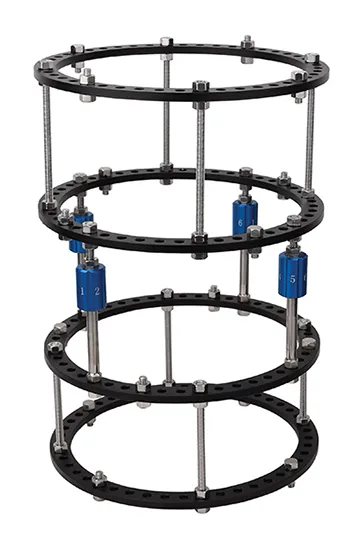

Lower Limbs Lengthening Fixator

Lower Limbs Lengthening (Tibia/Femur)

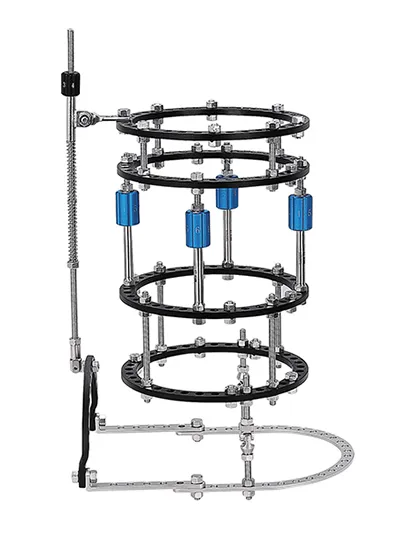

Orthopedic External Fixator

Humeral & Tibial Lateral Epicondyle

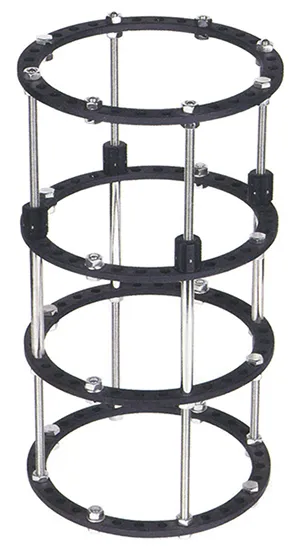

Ring Fixator

Ring Fixator (Tibia/Femur)

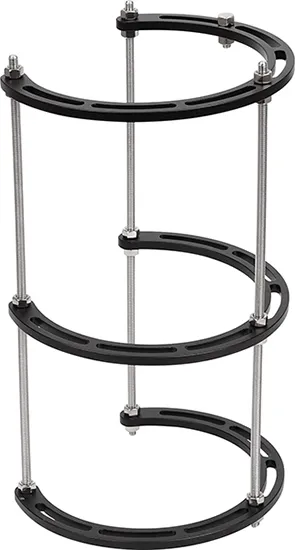

2/3 Ring Fixator

2/3 Ring Fixator

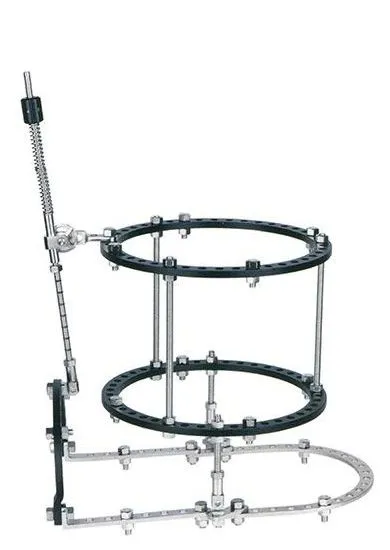

Ankle Joint Fixator

Ankle Joint Fixator (Equinus)

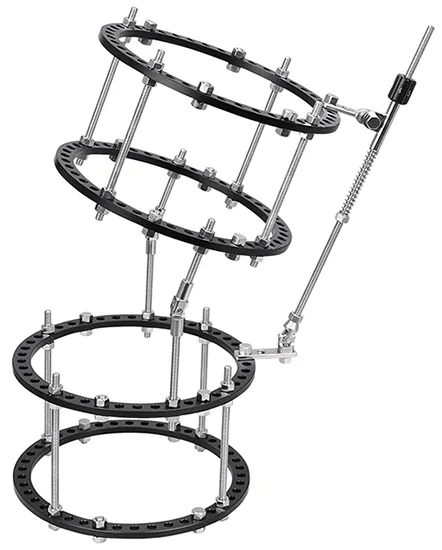

Knee Joint Fixator

Knee Joint Fixator

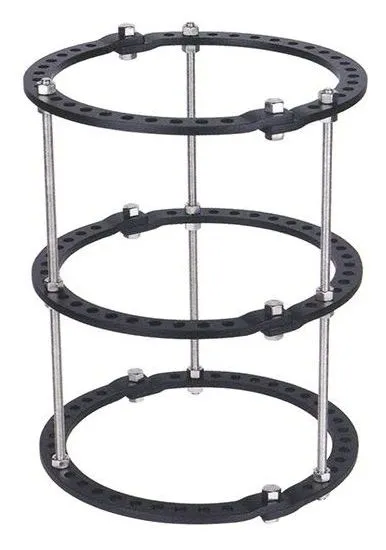

Tibia Ring Fixator

Standard Ring Fixator

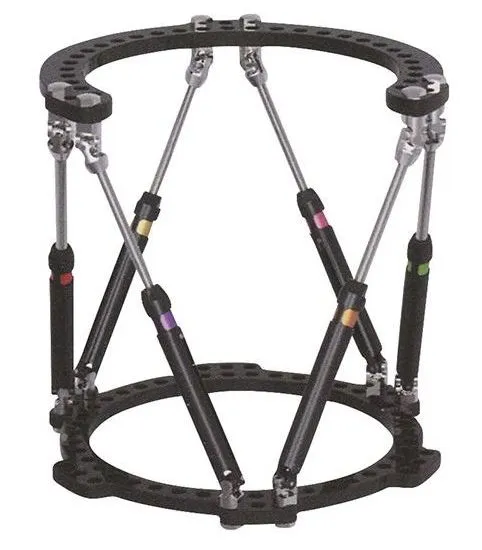

Femur Fixation

Advanced Ring System

Frequently Asked Questions
What materials are the external fixators made of?
Our external fixators are primary constructed using high-grade Titanium Alloy and Stainless Steel, with specific components utilizing Medical aluminum and carbon fiber for optimal visualization and stability.
Is the system reusable?
Yes, the external fixation system is designed to be reusable, providing a cost-effective and sustainable solution for bone fixation procedures.
What certifications does the product hold?
The product is fully certified with CE and ISO13485 standards, ensuring it meets international quality and safety requirements for medical devices.
Can this system handle complex fractures?
Absolutely. The modular design and independent bone screw configuration make it ideal for managing complex fractures and cases involving soft tissue loss.
What are the primary clinical applications?
It is widely used for bone fixation in the Tibia, Femur, Humeral, and Ankle joints, as well as for lower limb lengthening and joint fixation.
Does it allow for clear imaging during surgery?
Yes, the use of carbon fiber and high-tier medical aluminum in the frame construction augments fracture visualization for surgeons.
