| Model NO. | SW-EG | Automatic Grade | Automatic |
| Warranty | 2 Years | Certification | CE, ISO |
| Key Selling Points | Competitive Price + Easy to Operate + Long Service Time | ||
| Applicable Industries | Building Material Shops, Manufacturing Plant, Energy & Mining | ||
| Weight | 4500kg | Production Capacity | 10 Sets Per Month |
| Wire Diameter | 0.6mm-4.5mm | Zinc Coating | 10-30 G/M² |
| Number of Wires | 4-40 Wires or Customized | Annealing Method | On Line Annealing |
| Zinc Layer Control | Wipe System | Pickling System | Smokeless Environmental Protection |

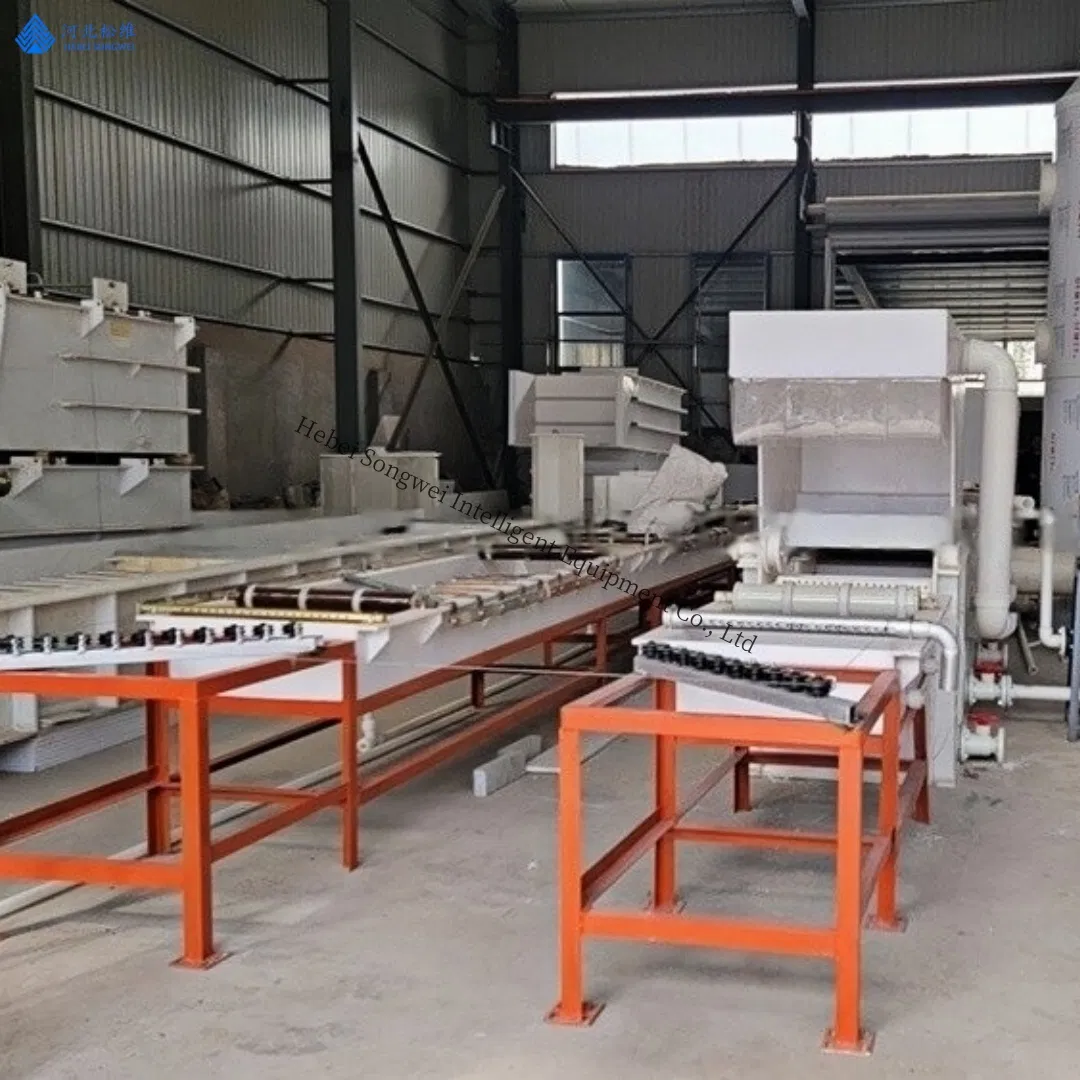

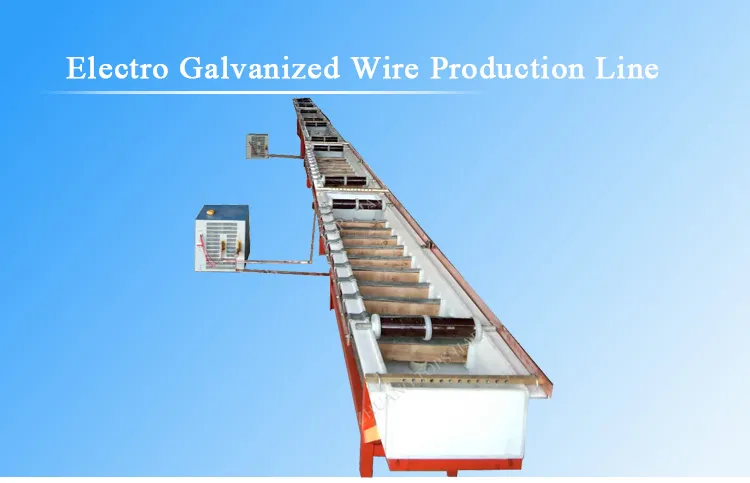

Electro Galvanized Wire Making Machine Steel Iron Galvanizing Machinery for Metal Coating

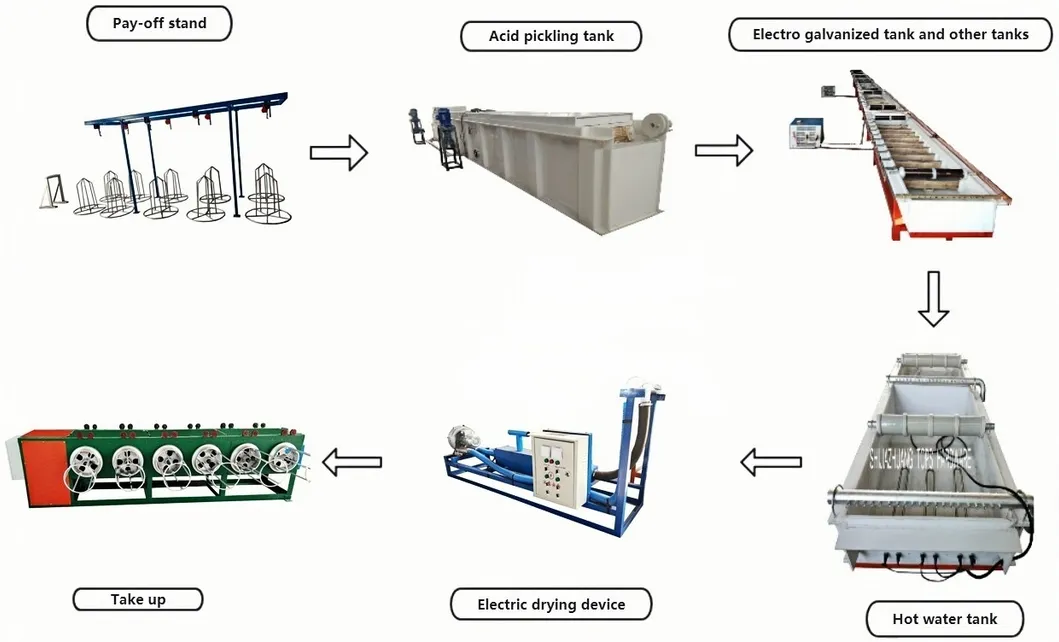

This electro galvanized wire production line is specialized for zinc plating on black iron wire and black annealing wire. Utilizing advanced technology and a sealed acid pickling process, it ensures minimal acid odor and an environmentally friendly workspace. The resulting wire surface is brilliant and durable, widely used in construction, handicrafts, wire mesh, and highway fencing.
| Production Line Parameters | |
| Wire Diameter Range | 0.6mm - 1.6mm / 1.6mm - 4.5mm |
| Zinc Coating Thickness | 10 -- 30 g/m² |
| Number of Wires | 8, 10, 20 wires or customized |
| Raw Material | Carbon steel wire, Iron wire |
| Tank Material | High anticorrosive PP material |
| Working Hours | 24 hours, automatic control |
| Estimated Output | 545 kgs per hour (for 2.0mm wire) |

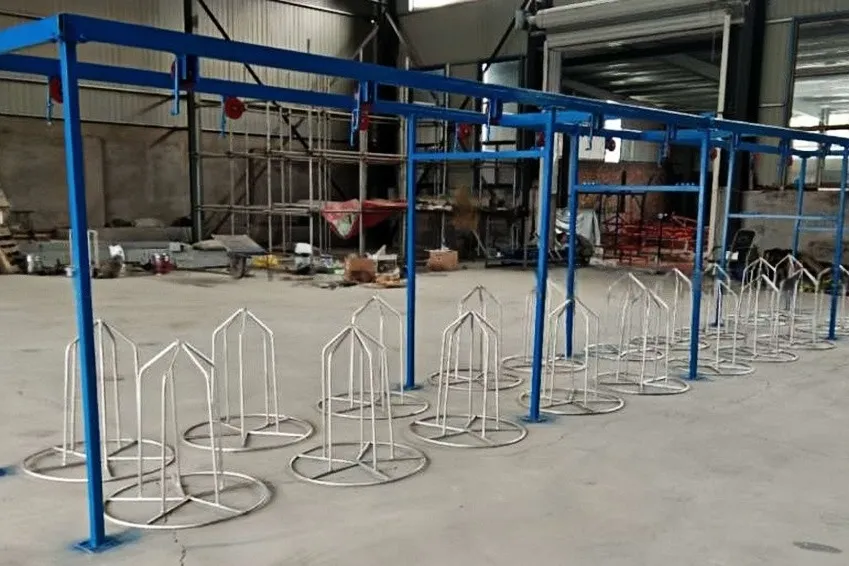

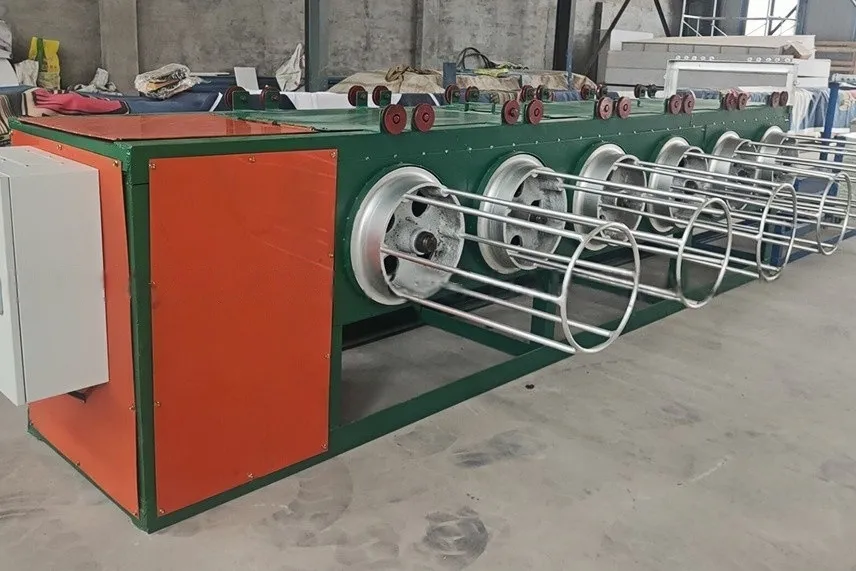

Equipped with a frame quantity matching the take-up capacity for seamless operation.

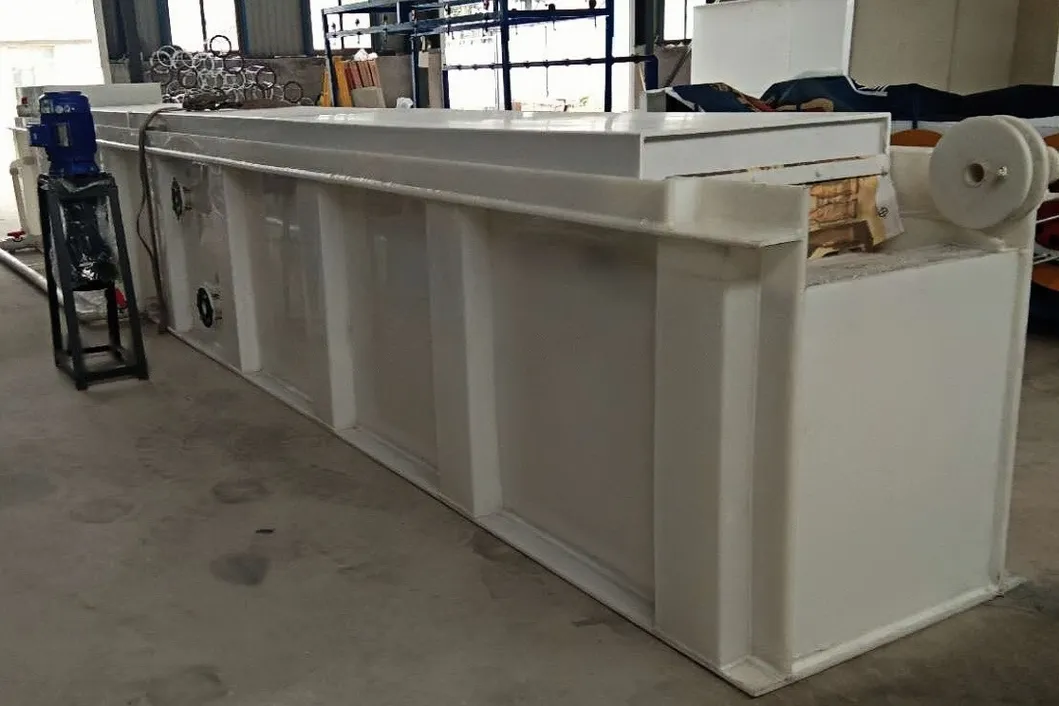

Includes high-efficiency acid and water pumps (1.1kw each) for thorough cleaning.

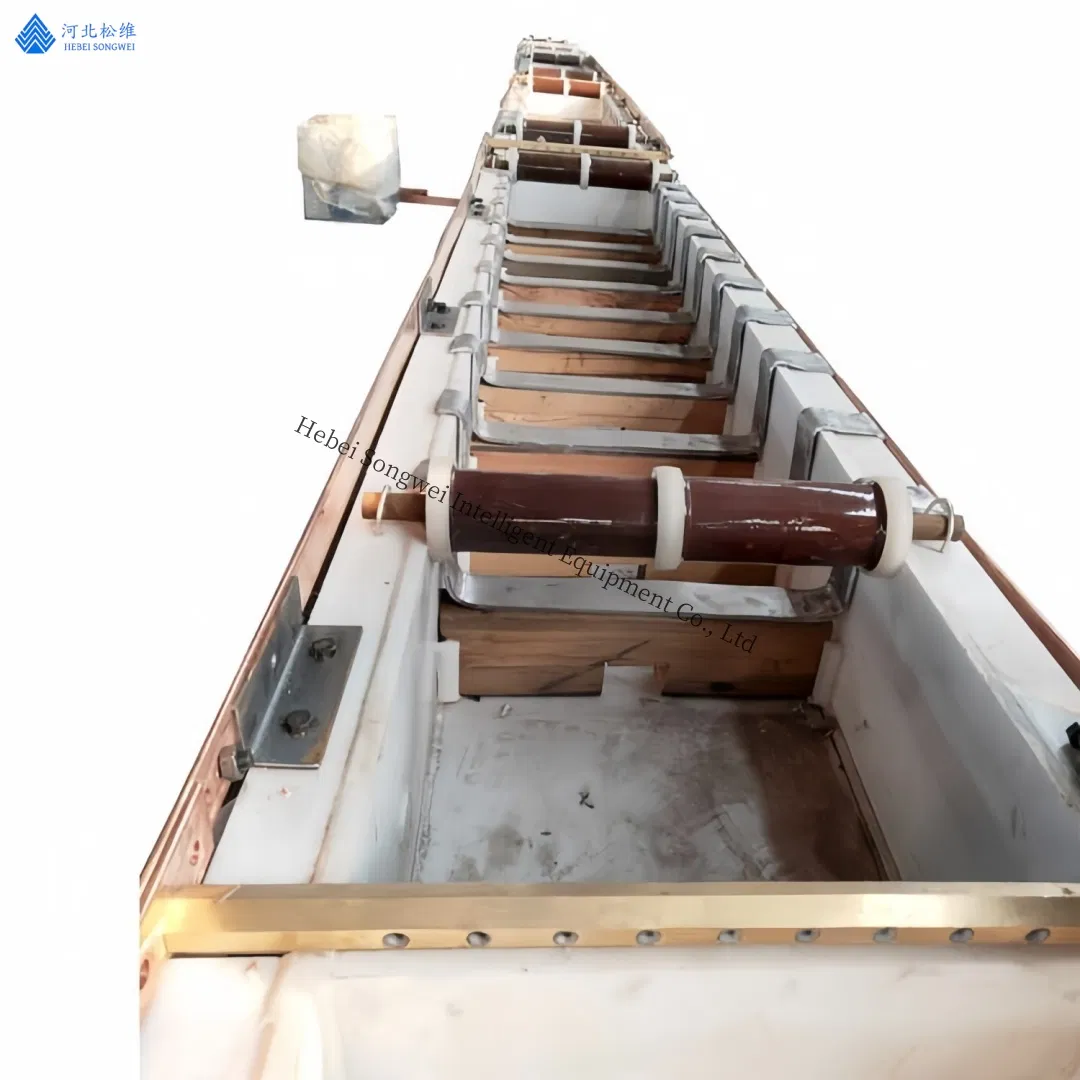

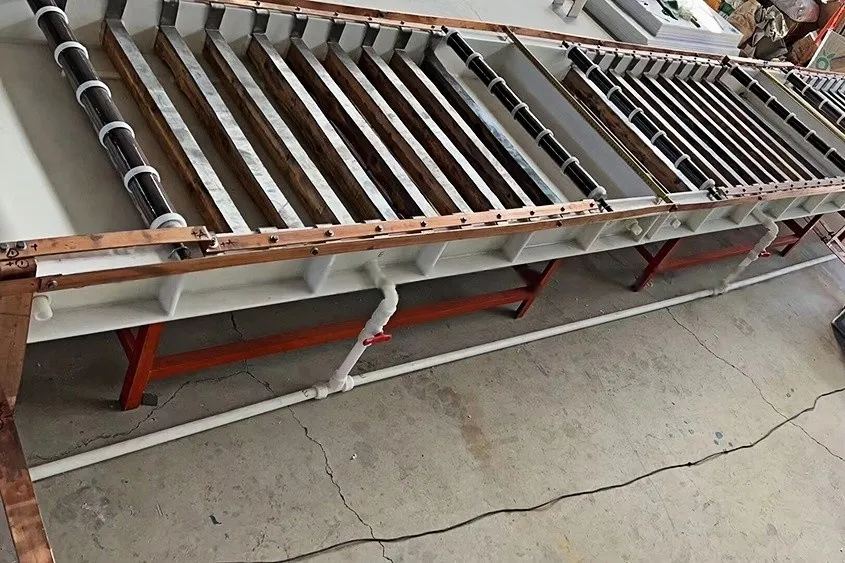

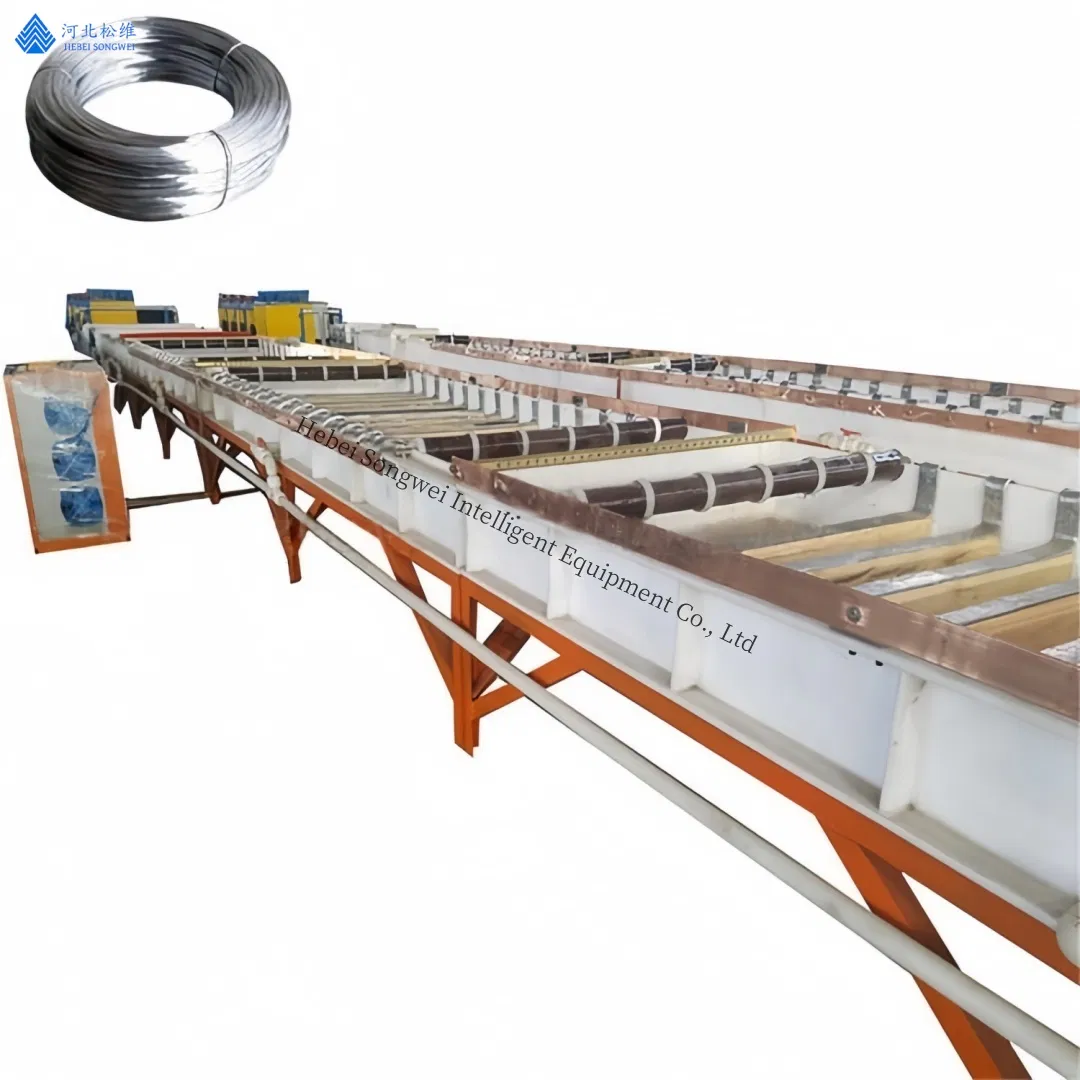

Total length of 16m (4m x 4 tanks) equipped with high-frequency inverters.

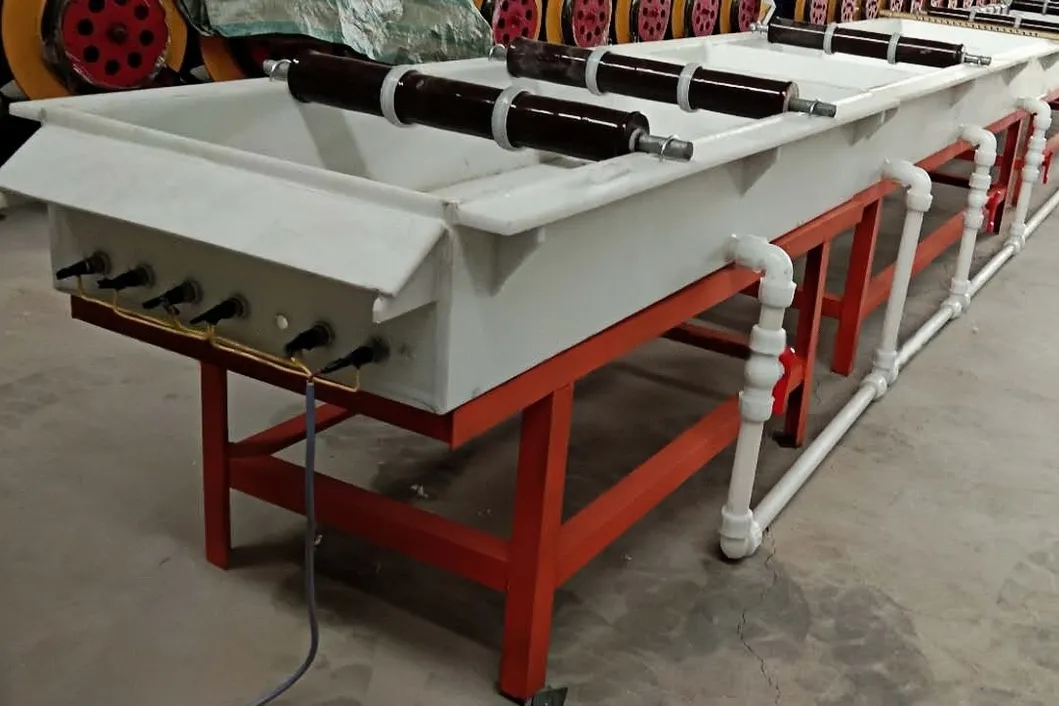

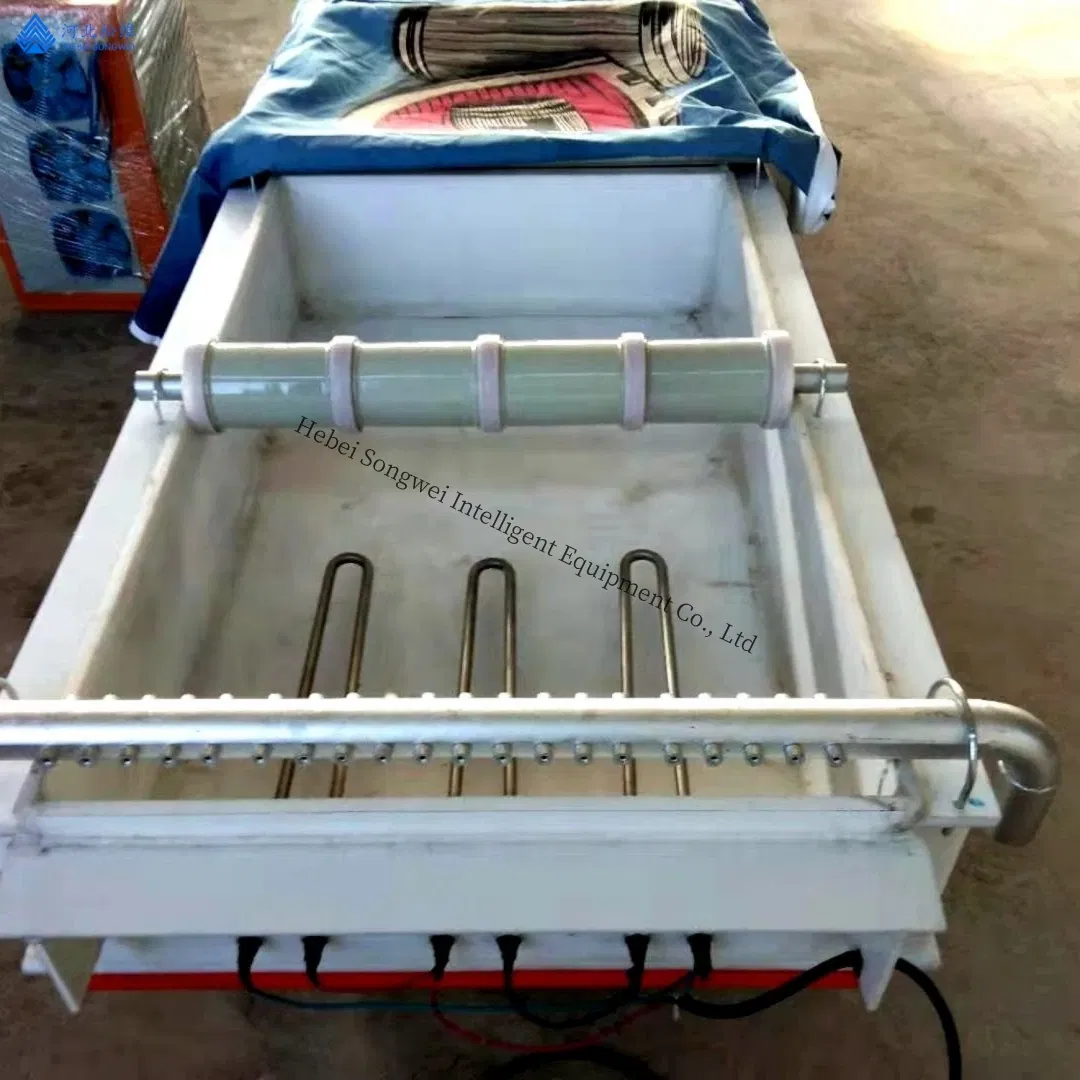

Dual cleaning setup including air-blowing and hot water cleaning tanks.

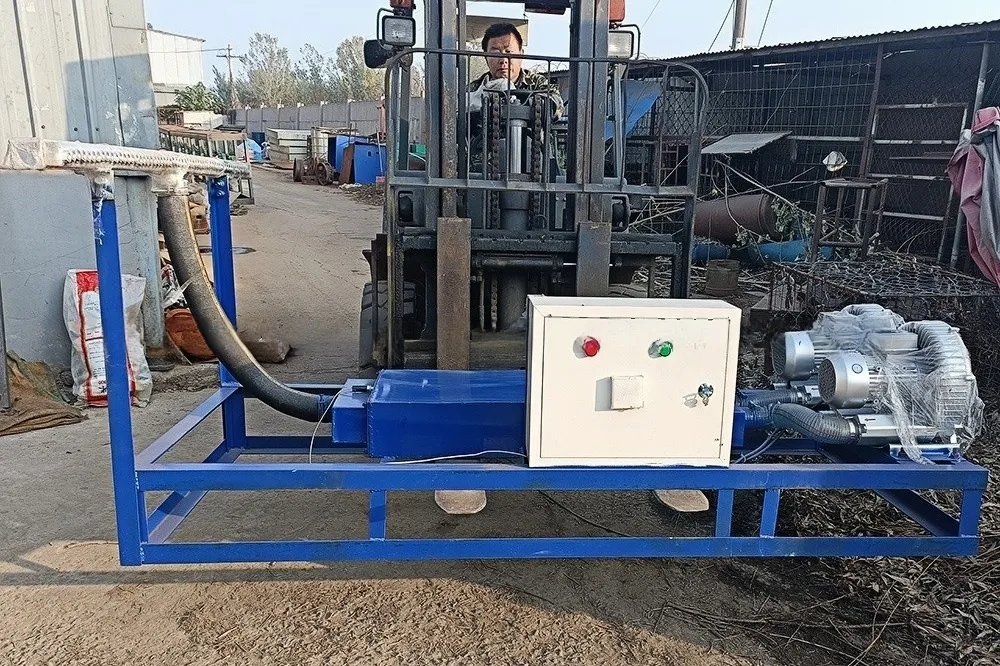

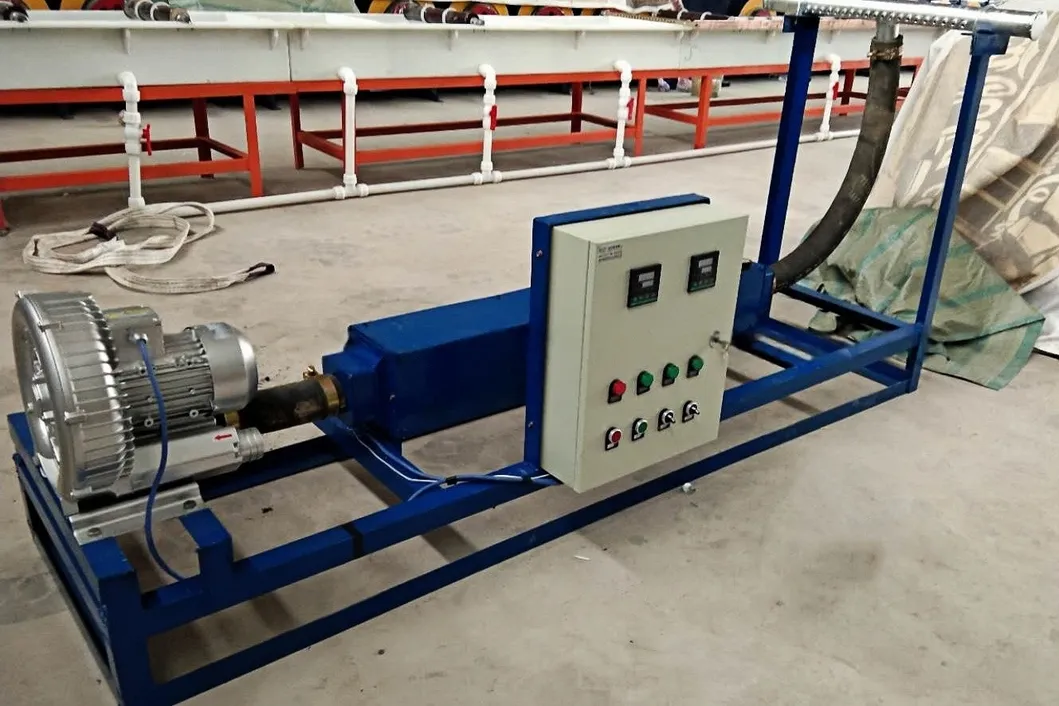

Far infrared heating (2KW) with integrated air-blowing for rapid drying.

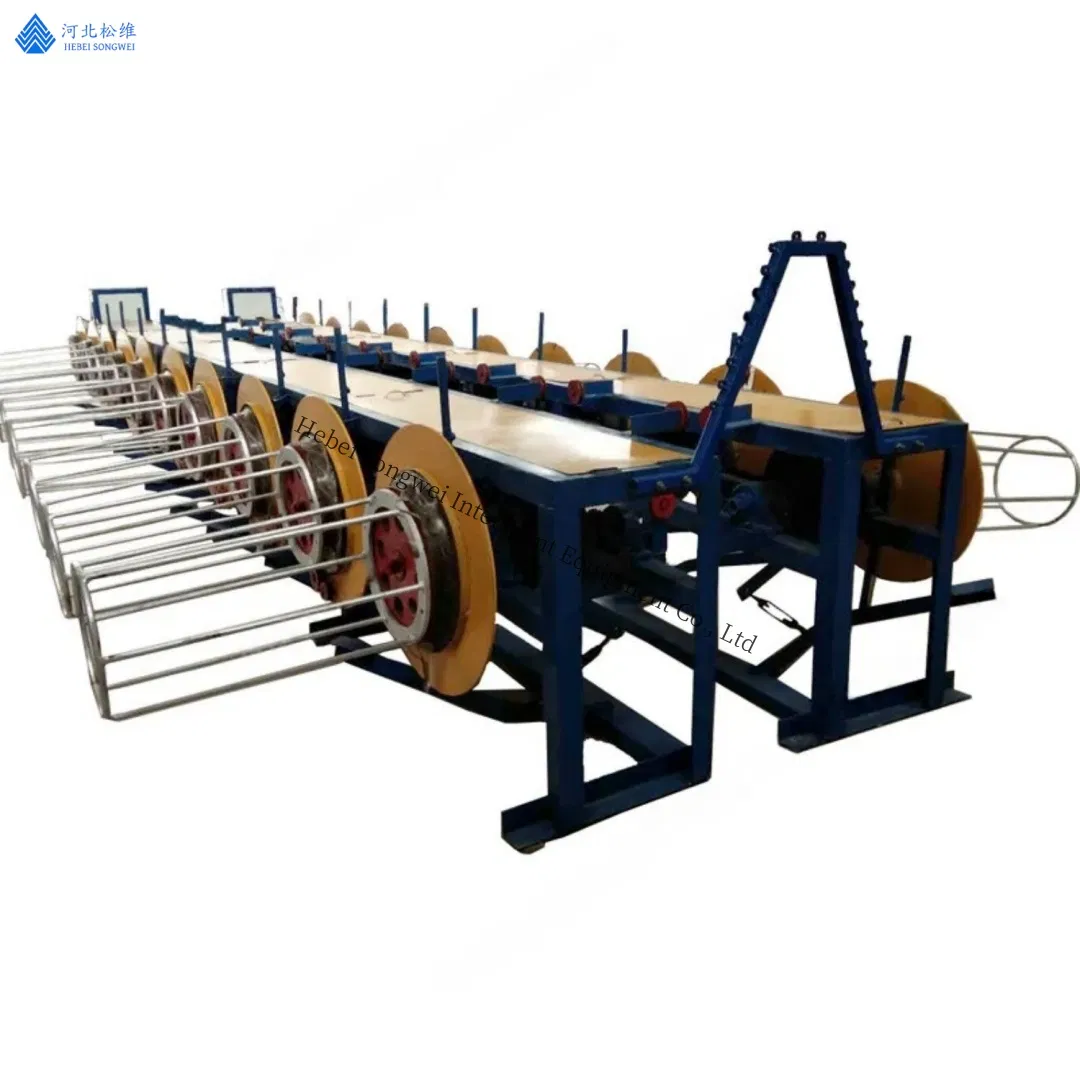

Common type with frequency speed control, gear rack, and electrical cabinet.
