| Type | Coating Production Line |
| Coating | Vacuum Coating |
| Substrate | Steel |
| Certification | CE |
| Condition | New |
| Key Selling Points | Long Service Life |
| Machinery Test Report | Provided |
| Equipment Name | Titanium Nitride Coating Equipment |
| Raw Material | Chrome, Titanium, Silver, etc |
| Coating Color | PVD Coating Colors |
| Applicable Industries | Manufacturing Plant, PVD Coating Service Provider |
| Application | Surface Treatment / Functional PVD Hard Coatings |
| Coating Film | Tin Tic Crn Zrn Ticn |
| Coating Technology | Magnetron Sputtering + Arc Deposition |
| Production Capacity | 50 Set/Sets Per Year |

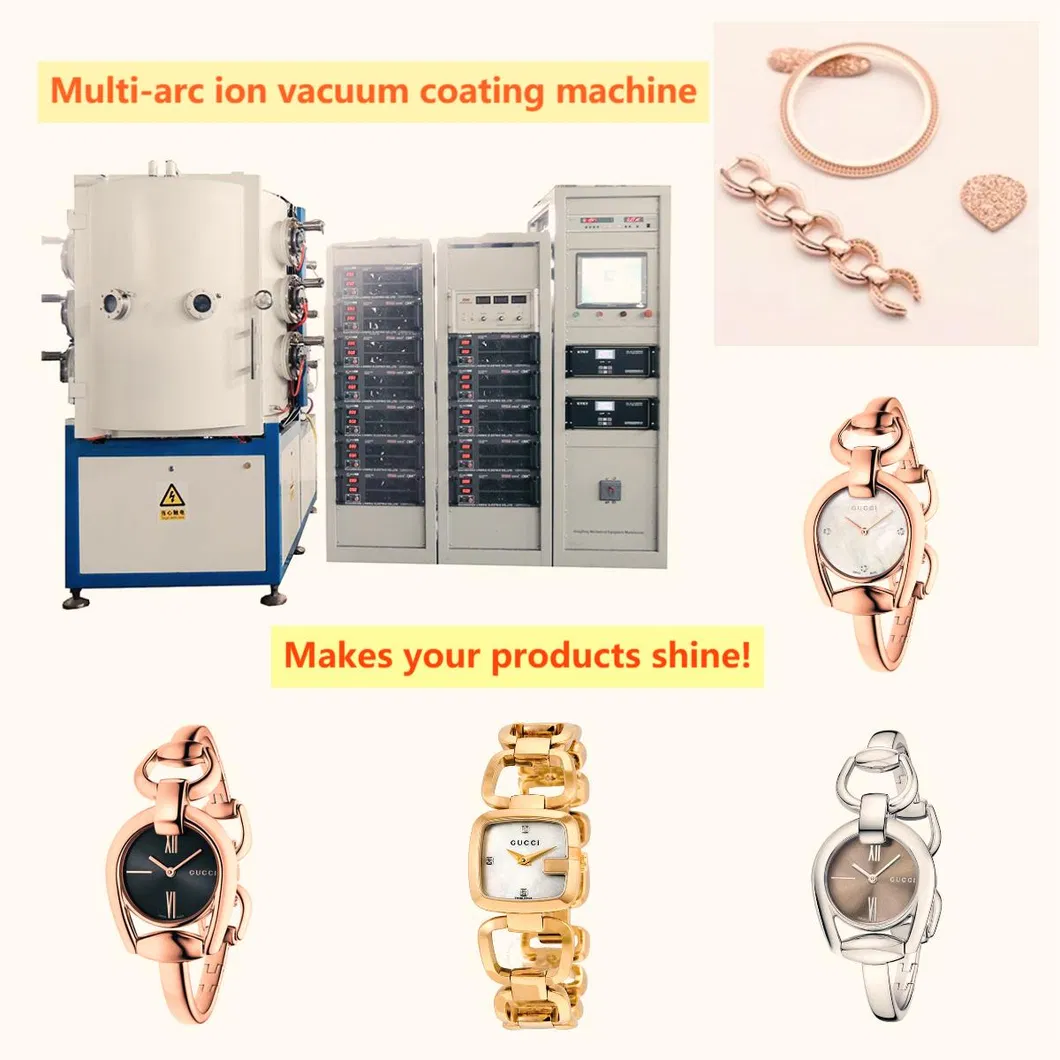

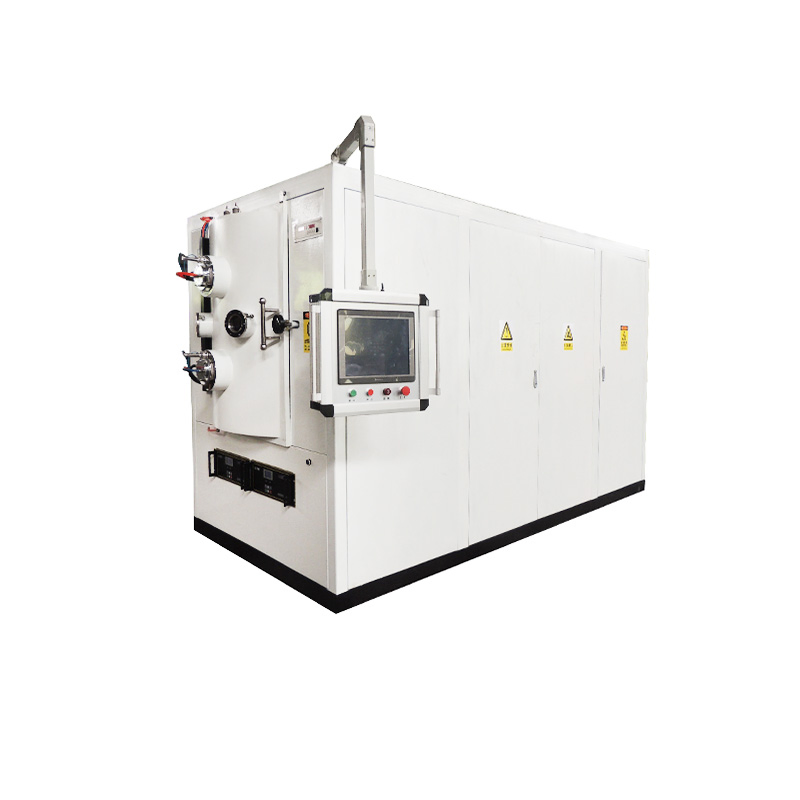

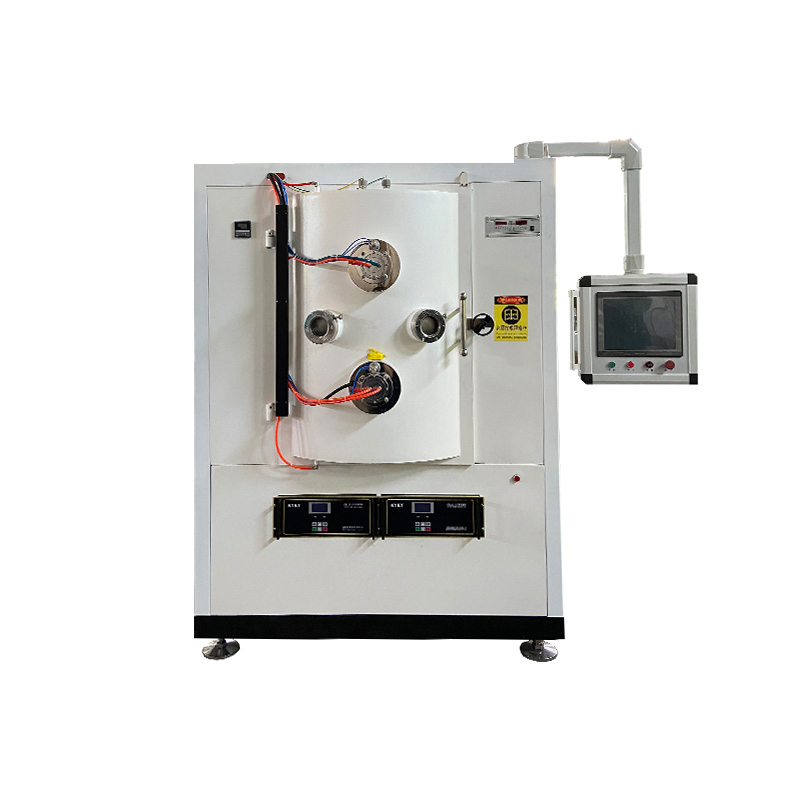

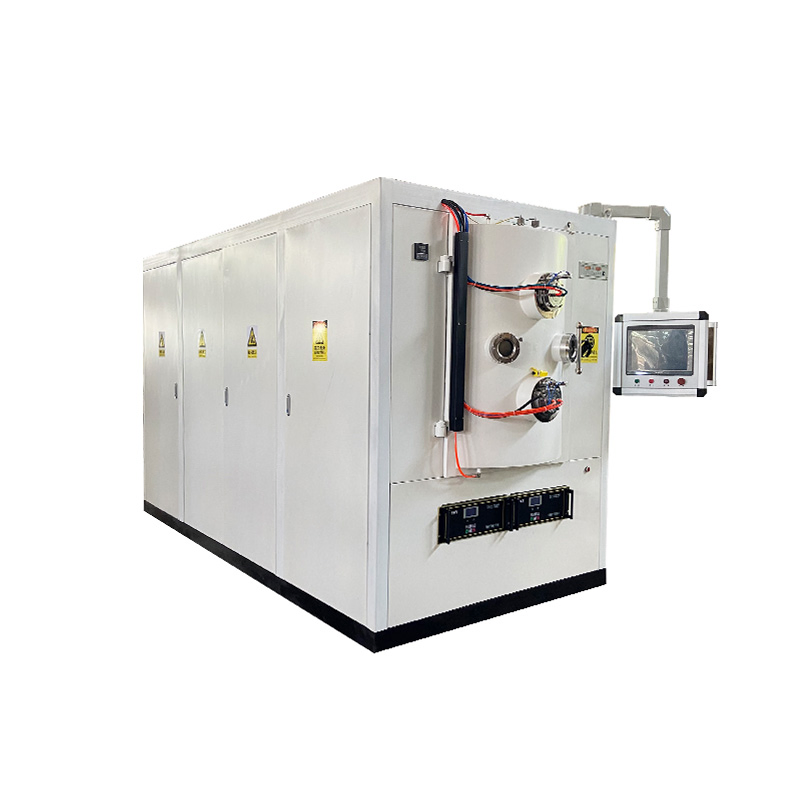

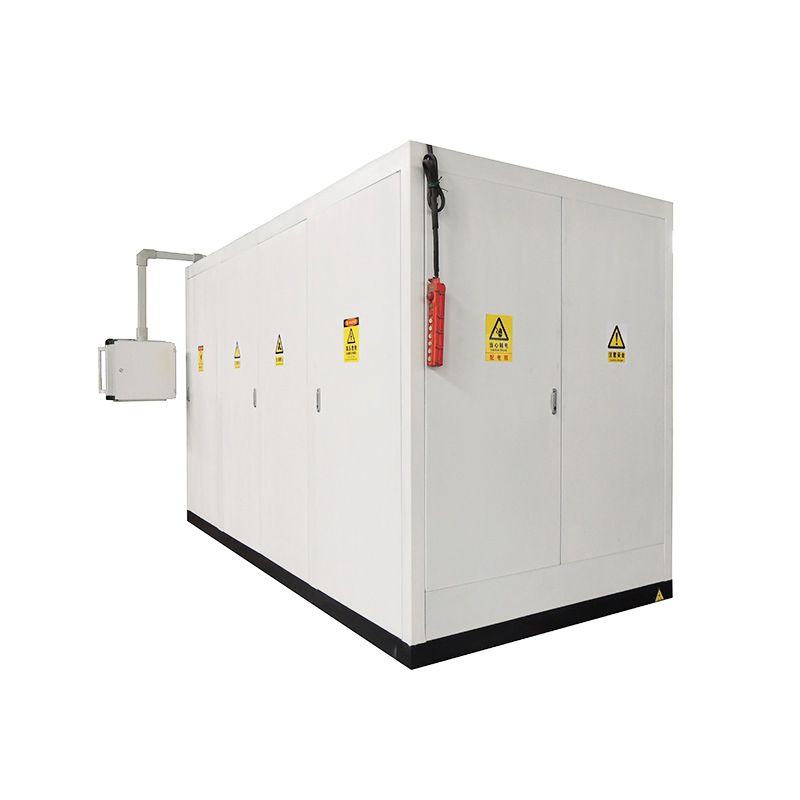

Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System

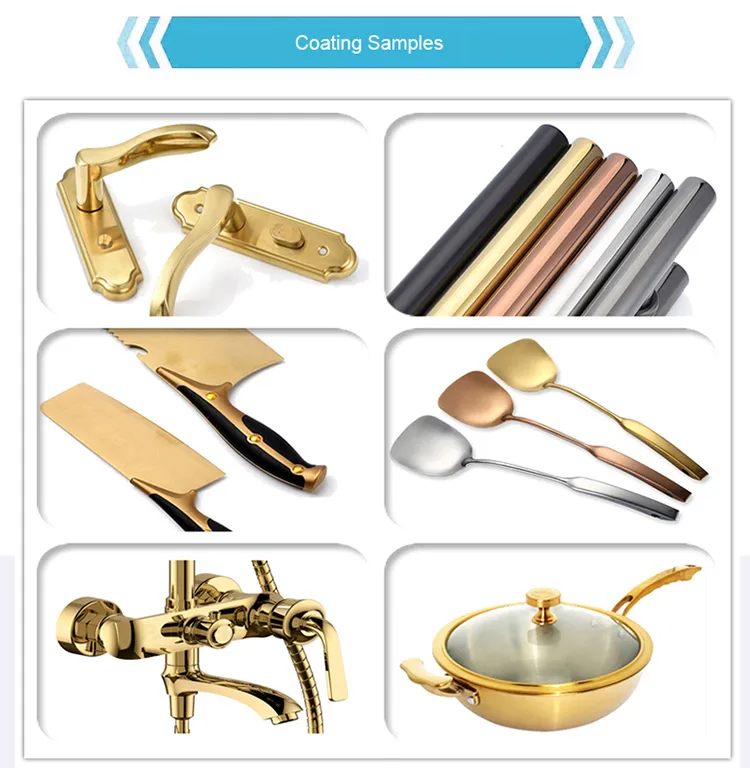

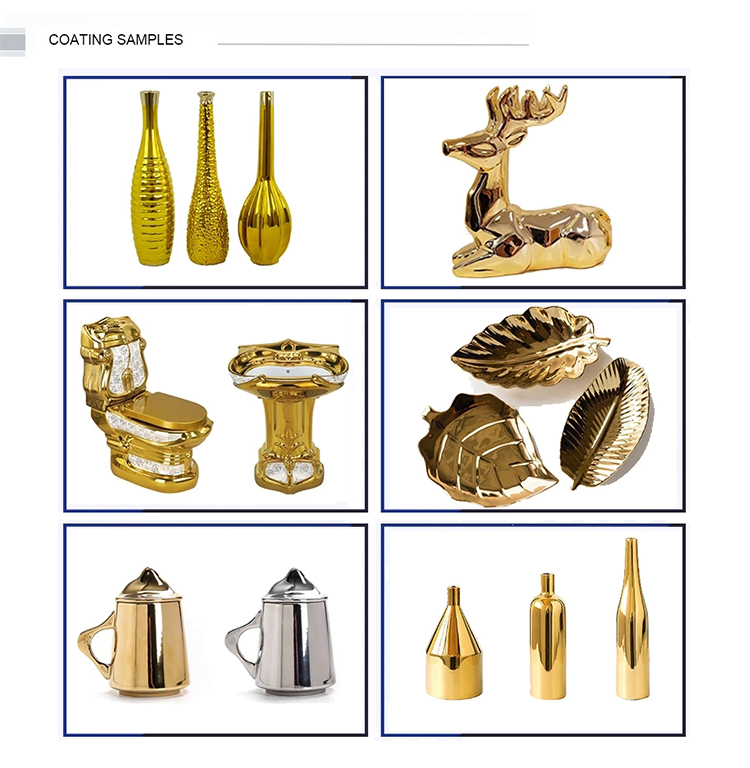

Titanium Nitride Coating Equipment is a high-tech environmental friendly product for metal, glass and surface coating. After coating by this machine can improve the workpieces' hardness, wear resistance, and resistance. Application industries include the watch industry, glass ceramics industry, hardware industry, architecture industry, precision mold industry, tools industry, and automotive industry.
The ARC series, based on arc deposition technology, is the most suitable coating system for producing PVD hard coatings on metal tools, molds, and dies.
| Model | ARC series |
| Vacuum Chamber | SUS304, φ600mm-1200×600-1200mm (H) |
| Substrate Dome Rotation | 10 rpm to 50 rpm (Variable) |
| Arc Evaporation Source | From 2 to 16 sets |
| Vacuum System | Roughing Pump, Diffusion Pumps or Turbo Molecular Pump + Mechanical pumps |
| Ultimate Pressure | 5.0×10-4 Pa or lower |
| Pump Down Rate | 25 minutes (Atm. to 5.0×10-3 Pa) |
| Substrate Heater | 550°C (max.) |
| Layout Dimensions | 5000mm (W)×6500mm (D)×3500mm (H) approx. |
| Power Requirements | 3-phase, 380V, 50/60Hz, 100-180kVA approx. |
| Cooling Water Flow | 140L/min. or greater |
| Gross Weight | 8500kg approx. |
In order to help you choose the best suitable PVD coating machine, please consider the following:
Q1: What is your product, and its maximum dimensions?
Q2: What is the size of your processing material and your desired daily production capacity?
