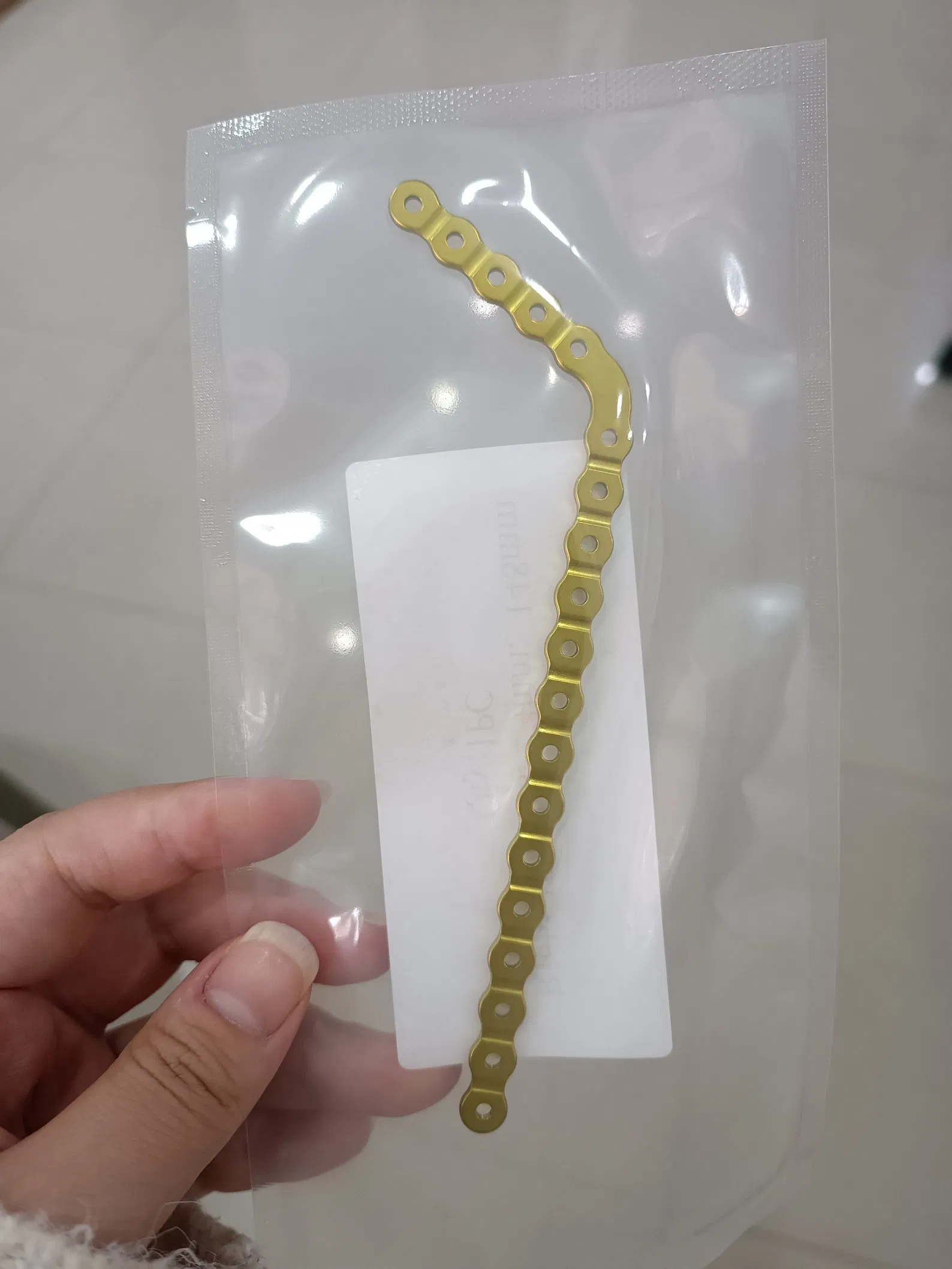

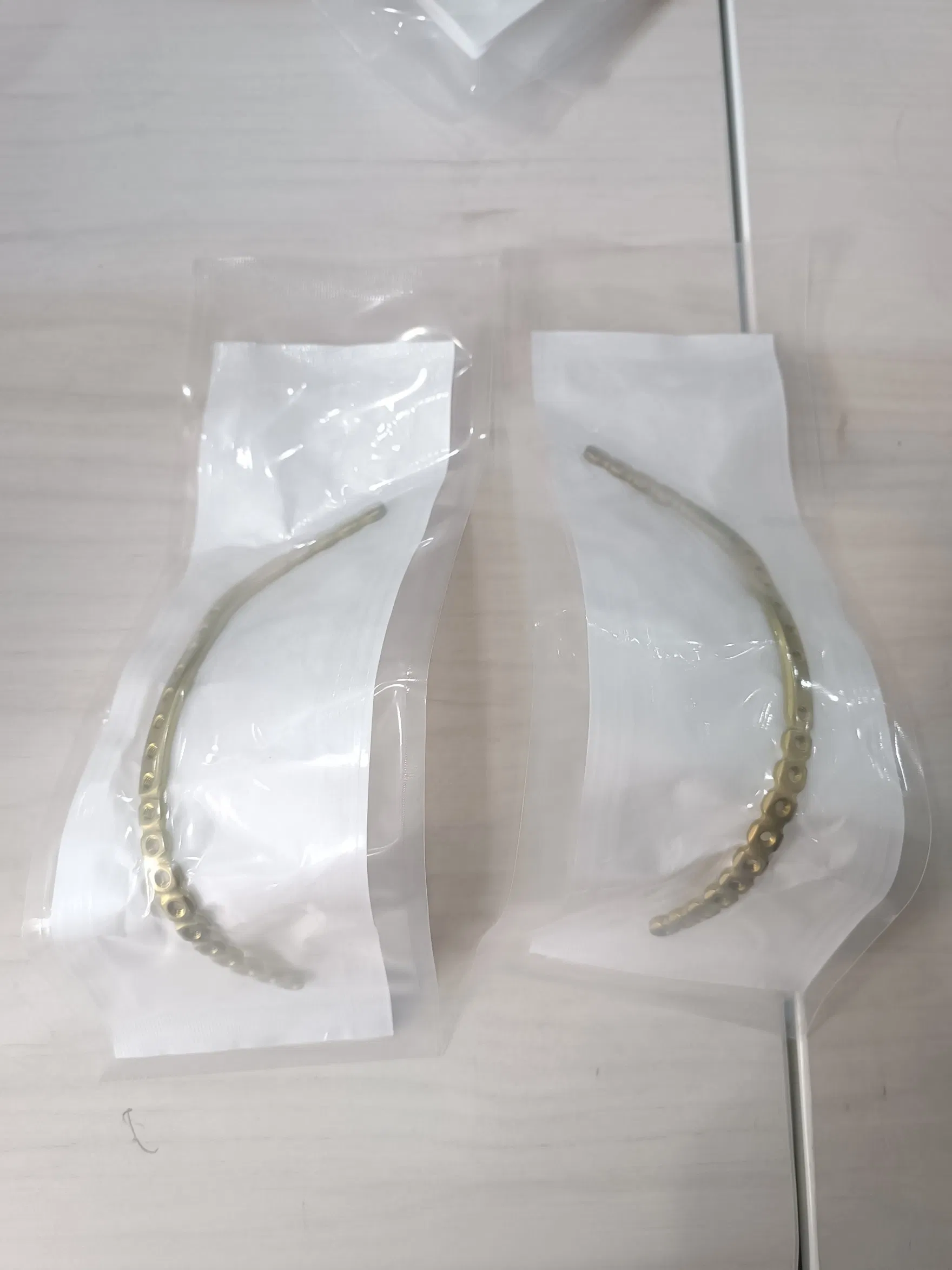

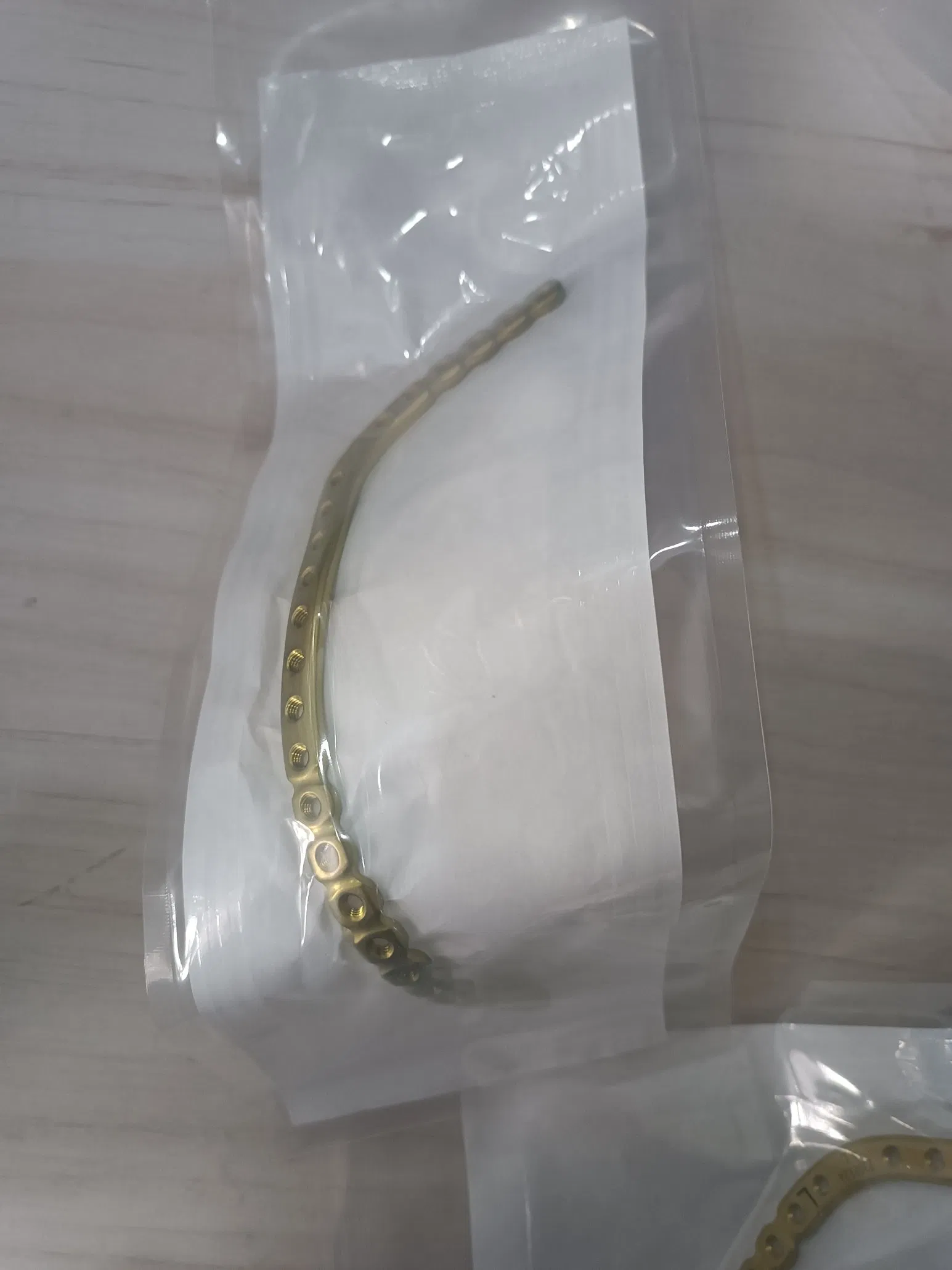

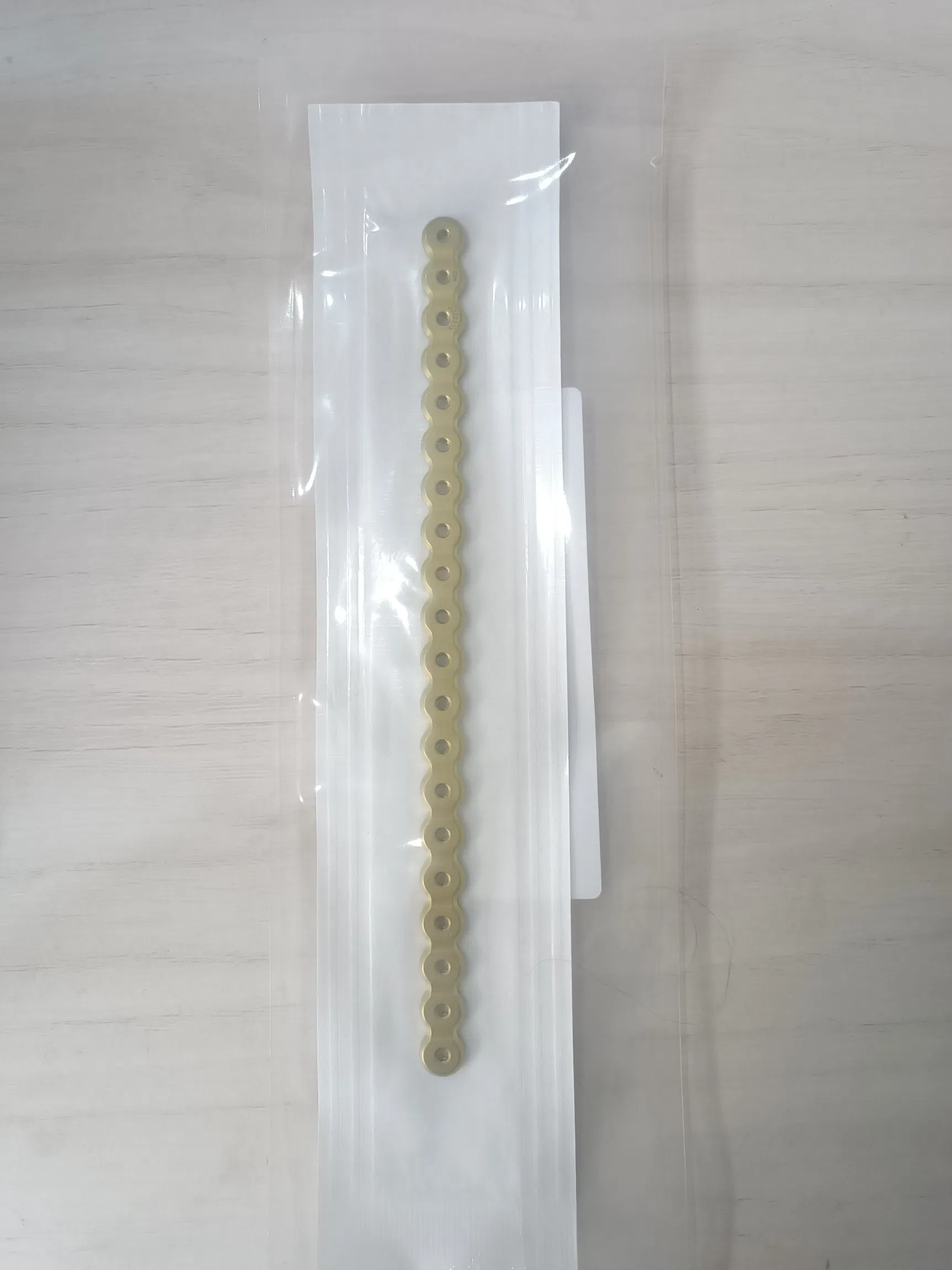

Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
1 / 5
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery
Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery

Maxillofacial Straight 6 Holes Locking Mini Plate for Surgical Implants Orthopedic Surgery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
TY-OI801
Material
Titanium
Feature
Disposable
Certification
CE, ISO13485
Group
Adult
Properties
Implant Materials & Artificial Organs
Instrument Class
Class III
Warranty
One Year
After-Sale Service
Online Technical Support
Package
Sterile/Non-Sterile Package
Origin
Jiangsu, China
HS Code
9021100000
Product Introduction

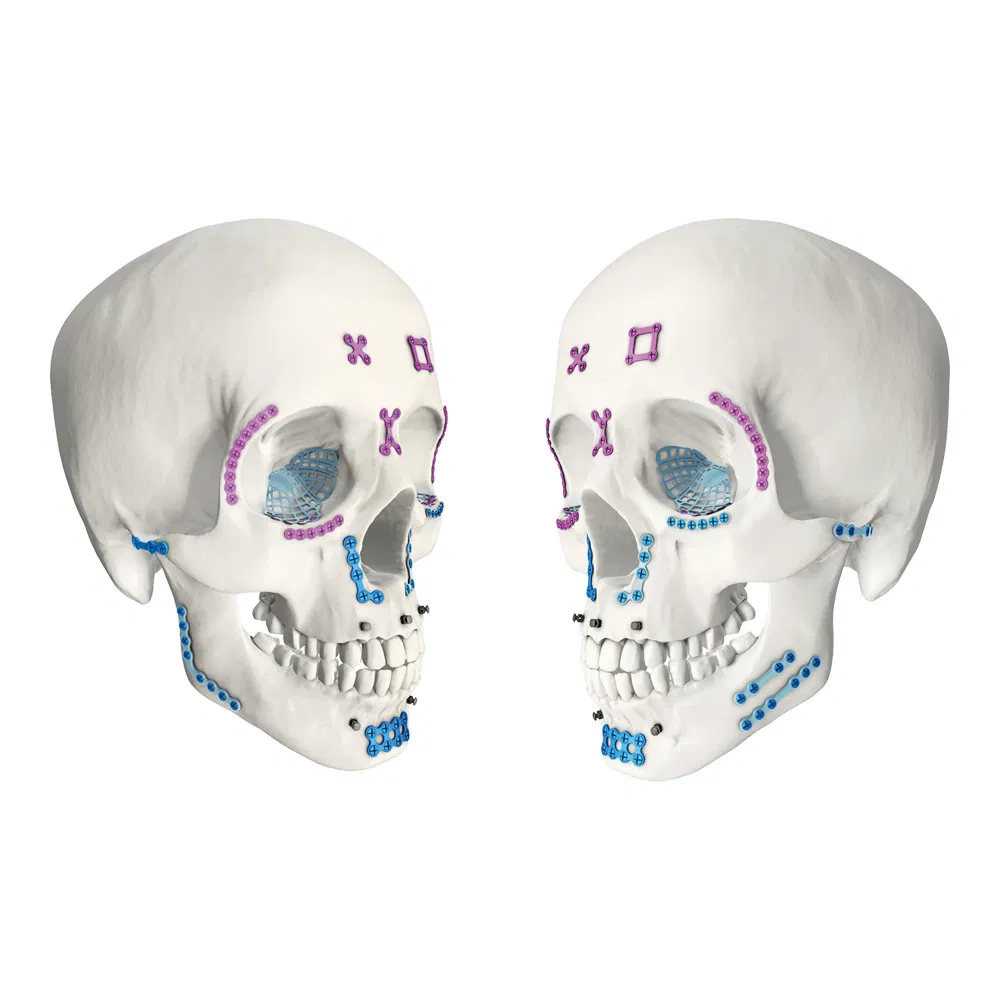

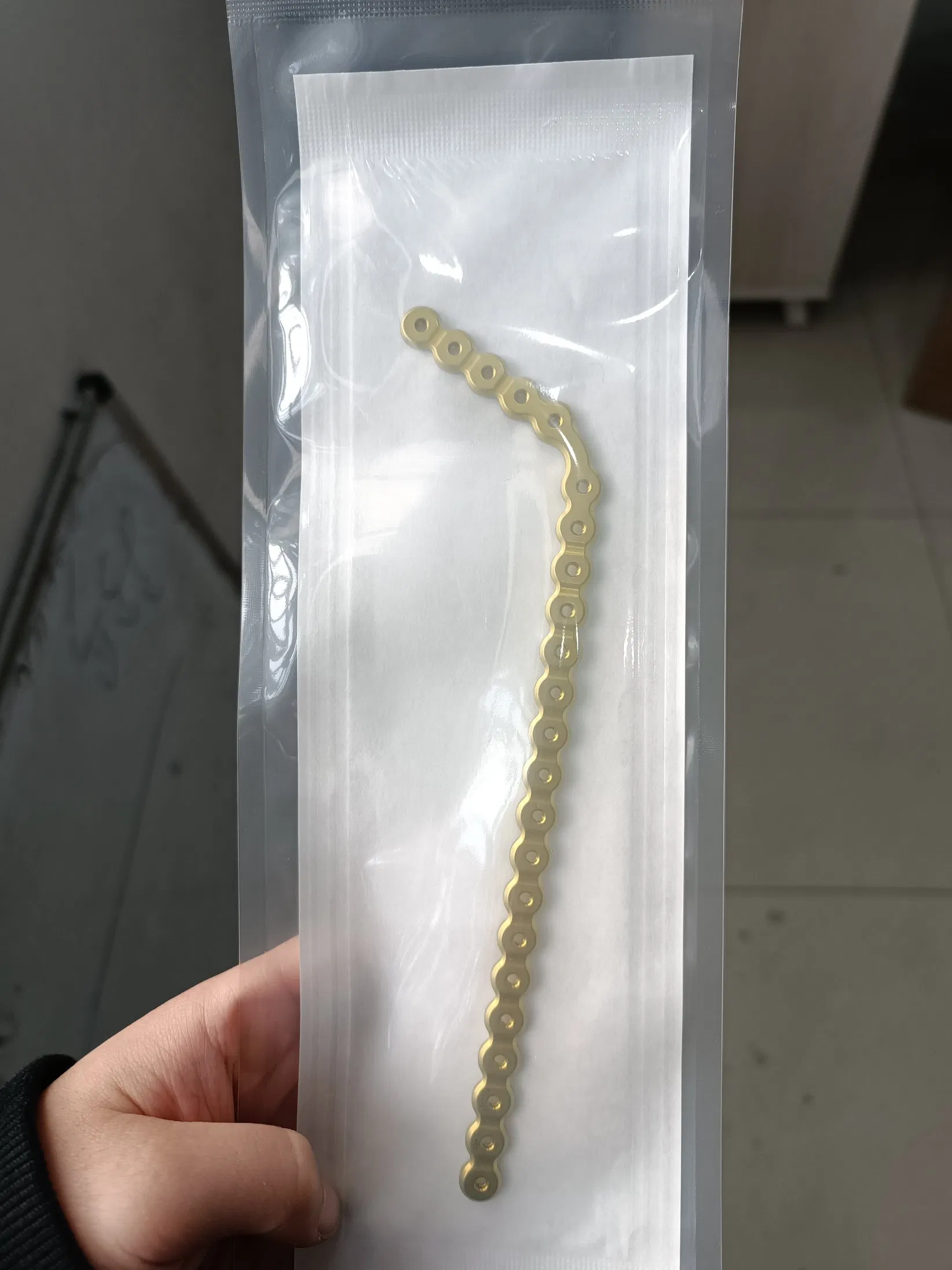

Maxillofacial Straight 6 Holes Locking Mini Plate
Maxillofacial Mini Plate Matching Instruments
Product Features
  • Reversible Design: Locking maxillofacial micro and mini plates can be used reversibly.
  • Advanced Locking: Utilizes high-precision squeeze locking technology.
  • Dual Screw Compatibility: One hole accepts both locking and non-locking screws, allowing free collocation to meet diverse clinical demands.
  • Premium Material: Manufactured using specialized German ZAPP pure titanium for superior biocompatibility and uniform grain size; MRI/CT compatible.
  • Low Profile Design: Concave hole design allows plates and screws to combine closely, reducing soft tissue discomfort.
  • Soft Tissue Protection: Smooth plate edges minimize stimulation and irritation to surrounding tissues.
Matching System

Matching Screws:

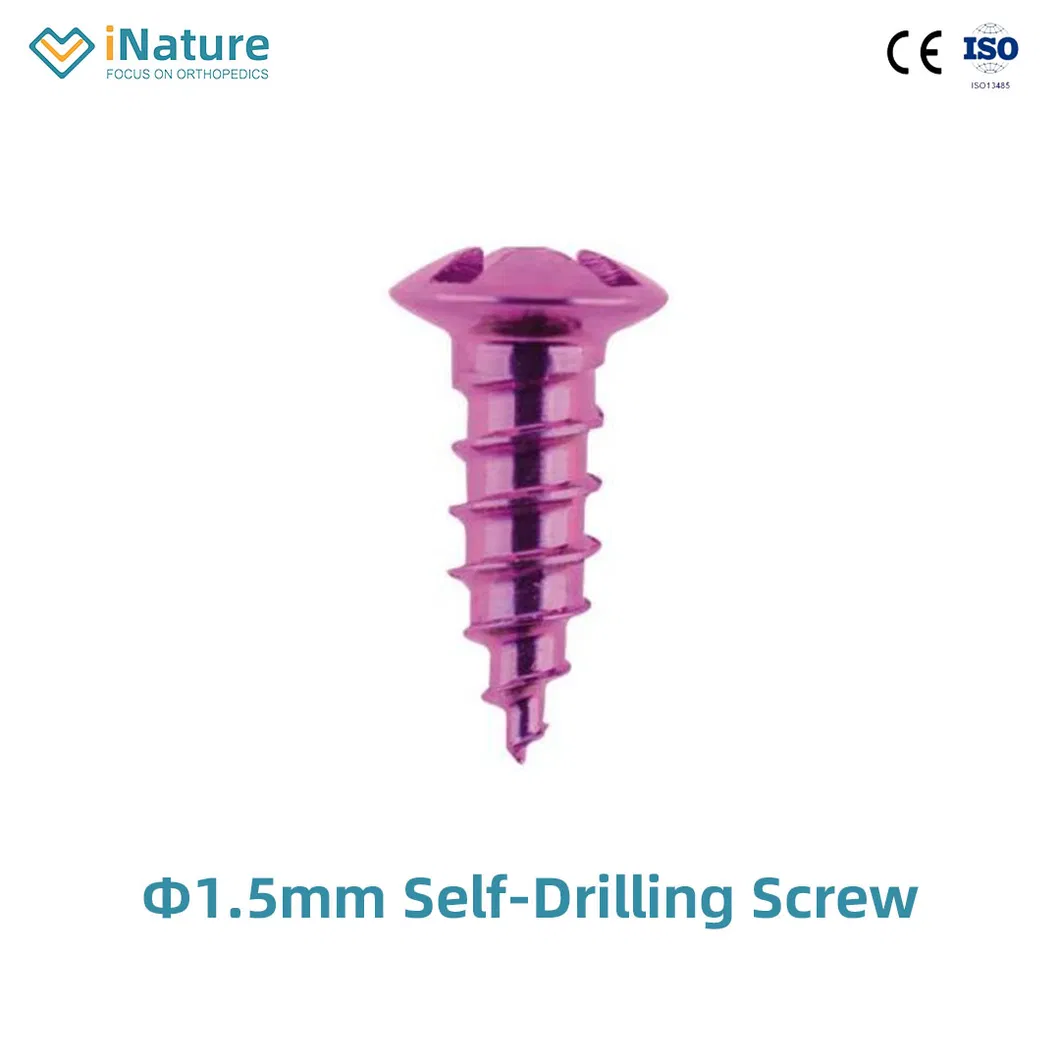

  • φ1.5mm self-drilling screw
  • φ1.5mm self-tapping screw
  • φ1.5mm locking screw

Matching Instruments:

  • Medical drill bit φ1.1*8.5*48mm
  • Cross head screw driver: SW0.5*2.8*95mm
  • Straight quick coupling handle
Model Specifications
Model Specification
Maxillofacial Micro Locking X-Plate4 holes, 0.6mm, 14mm
Maxillofacial Micro Locking Rectangular Plate4 holes, 0.6mm, 14*14mm
Maxillofacial Micro Locking Straight bridge Plate4 holes, 0.6mm, 20mm
Maxillofacial Micro Locking Straight Plate6 holes, 0.6mm, 24mm
8 holes, 0.6mm, 32mm
10 holes, 0.6mm, 40mm
12 holes, 0.6mm, 48mm
14 holes, 0.6mm, 56mm
Maxillofacial Micro Locking Arc Plate6 holes, 0.6mm, 24mm
8 holes, 0.6mm, 31mm
10 holes, 0.6mm, 38mm
12 holes, 0.6mm, 44mm
14 holes, 0.6mm, 49mm
Maxillofacial Micro Locking 110° L-plate4-5 holes, 0.6mm, 16-20mm
Maxillofacial Micro Locking 90° L-plate4 holes, 0.6mm, 16mm
Maxillofacial Micro Locking Y-plate6 holes, 0.6mm, 17-24mm

*All prices are for reference only. Exact price will be based on the latest quotation.

Quality Standards
Surgical Implants Production
Orthopedic Surgery Quality Control
Medical Implant Testing
Full Product Range Detailed Specifications
Frequently Asked Questions
What material is used for these maxillofacial plates?
The bone plates are manufactured using specialized German ZAPP pure titanium, known for its excellent biocompatibility and uniform grain size.
Are the plates compatible with MRI and CT scans?
Yes, the high-quality titanium material used does not affect MRI or CT examinations after the surgical procedure.
Can I use both locking and non-locking screws in the same plate?
Yes, the unique hole design allows for the free collocation of both locking and non-locking screws to better meet specific clinical indications.
How does the locking mechanism work?
The plates utilize advanced squeeze locking technology to ensure stable fixation and the locking mechanism can be used reversibly if needed.
Are these implants provided sterile?
We offer both sterile and non-sterile packaging options to suit different hospital and surgical facility requirements.
What is the thickness of the micro locking plates?
The micro locking plates typically feature a thickness of 0.6mm, designed to reduce soft tissue irritation while maintaining structural integrity.
