Trauma Implant Micro Straight Maxillofacial Trauma Plate 1.5mm Screw 0.6mm Thickness Skull Mini Bone Plate
Trauma Implant Micro Straight Maxillofacial Trauma Plate 1.5mm Screw 0.6mm Thickness Skull Mini Bone Plate
Trauma Implant Micro Straight Maxillofacial Trauma Plate 1.5mm Screw 0.6mm Thickness Skull Mini Bone Plate
Trauma Implant Micro Straight Maxillofacial Trauma Plate 1.5mm Screw 0.6mm Thickness Skull Mini Bone Plate
Trauma Implant Micro Straight Maxillofacial Trauma Plate 1.5mm Screw 0.6mm Thickness Skull Mini Bone Plate
1 / 5
Trauma Implant Micro Straight Maxillofacial Trauma Plate 1.5mm Screw 0.6mm Thickness Skull Mini Bone Plate
Trauma Implant Micro Straight Maxillofacial Trauma Plate 1.5mm Screw 0.6mm Thickness Skull Mini Bone Plate
Trauma Implant Micro Straight Maxillofacial Trauma Plate 1.5mm Screw 0.6mm Thickness Skull Mini Bone Plate
Trauma Implant Micro Straight Maxillofacial Trauma Plate 1.5mm Screw 0.6mm Thickness Skull Mini Bone Plate
Trauma Implant Micro Straight Maxillofacial Trauma Plate 1.5mm Screw 0.6mm Thickness Skull Mini Bone Plate

Trauma Implant Micro Straight Maxillofacial Trauma Plate 1.5mm Screw 0.6mm Thickness Skull Mini Bone Plate

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Sterilization:Without Ethylene Oxide
Group:Adult
Logo Printing:OEM Available
Color:Customized
Certificate:CE/ISO
Class:Class III
Length:16/24/32/40/48/56mm
Ti Grade:Grade.3 Zapp Medical Pure Titanium
Indication:Maxillofacial Surgery
Specification:4/6/8/10/12/14 holes
HS Code:9021100090
Capacity:1000 pieces/Week
Material:Pure Medical Titanium
Origin:Jiangsu
Trademark:Gather

Detailed Product Photos

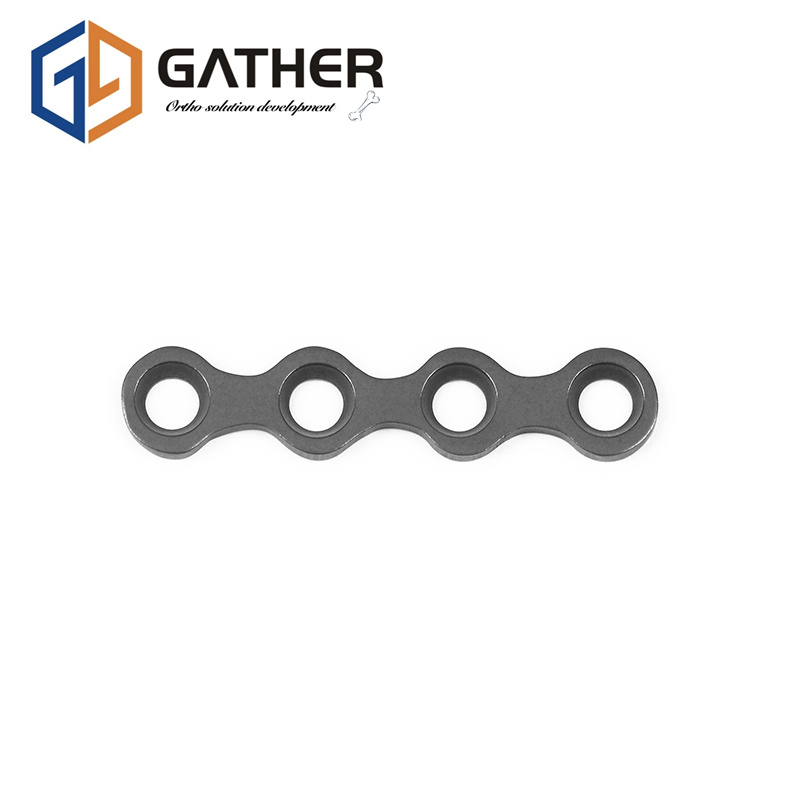

Maxillofacial Trauma Plate

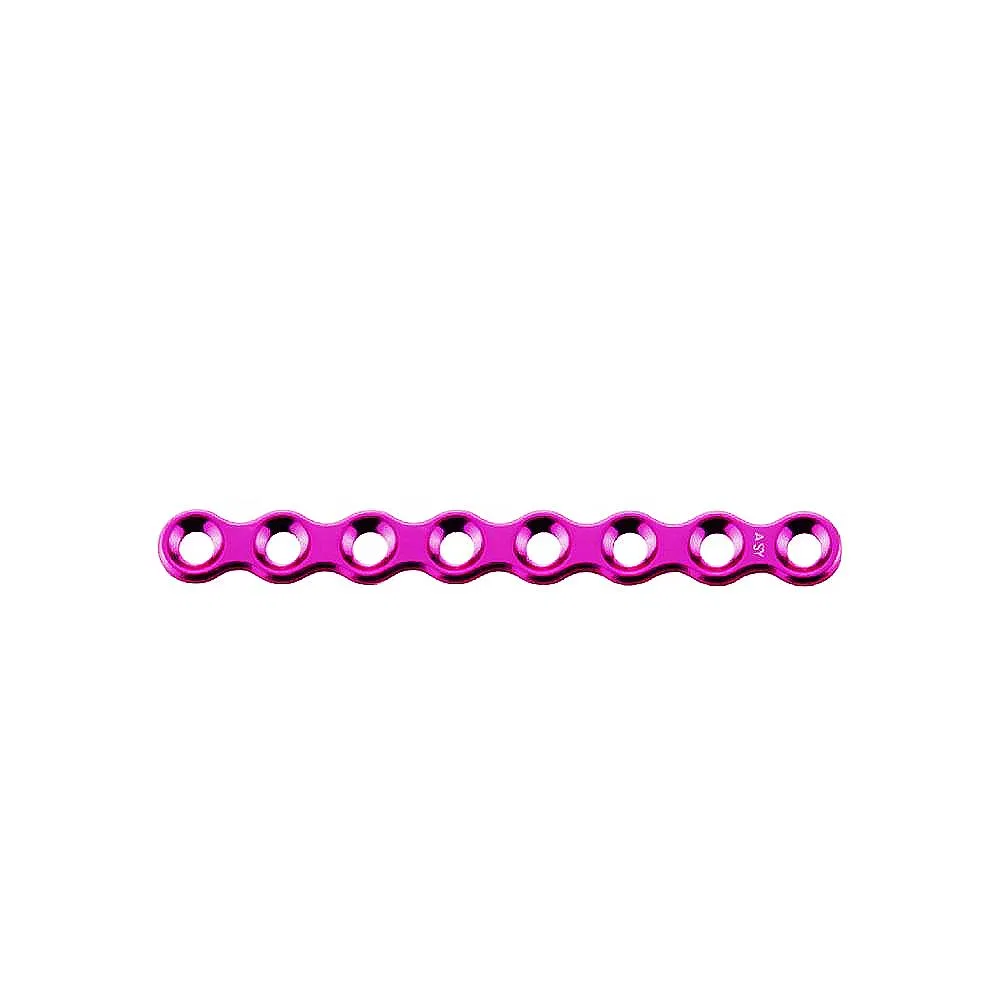

Titanium Bone Plate Detail

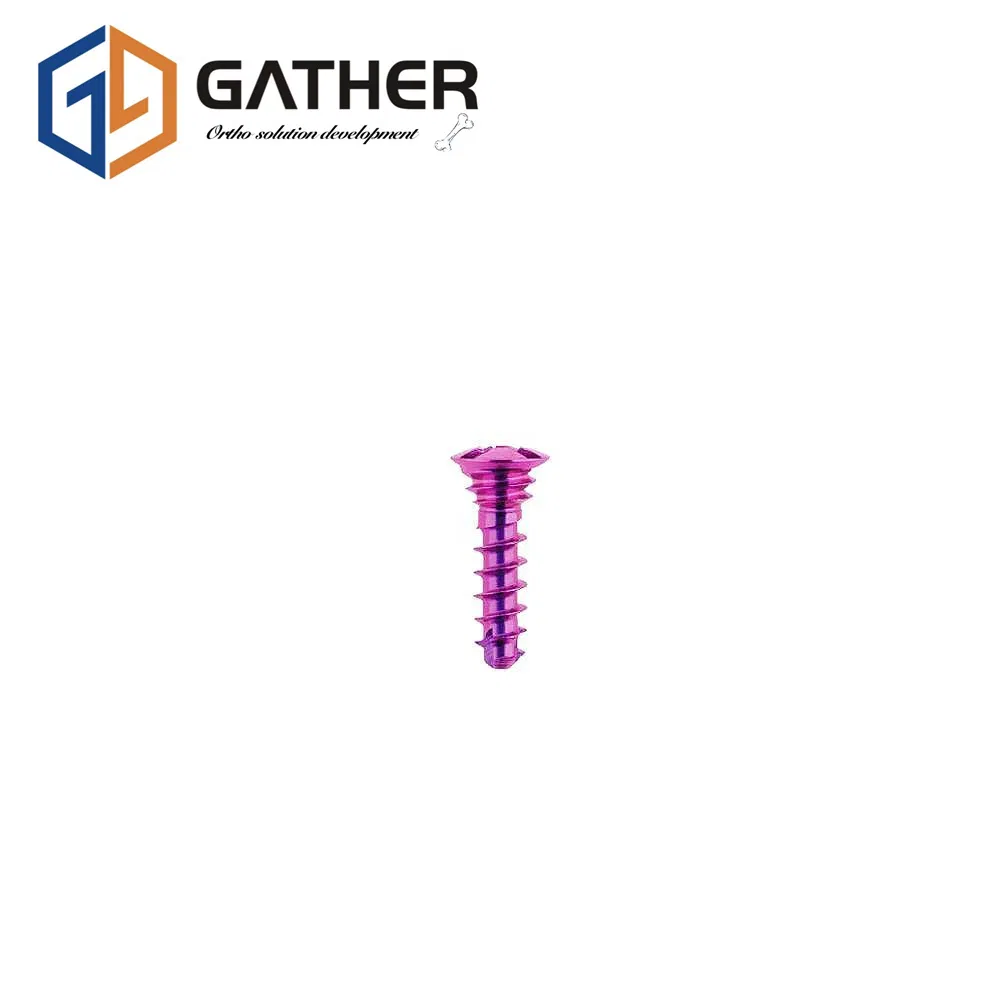

1.5mm Screw Plate System
Screw Size: 1.5mm Self-Tapping Screw & 1.5mm Self-Drilling Screw.
Name Orthopedic Medical Implant Maxillofacial Micro Titanium Straight Plate
Material Pure medical titanium (Grade 3)
Specifications 4 / 6 / 8 / 10 / 12 / 14 Holes; Thickness: 0.6mm
Indications Front part, nasal part, pars orbitalis, pars zygomatica, maxilla region, pediatric craniofacial bone
Certification CE / ISO9001 / ISO13485

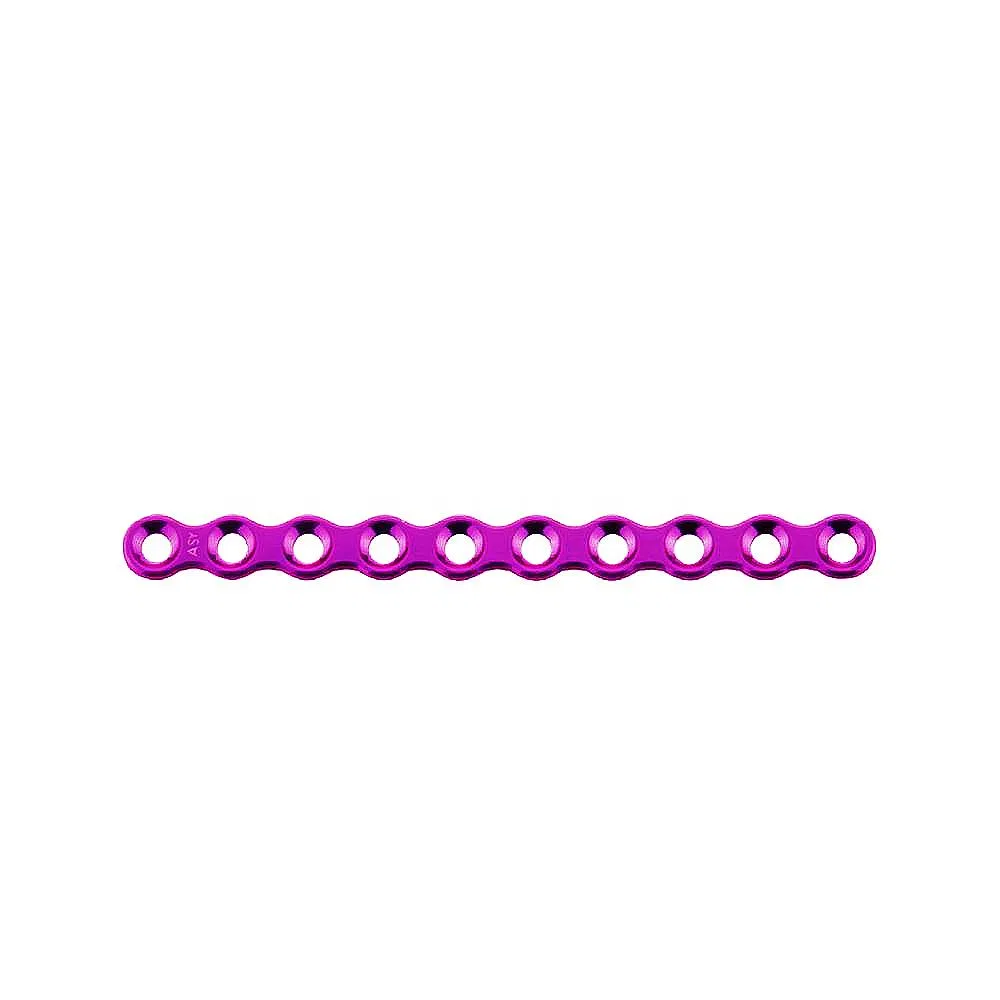

Micro Straight Plate

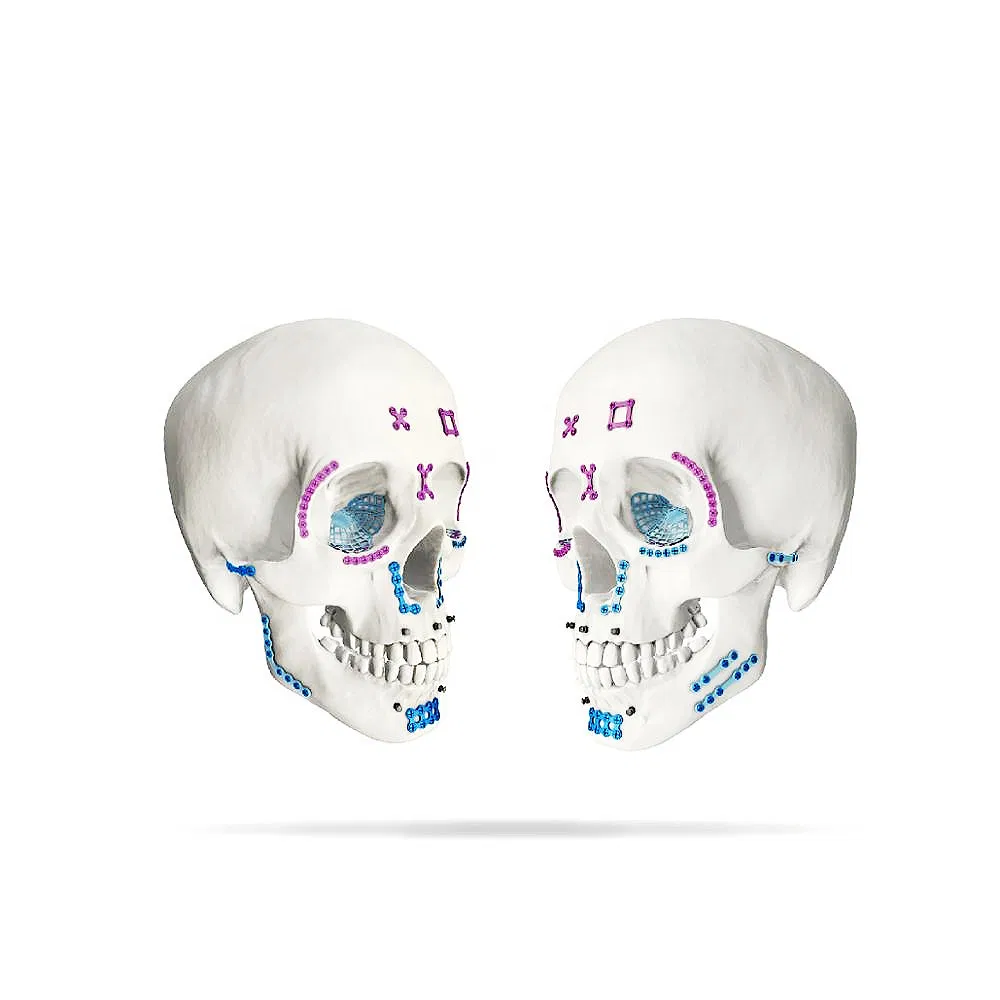

Maxillofacial Surgery Illustration

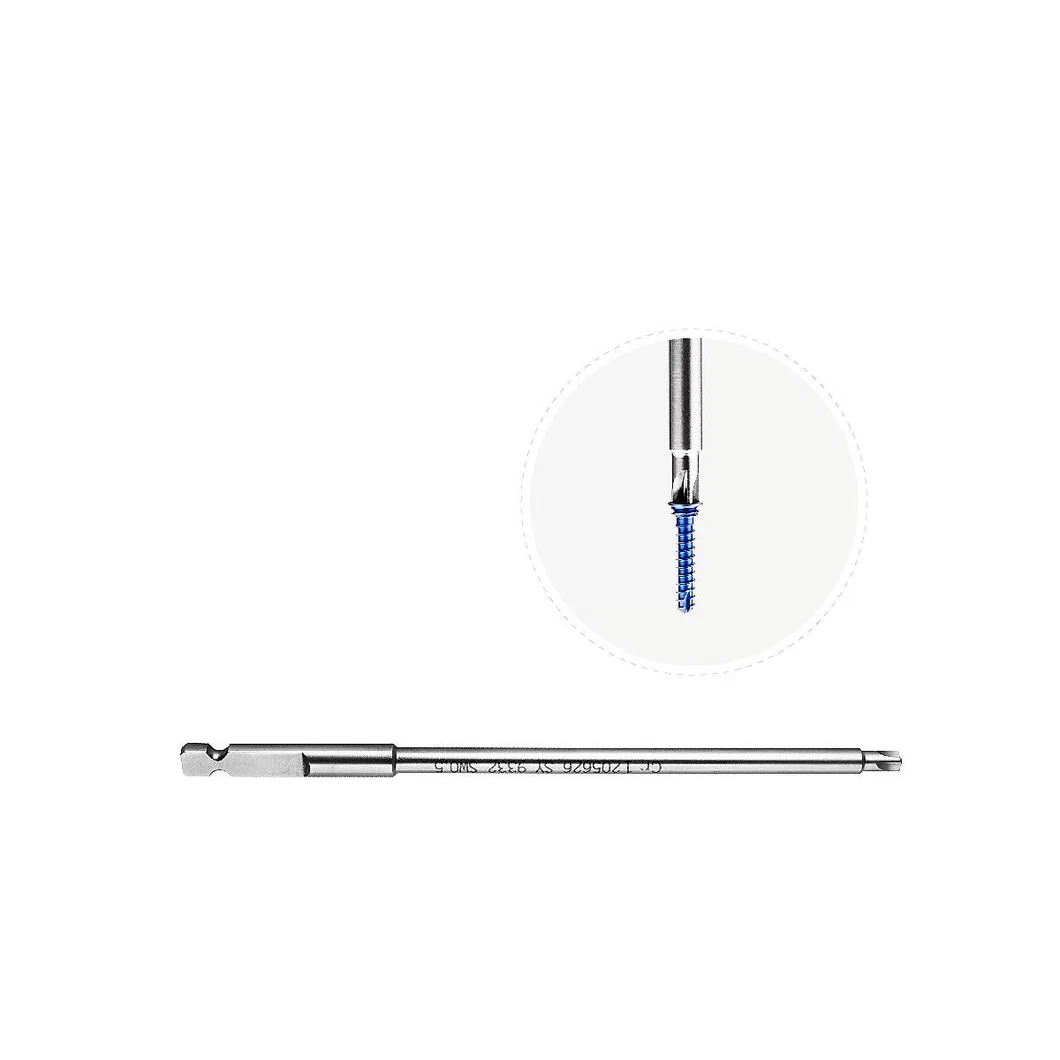

Full System Overview

Full Range of Maxillofacial Products

Available Plate Systems

  • 0.6mm System (Amaranth): Use with 1.5mm self-drilling/tapping/locking screws.
  • 0.8mm System (Baby Blue): Use with 2.0mm self-drilling/tapping/locking screws.
  • 1.0mm System (Dark Blue): Use with 2.0mm self-drilling/tapping/locking screws.
  • 1.4mm Locking System (Baby Blue): Heavy-duty maxillofacial support.
  • Orthognathic System: 0.6mm / 0.8mm / 1.0mm thicknesses available.
  • 2.4mm Reconstruction (Yellow): Use with 2.4mm regular and locking screws.
  • Anatomical Orbital Floor Plate: 0.6mm and 0.8mm options.

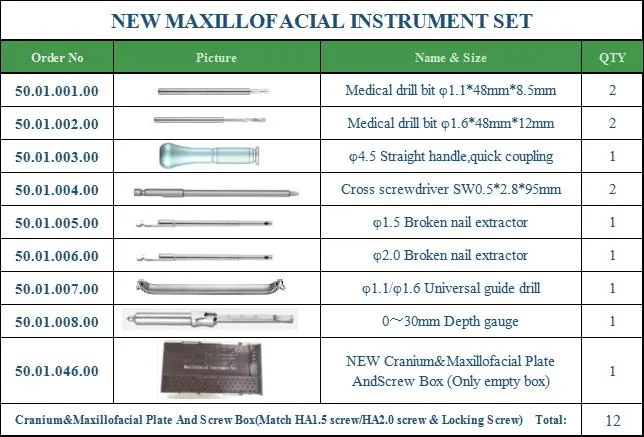

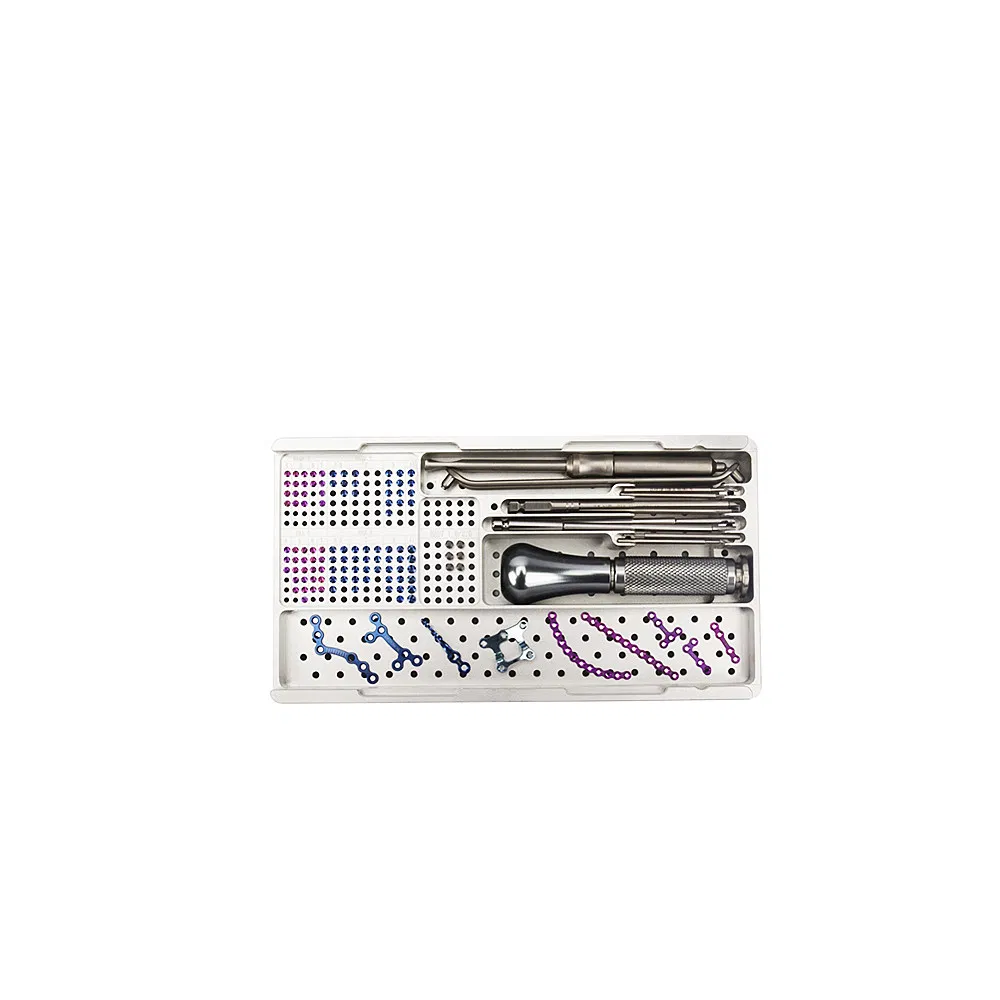

Instrument Set

Core Advantages

1
German ZAPP Pure Titanium: High biocompatibility and uniform grain size. MRI/CT compatible.
2
Anodizing Technology: Enhanced surface hardness and superior abrasive resistance.
3
Concave Hole Design: Plates and screws combine closely with lower profiles to reduce soft tissue irritation.
4
Soft Edge Surface: Specifically designed to minimize stimulation of surrounding soft tissue.
5
Color Identification: Different colors help clinicians operate more conveniently and accurately.
6
Certified Quality: Fully CE & ISO certified for international medical standards.

Adequate Inventory - Rapid Shipping within 1-5 Days!

Related Products
Workshop
Certificates
Our Team
Packaging

Frequently Asked Questions

What is the grade of titanium used in these plates?
We use Grade 3 ZAPP Medical Pure Titanium from Germany, which offers excellent biocompatibility and uniform mechanical properties.
Are the maxillofacial plates compatible with MRI or CT scans?
Yes, the pure titanium material is non-magnetic and will not interfere with or affect MRI or CT examination results.
How does the "Concave Design" benefit the surgery?
The concave design allows the screw head to sit more flush with the plate, creating a lower profile that reduces irritation and trauma to the overlying soft tissues.
What is the lead time for orders?
We maintain an adequate inventory and typically ship standard products within 1 to 5 business days.
Can I request customized logo printing (OEM)?
Yes, we provide OEM services including customized logo printing based on your specific requirements.
Are these products certified for international use?
Absolutely. Our maxillofacial systems are fully certified with CE, ISO9001, and ISO13485, meeting global medical device standards.
