Mini Fragment Locking Plate Bone Graft Surgical Trauma Instrument Sets

1 / 5

Mini Fragment Locking Plate Bone Graft Surgical Trauma Instrument Sets

Customization:	Available
Certification:	FDA, ISO, CE, ISO9001
Disinfection:	Without Disinfection

Send Inquiry

Product Description

Basic Information

Model NO.

CanMLP

Color

Transparent

Application

Trauma

Material

Titanium

Certificate

ISO13485, ISO9001

Transport Package

Carton

Specification

Customized

HS Code

9021100000

Production Capacity

1000/Month

Product Description

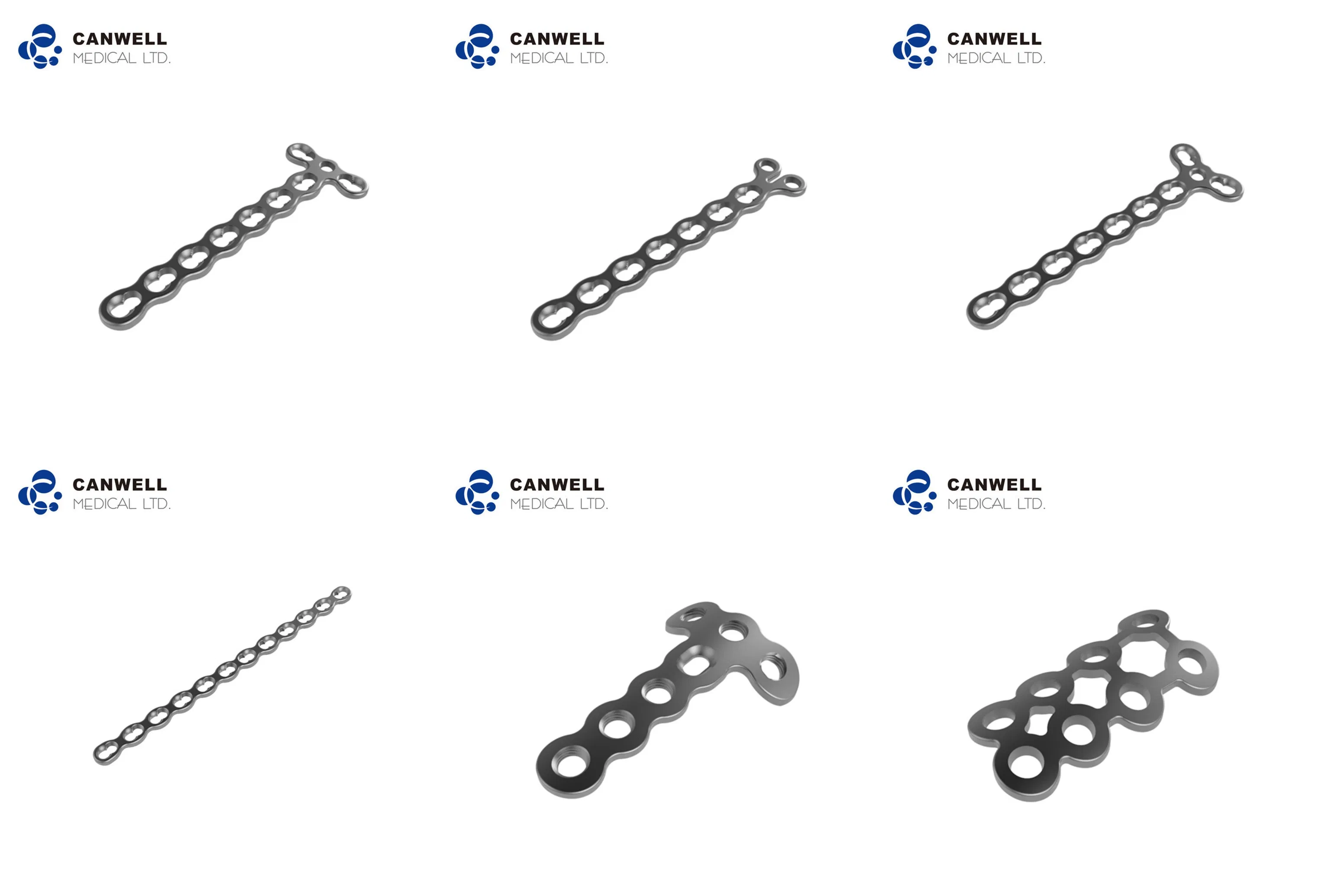

Surgical Titanium Locking Plate, Miniature Titanium Plate, Mini Plates

Matching Screw: 2.0mm Locking Screw, 2.0mm Cortex Screw, 2.4mm Locking Screw, 2.4mm Cortex Screw

The Mini-Plate System contains 2.0mm/2.5mm implants and related instruments required for inserting plates. The shape, design, and material properties of the plates take into account the demands for high fatigue strength, optimized load transfer, and ease-of-use. Implants are available in Titanium.

Specification	Details
Product Name	Surgical Instrument Set for Mini Locking Plate
Material	Made of medical grade materials (Titanium/Stainless Steel)
Color	Customized
Standard	ISO 13485, ISO9001, QSR820, CE

Features & Benefits

Providing 2.0mm, 2.5mm implant specifications

Low-profile plates reduce soft tissue irritation

Anatomically shaped designs reduce bending requirements

Titanium implants for greater biocompatibility

Stardrive recess allows improved torque transmission

Increased resistance to stripping relative to hexagonal recess

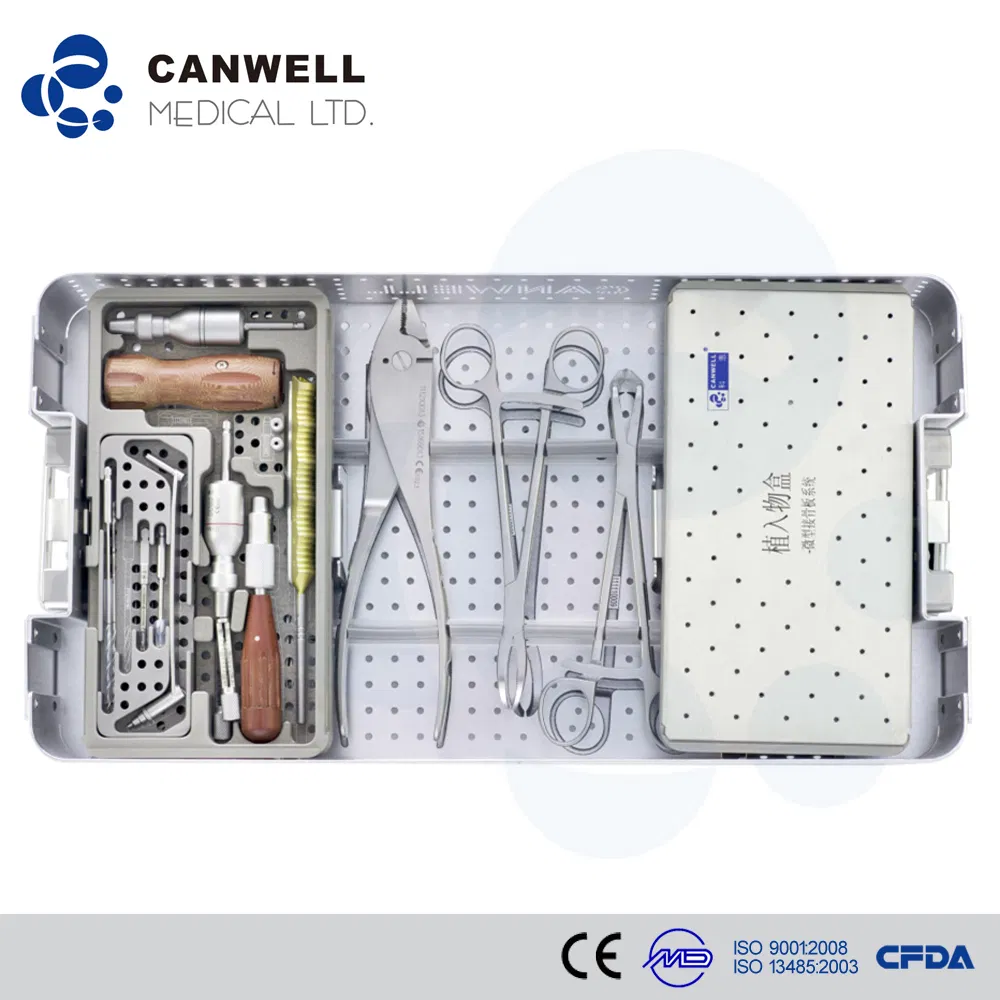

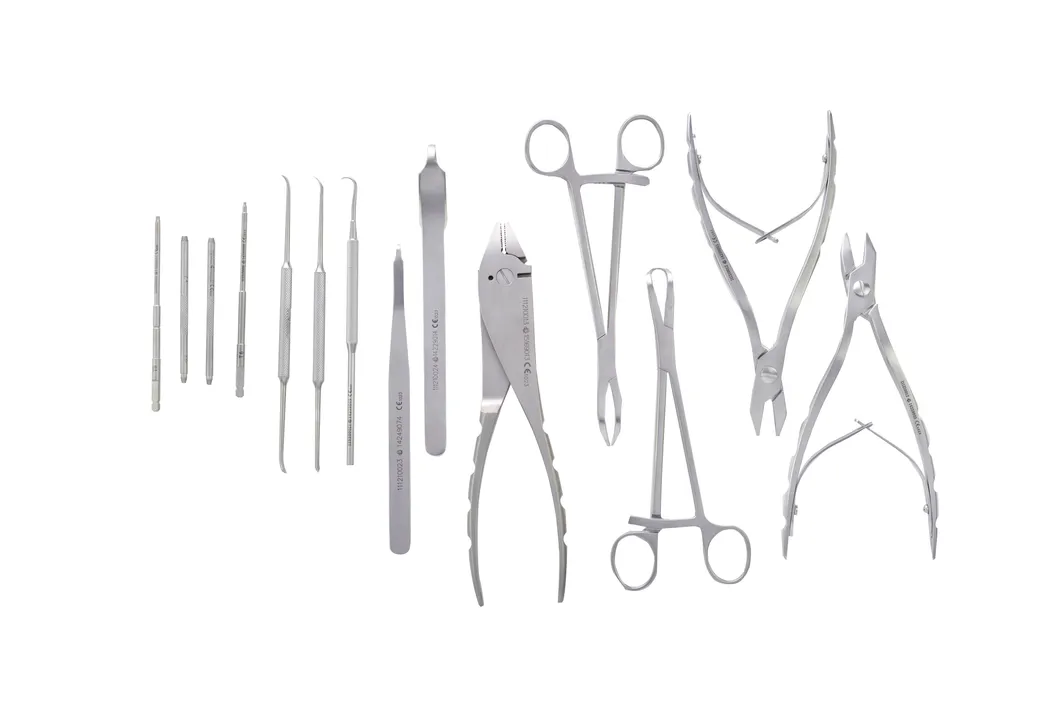

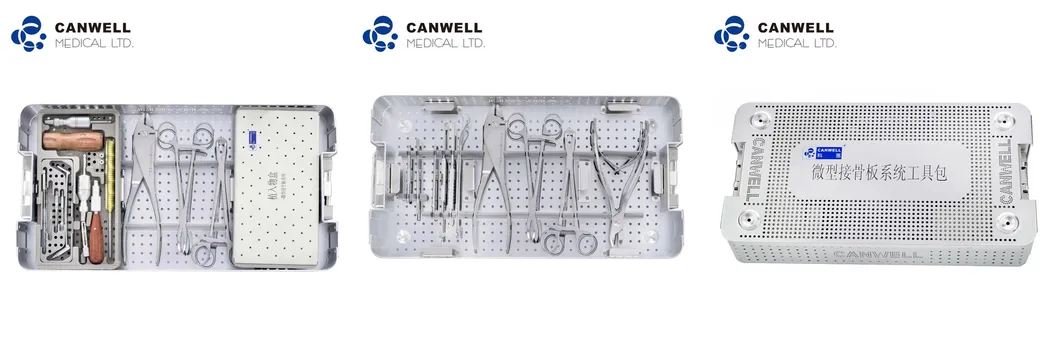

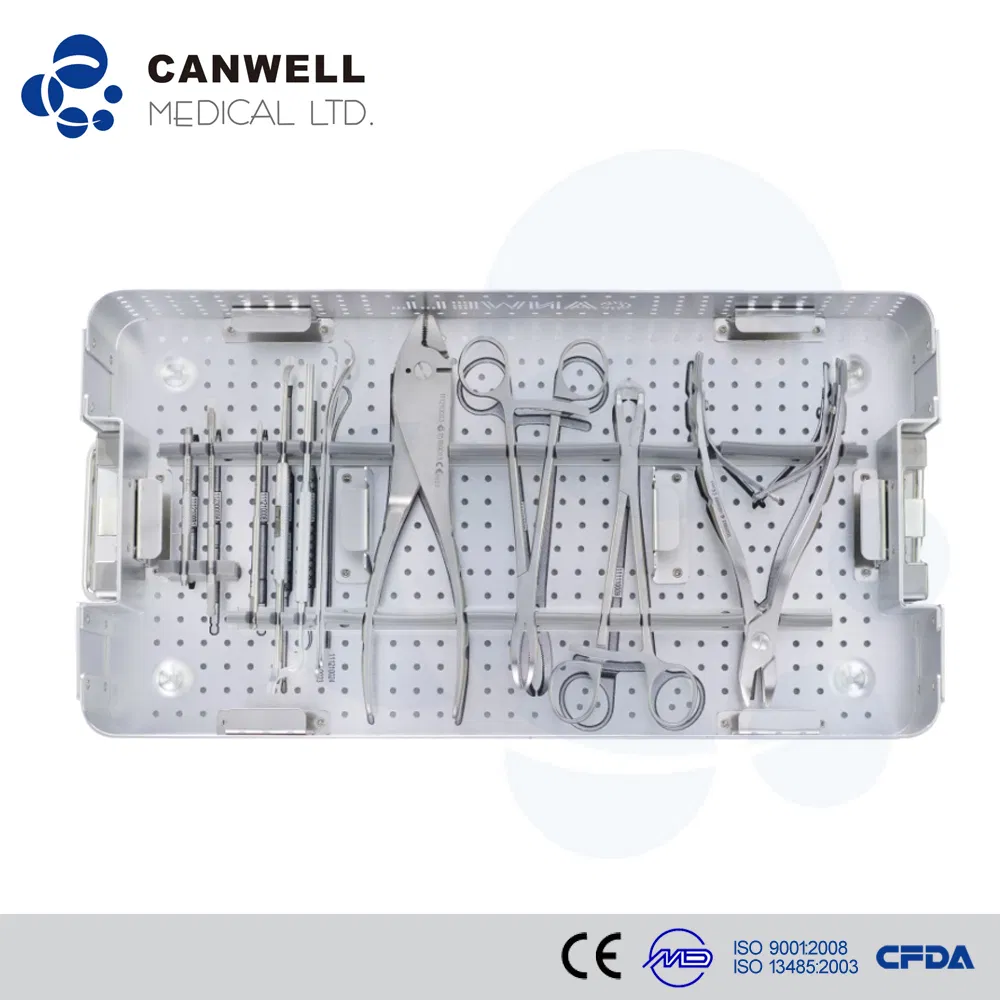

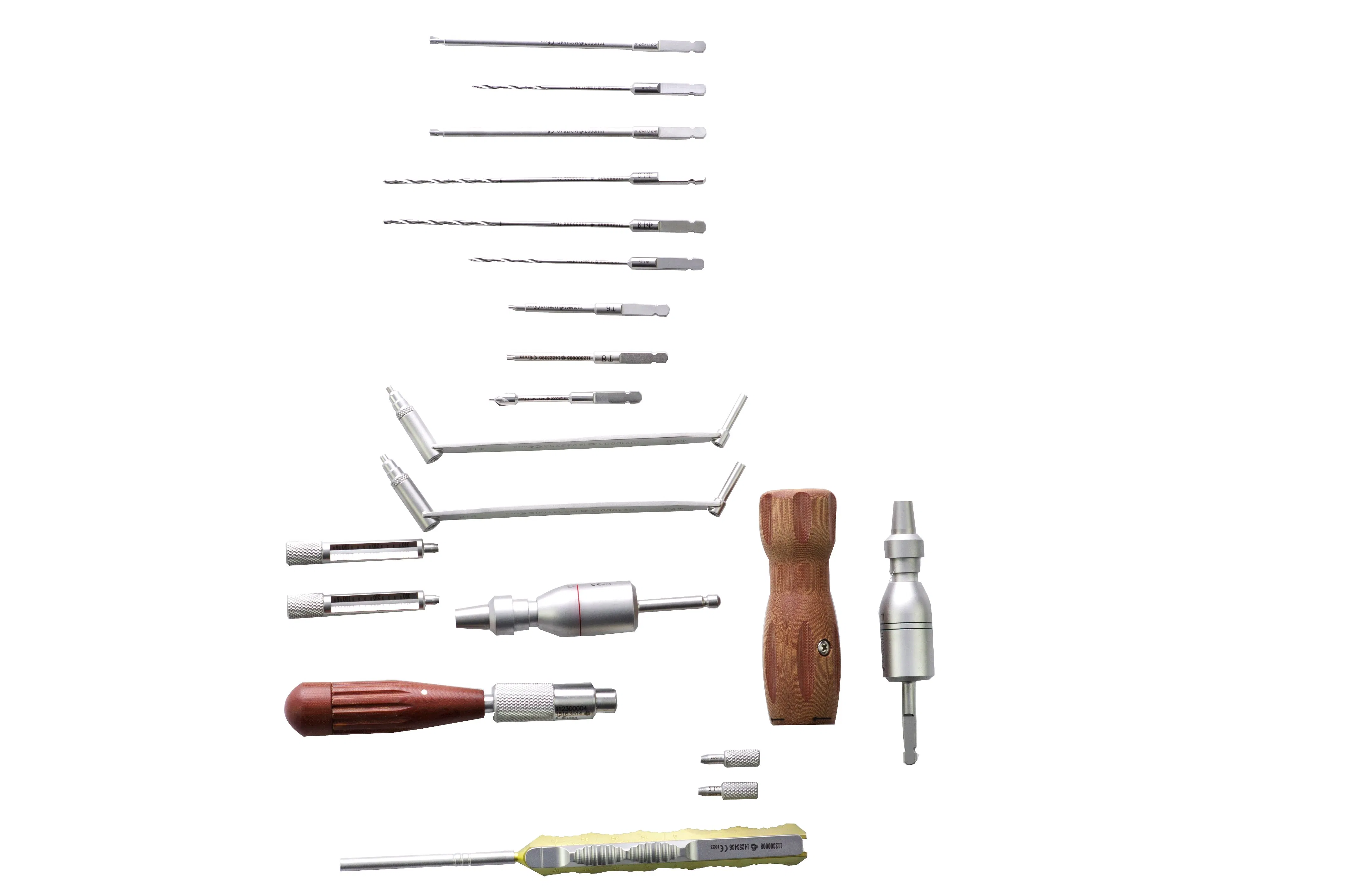

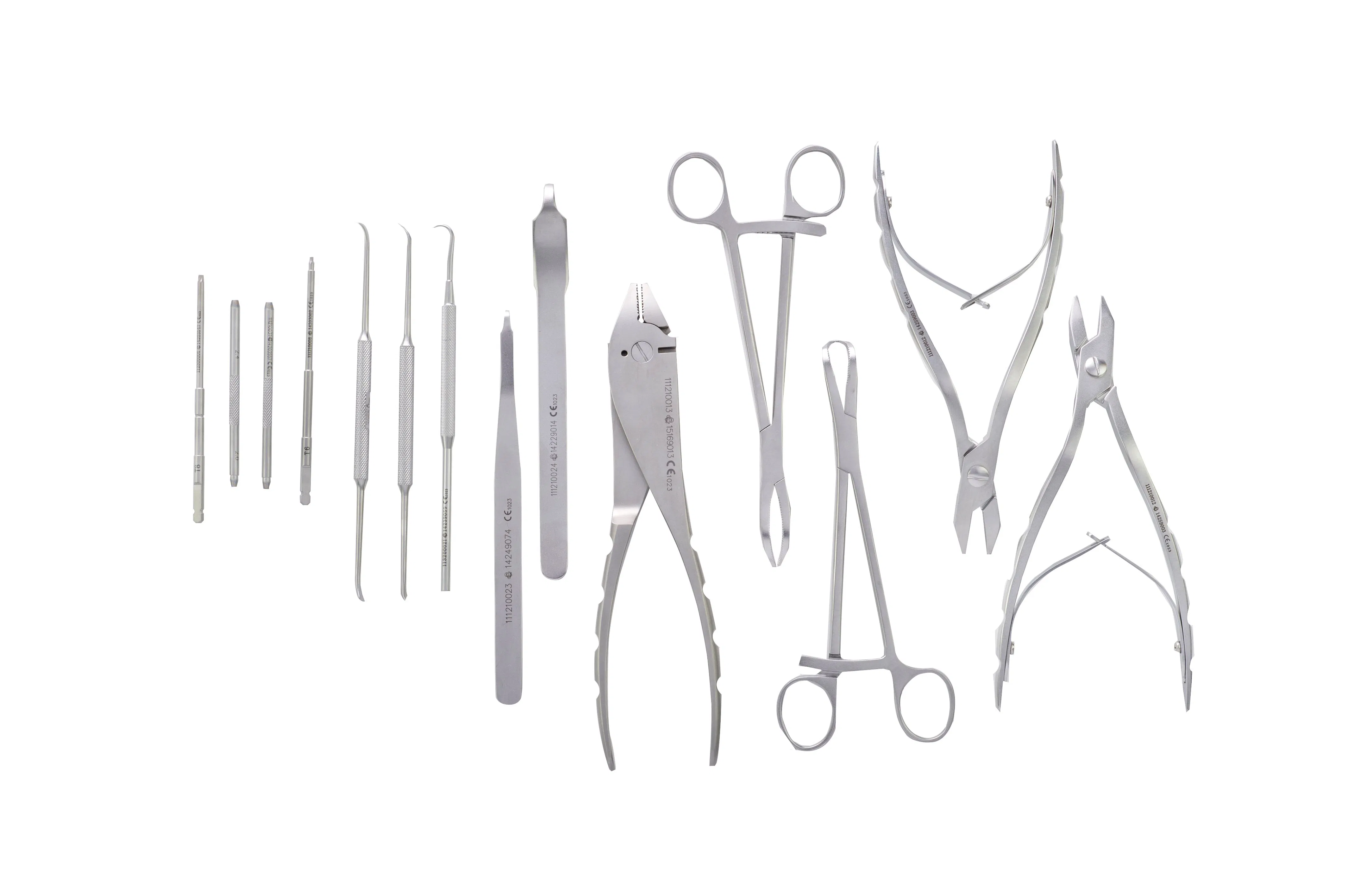

Instrument Set List

P.N	Description	Qty.
113200021	Sharp Hook	1
111210002	LCP Drill Sleeve 2.0	2
111210003	Drill Sleeve 2.0	1
111210004	Drill Bit (φ1.5)	2
111210007	Stardrive screwdriver-2.0	1
111210013	Cutting Pliers	1
111210014	Torque Limiter 0.4Nm	1
112300008	Depth Gauge	1
112300010	Universal Drill Guide	1
111210031	LCP Plate Bender	2
111219600	Instrument Tray (CanMLP)	1

Related Implants

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a professional manufacturer specializing in orthopedic implants and instruments with decades of industry experience.

What quality certifications do your products have?

All our surgical products are approved by CE, ISO13485, and ISO9001 standards to ensure the highest safety and quality.

What is the typical delivery time for orders?

Generally, it takes 7-15 days if stock is available, and 30-45 days for regular production depending on order quantity and requirements.

Do you provide samples for testing?

Yes, we can accept sample orders to allow for quality verification before bulk purchasing.

Do you offer OEM or customized services?

Yes, we offer comprehensive OEM services. Products and trademarks can be made-to-order based on your specific clinical requirements.

What are the main materials used in your plates?

We primarily use medical-grade Titanium for its superior biocompatibility and fatigue strength, as well as high-quality Stainless Steel for specific instruments.
