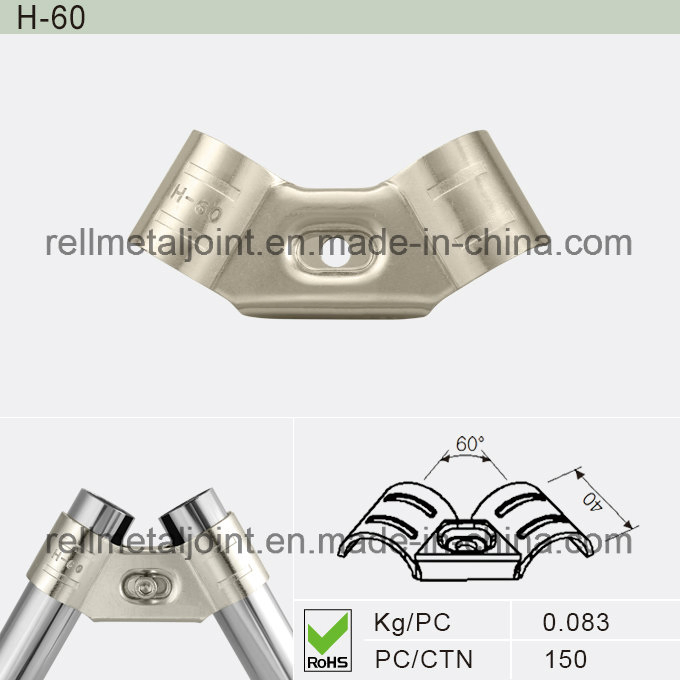

Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
1 / 5
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)

Nickel Plated Joint and Pipe Racking System (H-60)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Product Information
Model NO.
H-60SPCC25NP-N
Product Name
Metal Joint
Connection Method
Fastener
Material Process
Stamped SPCC Steel
Surface Treatment
Nickel Plated
Wall Thickness
2.5mm
Compatible Diameter
28.0mm
Certification
GB, RoHS, SGS
Application
Worktable/Trolley/Rack/Production Lines
Production Capacity
100,000 PCS/Day
Product Visuals
Nickel Plated Joint and Pipe Racking System (H-60)
Key Features & Benefits

This high-quality metal joint is designed for modular pipe and joint racking systems. It provides a robust, flexible, and scalable solution for lean manufacturing environments.

🔄
Fully Reusable
⚙️
Highly Flexible
🛠️
Simple Operation
📈
Easy Extensibility

The Nickel Plated joint is ideally used with Φ28mm SUS pipes, aluminum alloy pipes, or ABS/PE coated pipes, offering high glossy finish and superior loading capacity.

Technical Specifications
Category Specification Details Testing & Standards
Material SPCC Steel (Q/TB201-2011) Tension Test: ≥80Kg
Surface Finish Nickel Plated Salt-Spray Test: ≥24h
Net Weight 0.083 Kg / Piece RoHS Compliant: Yes
Packing 150 Pieces / CTN CTN Size: 280*225*160 mm
Pallet Config 100 CTN / Pallet Pallet Size: 1200*800 mm
Frequently Asked Questions
What type of pipes are compatible with these metal joints?
These joints are specifically designed for standard Φ28mm pipes, including stainless steel (SUS), aluminum alloy, and ABS/PE coated pipes.
How durable is the nickel-plated surface?
The nickel plating provides excellent corrosion resistance, having passed a professional salt-spray test for ≥24 hours, ensuring a high-gloss and long-lasting finish.
Can these joints be disassembled and reused?
Yes, one of the primary advantages of this system is its reusability. Joints can be easily tightened or loosened with fasteners to reconfigure your racks or trolleys.
What is the maximum load capacity for a single joint?
Under standardized testing (Q/RELL002-2012), the H-60 metal joint withstands a tension test of ≥80Kg.
Are these products compliant with international environmental standards?
Yes, our metal joints meet RoHS and SGS specifications, ensuring they are safe for use in various industrial and global environments.
