Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
1 / 3
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
Evans
Usage
Correct Deformities, Fracture Fixation
Package
Carton
Specification
30x23x2
Trademark
Redleaf
Origin
China

Product Description

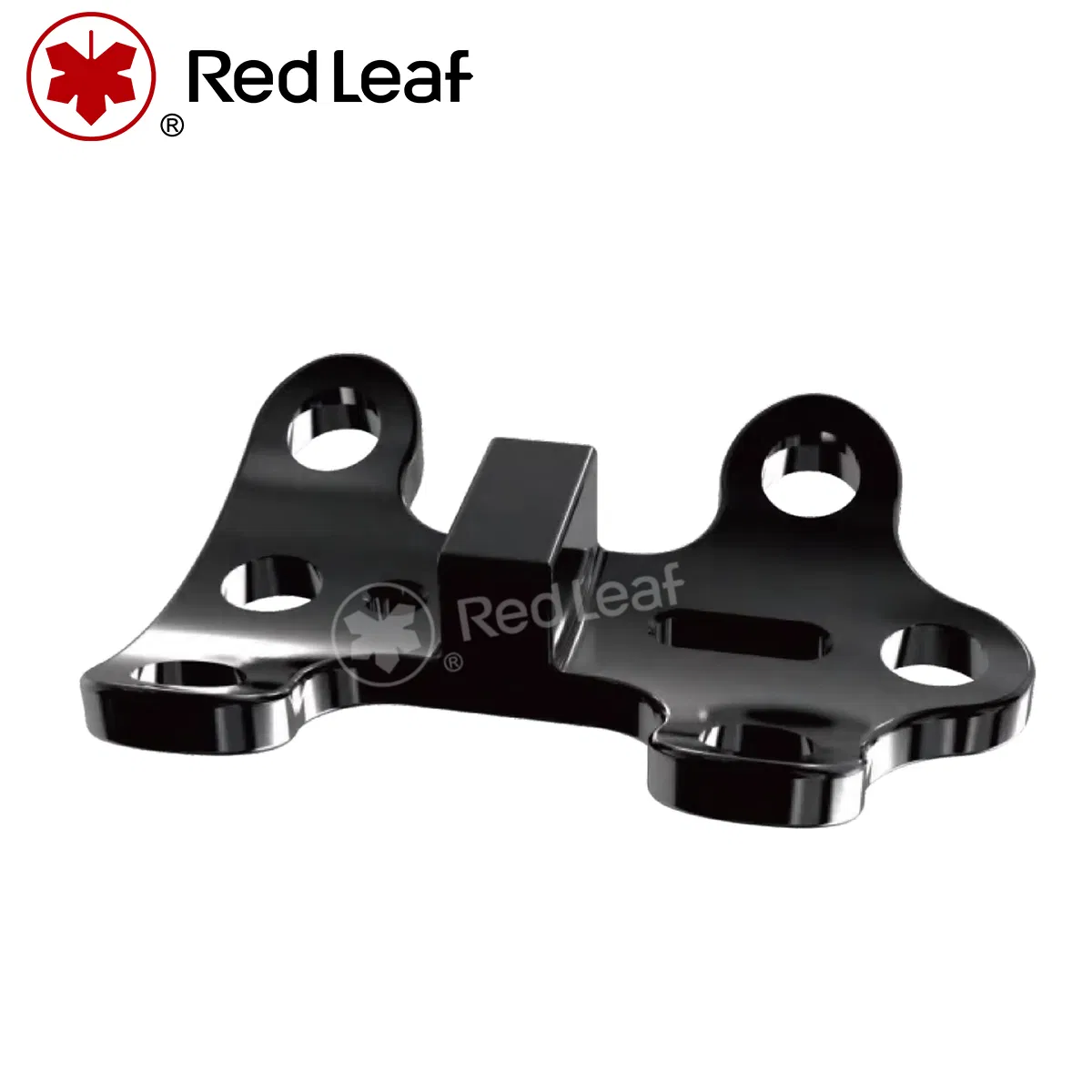

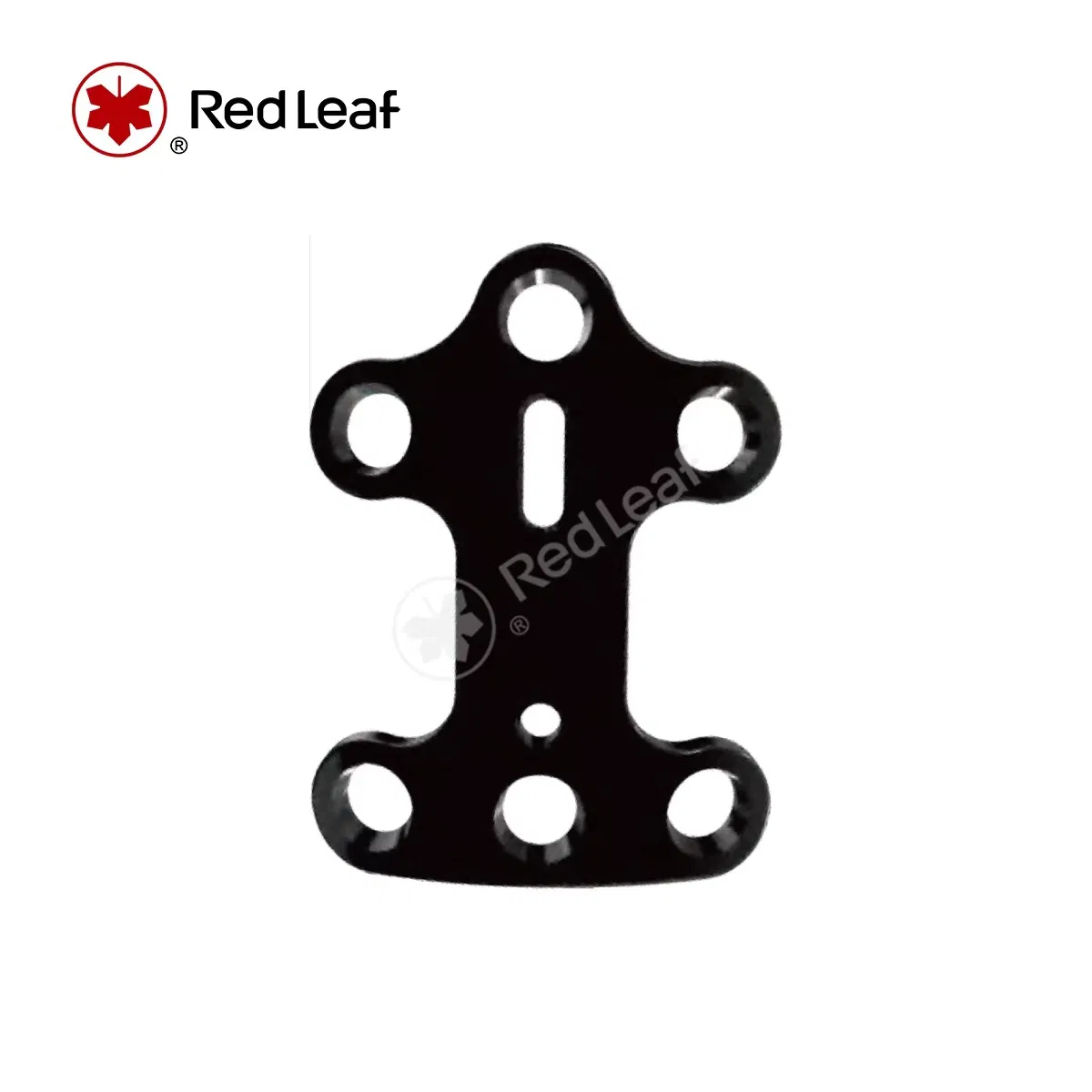

Orthopedic Outer Pillar Brace Overview

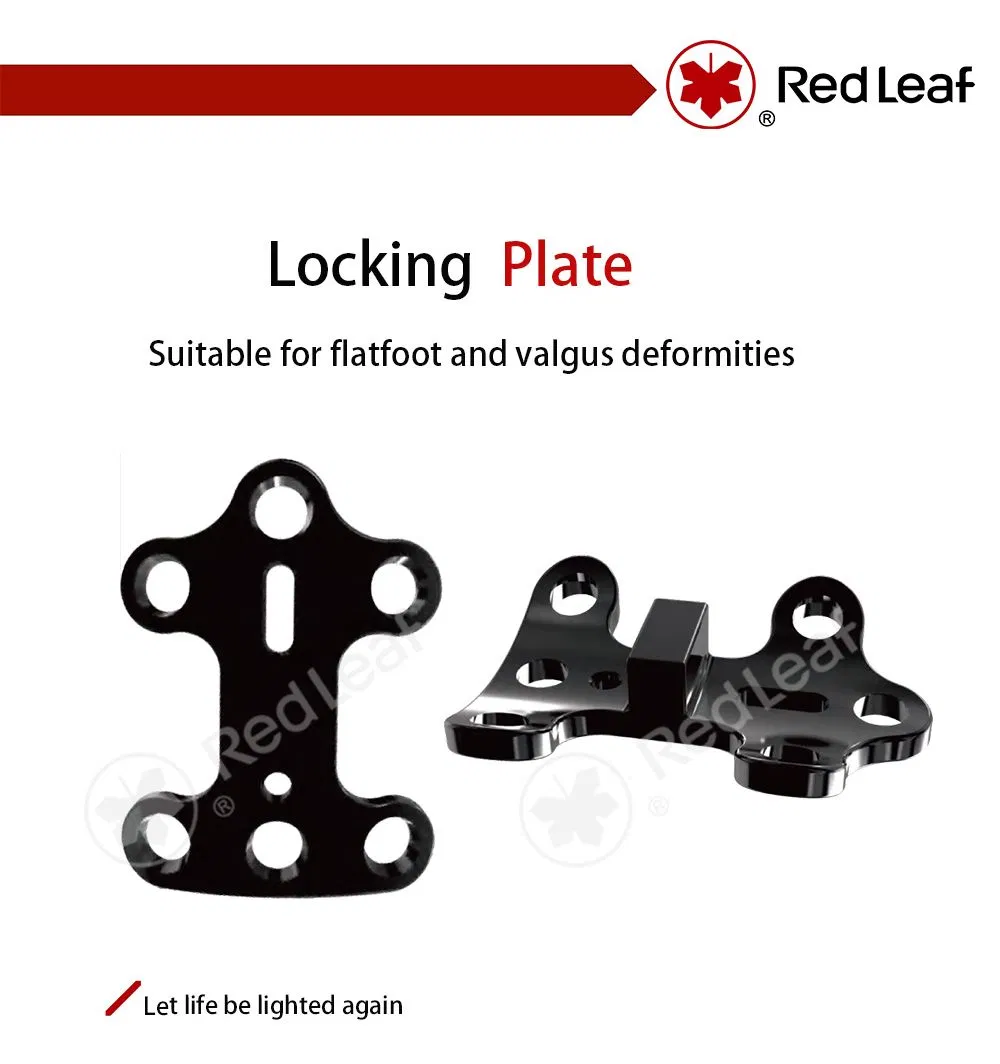

Product Detail View

Design Concept

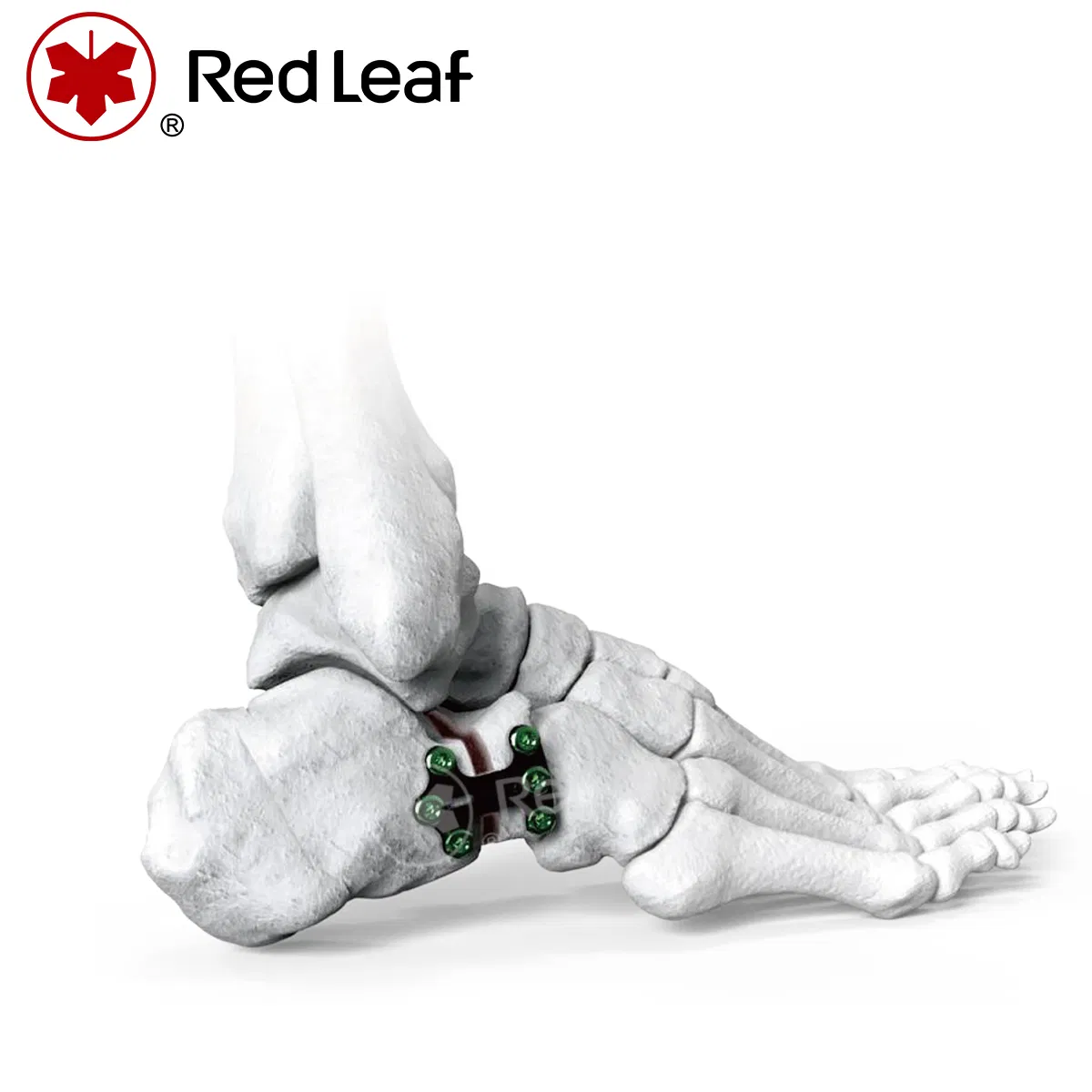

  • Suitable for flatfoot and valgus deformities
  • Transverse osteotomy of calcaneal neck
  • Distance between osteotomy surface and calcaneocuboid joint surface is 10-15mm

Key Points

  • Transverse osteotomy of the calcaneal neck, keeping 10-15mm away from joint surface
  • Precise cutting of inner cortex with swing saw, slowing down to protect soft tissue
  • Evenly spread openings to encourage bone ingrowth and prevent non-union

Screw Information

  • Matching screw: 3.5 self-tapping locking screw
  • Length range: 6-40mm (available in 2mm increments)
  • Kirschner wire: 1.9mm
  • Material: High-quality TC4 titanium alloy

Product Parameters

Specifications Length (mm) Width (mm) Thickness (mm) Step Width (mm) Cushion Block Height (mm)
Big 36.0 23.0 2.0 6/8/10 6/8/10
Middle 30.0 23.0 2.0 4/6/8 4/6/8
Small 26.0 23.0 2.0 2/4/6 2/4/6
Specification diagram 1 Specification diagram 2
Technical drawing Product application Clinical usage

Frequently Asked Questions

What is the primary clinical application of this locking plate?
It is specifically designed for flatfoot and valgus deformities correction surgery, primarily for transverse osteotomy of the calcaneal neck.
What materials are used in the manufacturing of the plate and screws?
The system is constructed from high-grade TC4 titanium alloy, ensuring excellent biocompatibility and mechanical strength.
What sizes of screws are compatible with the Evans plate?
The plate matches with 3.5mm self-tapping locking screws, with lengths ranging from 6mm to 40mm.
How many specification variants are available for the cushion block?
There are three main sizes (Big, Middle, Small) with varying cushion block heights ranging from 2mm to 10mm to accommodate different surgical needs.
What quality certifications does the product hold?
The products meet international standards and carry certifications such as CE, FDA, ISO9001, ISO13485, and EN1865.
What is the recommended surgical distance for the osteotomy?
The design concept recommends the osteotomy surface be positioned 10-15mm away from the calcaneocuboid joint surface.
