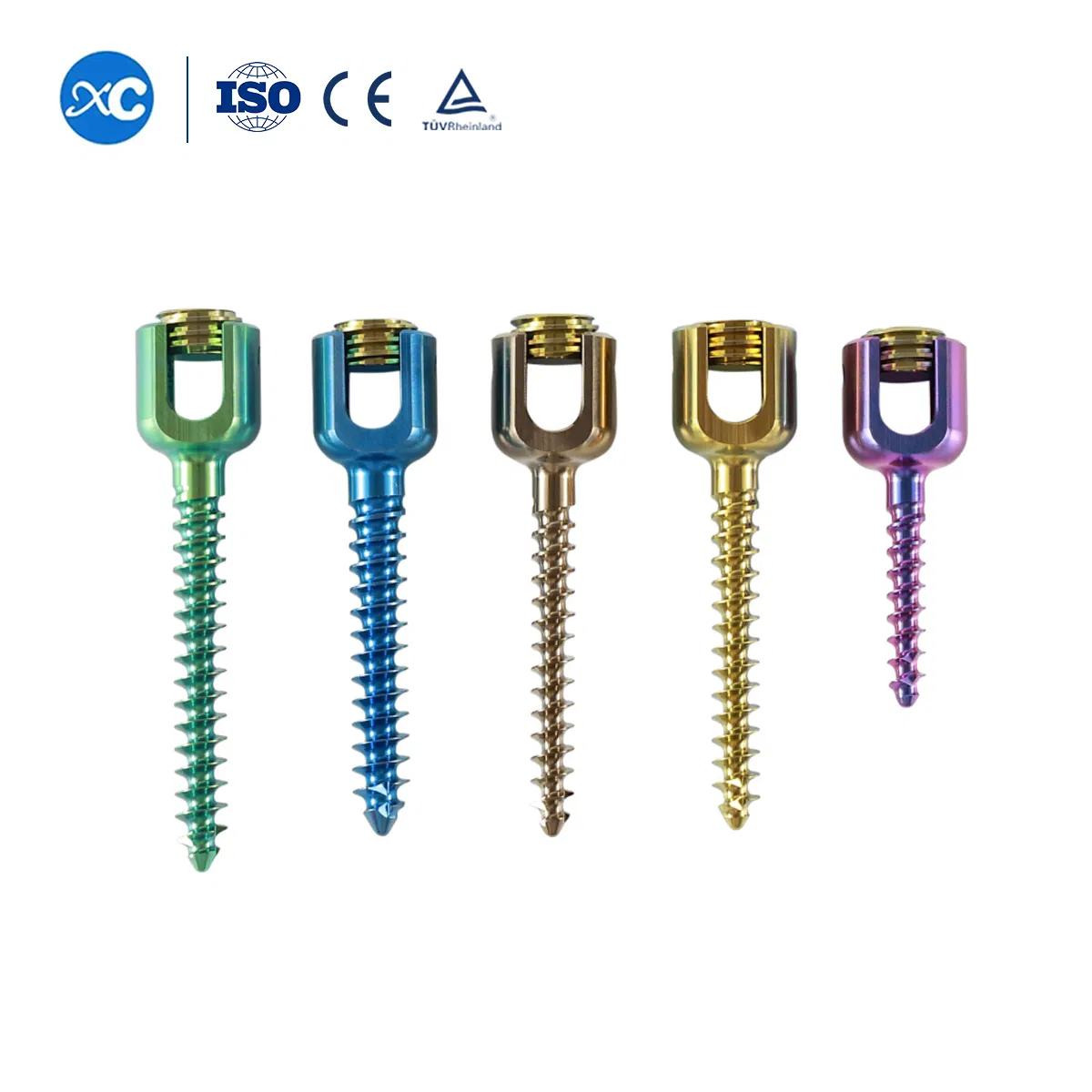

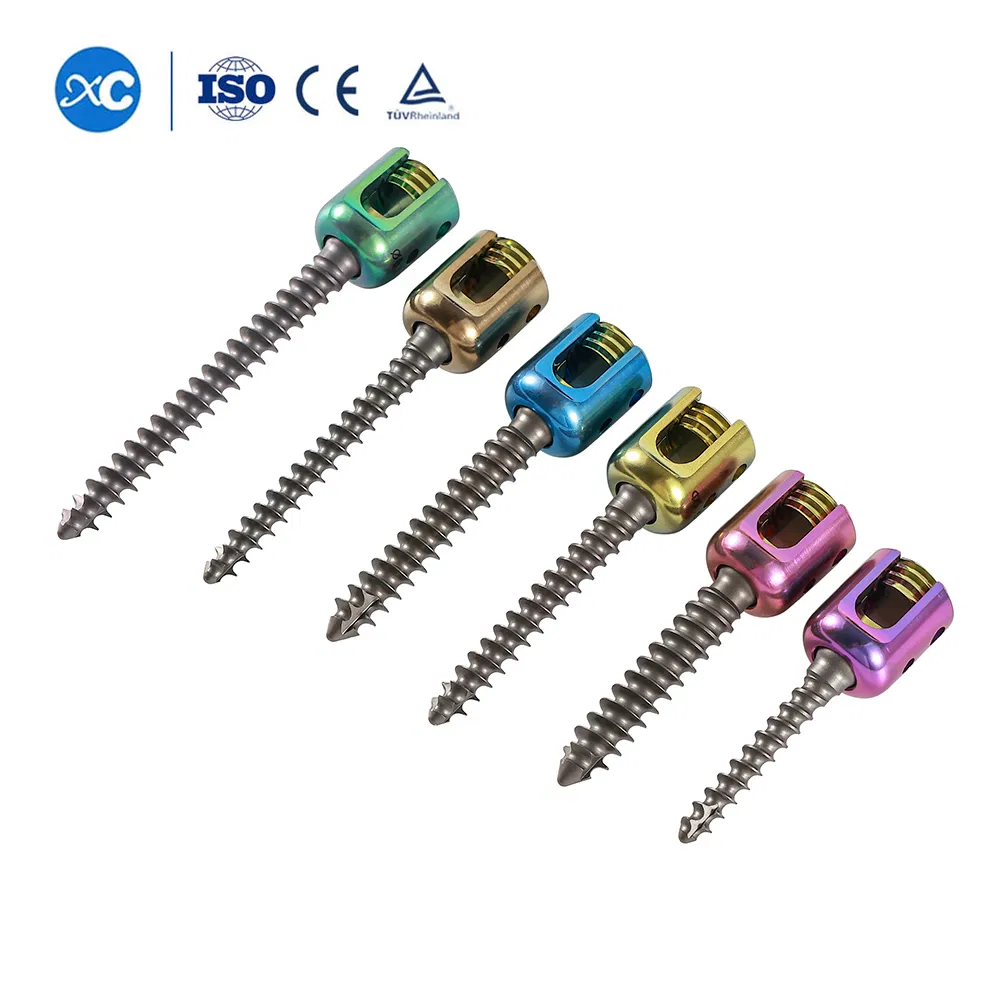

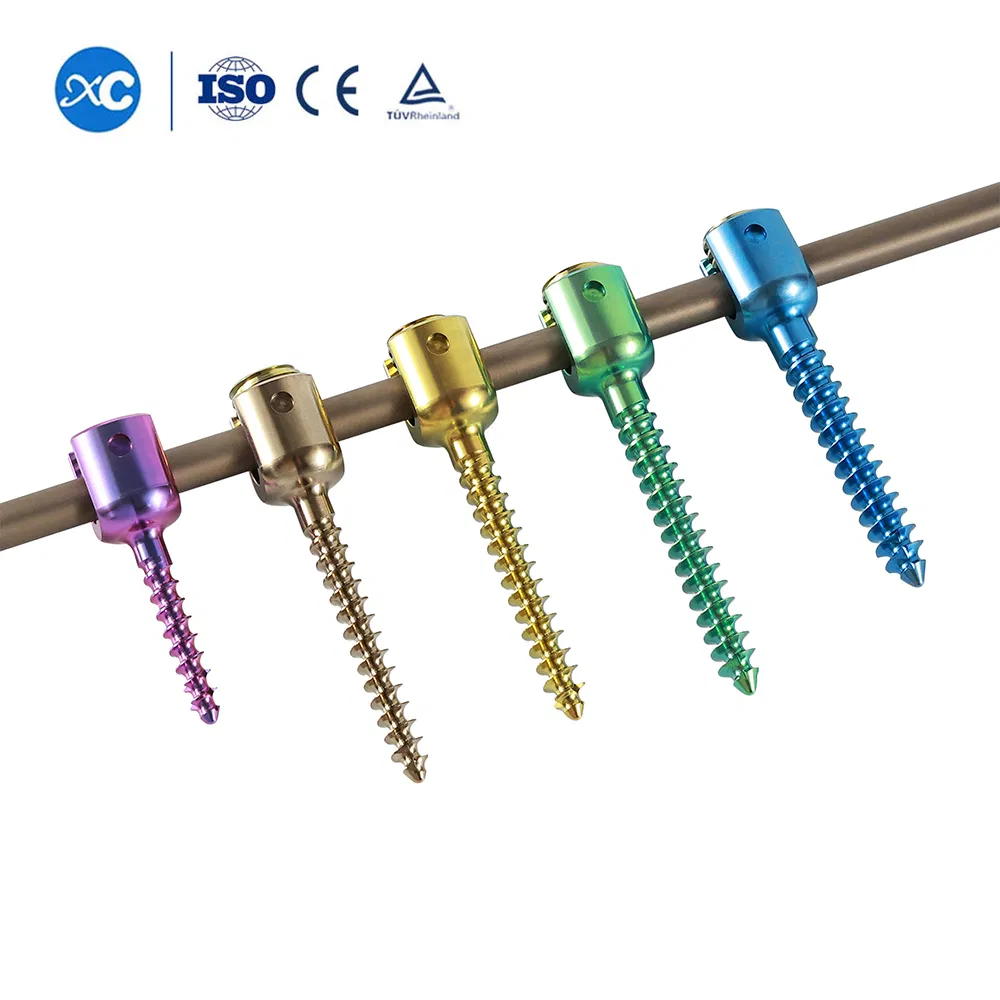

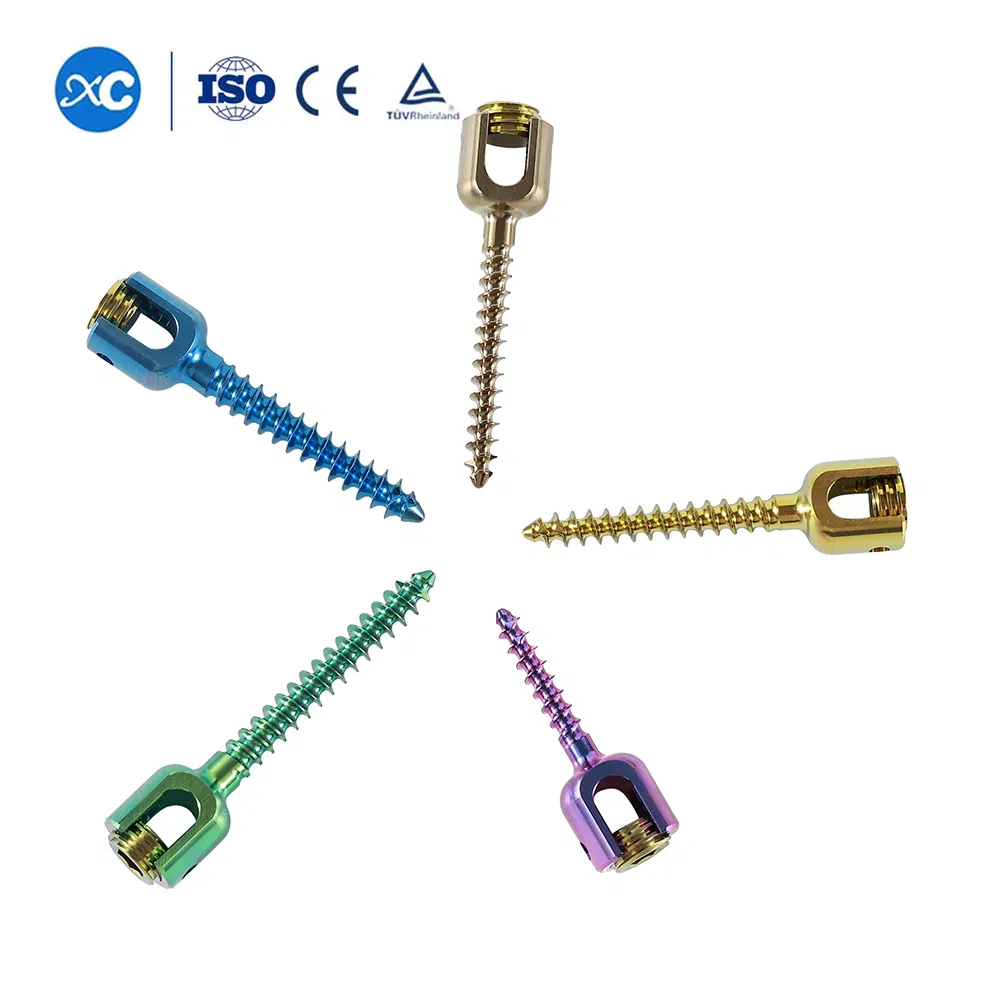

Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
1 / 5
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws

Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
6.0 Spinal Pedicle Screw System
Material
Titanium / Other
Quality Guarantee
One Year
Group
Adult
License
ISO13485/ISO9001
Functional Purpose
Implant Materials & Artificial Organs
MOQ
1 PCS
Origin
China
Spinal Pedicle Screw System Overview
Product Description
⚙️
Customizable Sets Available: We offer a full catalog for customized orthopedic sets. Multiple designs are available to meet various clinical needs.
Spinal Pedicle Screw System (6.0mm System) Specifications
Screw Types Monoaxial Pedicle Screw, Monoaxial Reduction Screw, Polyaxial Pedicle Screw, Polyaxial Reduction Screw, Iliac Pedicle Screw
Diameters (Φ) 4.5mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm, 7.5mm, 8.0mm
Rod Options Φ6.0mm Rods (Length 100mm - 400mm), Gradient Titanium Rods (3.5*100-6.0*200mm)
Components Crosslinks (60mm, 70mm, 80mm), Shifters
Pedicle Screw Detailed Features
✔
Comprehensive Screw Offering: Range from 4.0mm to 7.5mm.
✔
Superior Fixation: Multiple curve correction and derotation options with cortical/cancellous threads.
✔
Optimized Threadform: Self-tapping, dual-lead design for fast delivery and superior pull-out resistance.
✔
High Load Handling: Strong head-body handles heavy loads in kyphotic and scoliotic curves.
Key Product Features

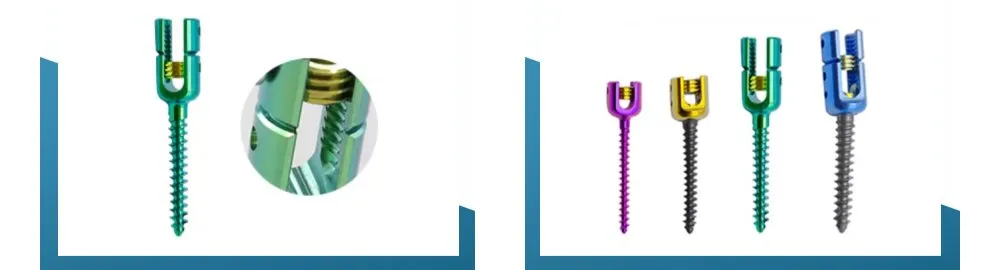

Feature Details 1
Feature Details 2
📍
Extended tabs with notches on both sides facilitate tab removal and provide a smooth break-off surface.
🎨
Color-coded screw sizes for easy identification during surgical operations.
📐

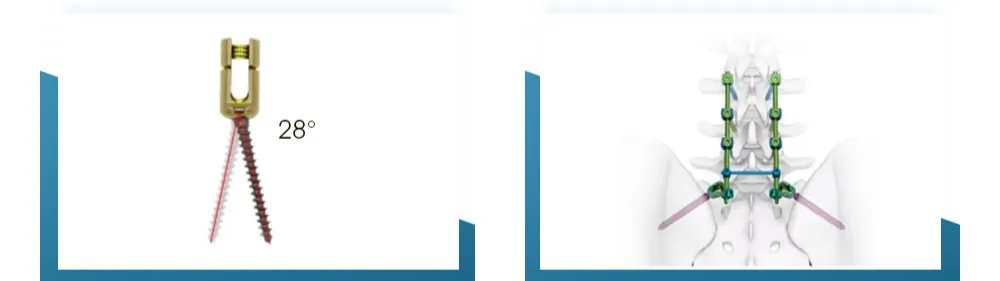

Maximum angle of polyaxial pedicle screw is 28 degrees, facilitating rod placement.
🔗
Large diameter Iliac Screws provided for sacroiliac reduction and internal fixation.
Accessory & Instrument Set

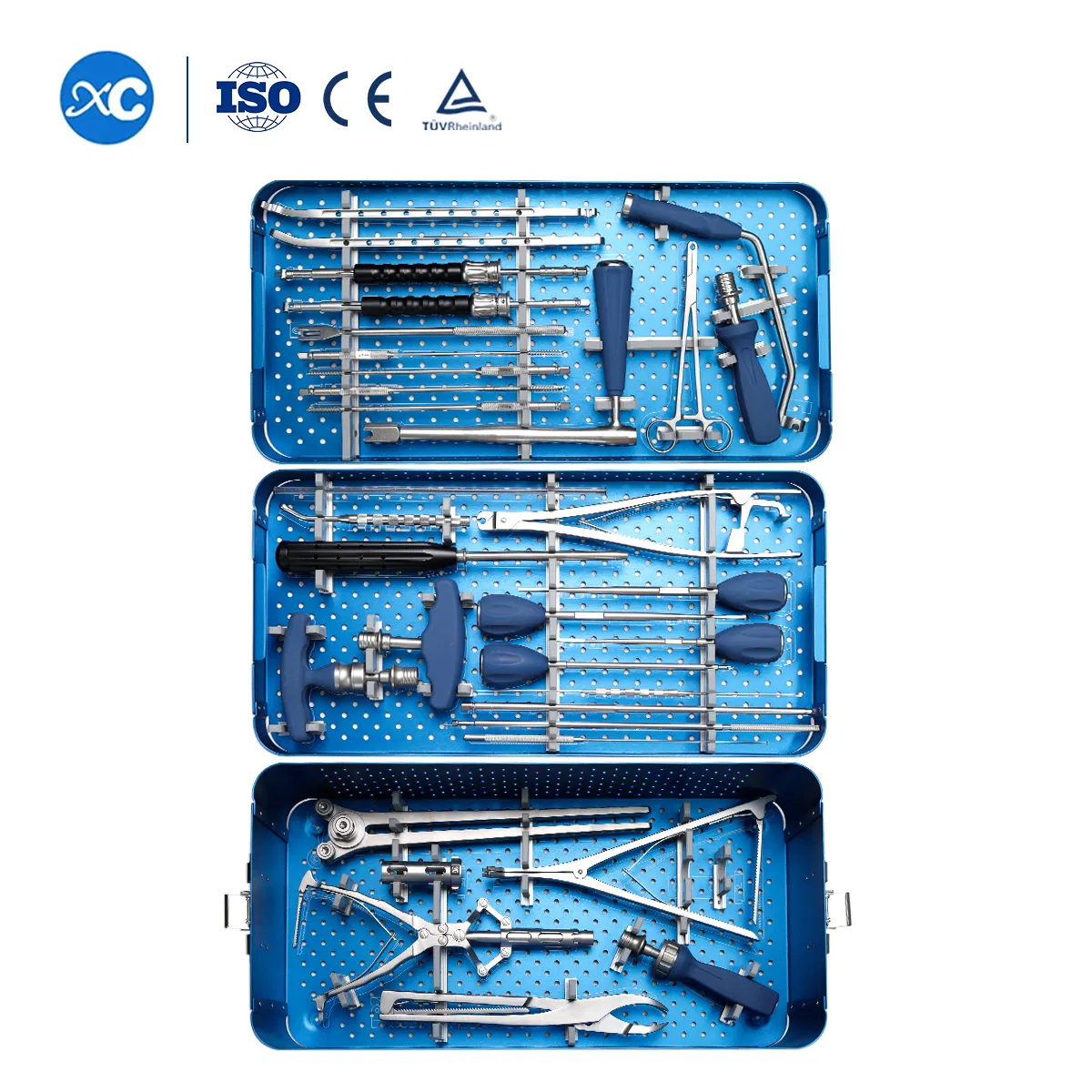

6.0mm Spinal Pedicle Screw System Instrument Set: A complete set of precision instruments designed specifically for the 6.0mm system to ensure accurate placement and surgical efficiency.
Instrument Set for Spinal System
Frequently Asked Questions
What materials are used for the 6.0 Spinal Pedicle Screw System?
The system primarily utilizes high-grade Titanium alloy, known for its excellent biocompatibility and strength in orthopedic implants.
What screw types are available in this system?
The system includes Monoaxial, Polyaxial, Monoaxial Reduction, Polyaxial Reduction, and Iliac Pedicle screws.
How are the screws identified during surgery?
Different screw sizes are color-coded to allow surgical teams to identify the correct dimensions quickly and accurately during an operation.
What is the benefit of the polyaxial screw design?
The polyaxial screws offer a maximum angle of 28 degrees, which significantly facilitates the alignment and placement of the rod within the spinal construct.
Is there an instrument set available for this system?
Yes, a dedicated 6.0mm Spinal Pedicle Screw System Instrument Set is available to support the complete implantation procedure.
What range of rod lengths is provided?
Standard rods are available in lengths ranging from 100mm to 400mm, alongside specialized gradient titanium rods.
