Tibial Bearing Primary TKA Total Knee Artificial Replacement High Flexion

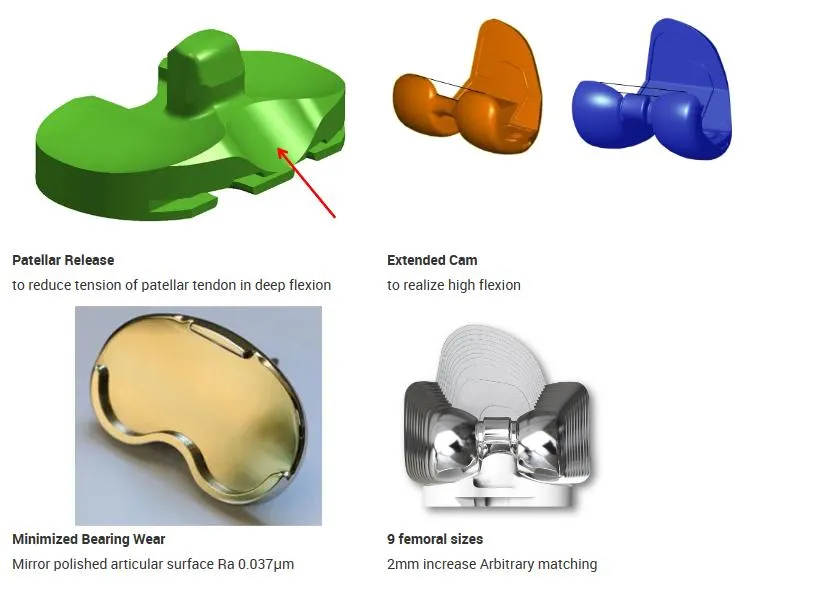

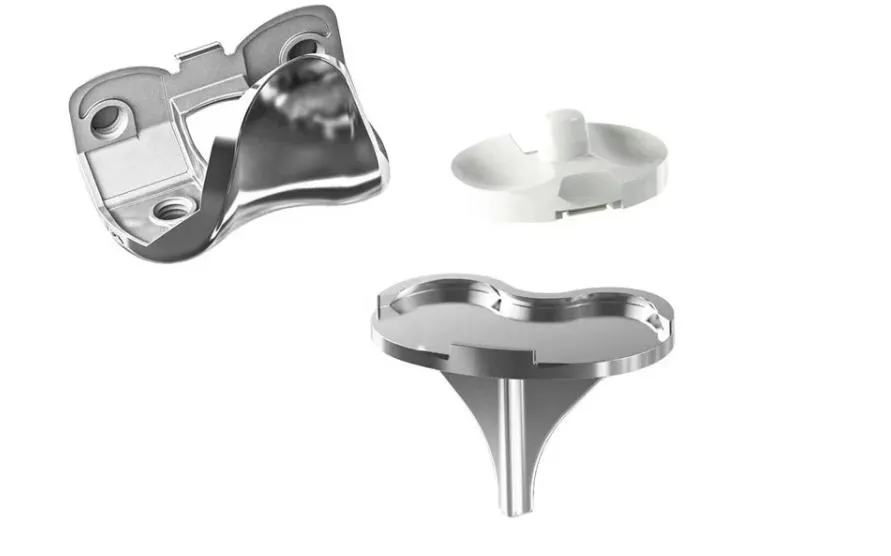

Femoral Condylar Features
- High flexion design;
- Optimized patellofemoral articular design;
- Almost custom-made component size, 2mm increments in A/P;
- Proportional posterior condyles allow for greater contact area in deep flexion;
- Mirror polished surface reduces wear and debris post-operatively;
- Soften intercondylar notch reduces post wear in flexion;
- Cam extension provides increase resistance to dislocation in deep flexion.
- All femoral condyle match with tibial tray perfectly.
Tibial Tray & Bearing Features
- Narrowed cruciate fins preserve more bone stock;
- High polished surface minimizes back wear of bearing;
- Allows for proper axial rotation and hyperextension of knee;
- 1:1 tibial/femoral coronal congruency increases contact area;
- Patellar tendon relief facilitates increased range of motion;
- Rounded post geometry minimizes forces due to rotation.
Technical Parameters
1. Material: CoCrMo + Imported PE
2. Flexion: 145° High Flexion
3. Stability: Post Stabilized (PS)
4. Surface: Mirror Polishing

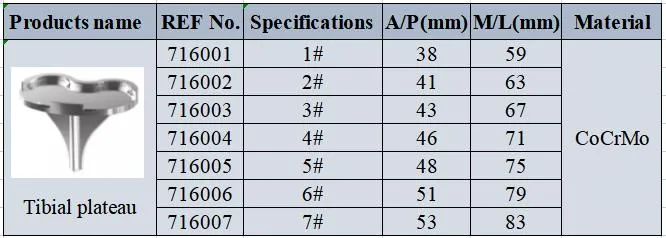

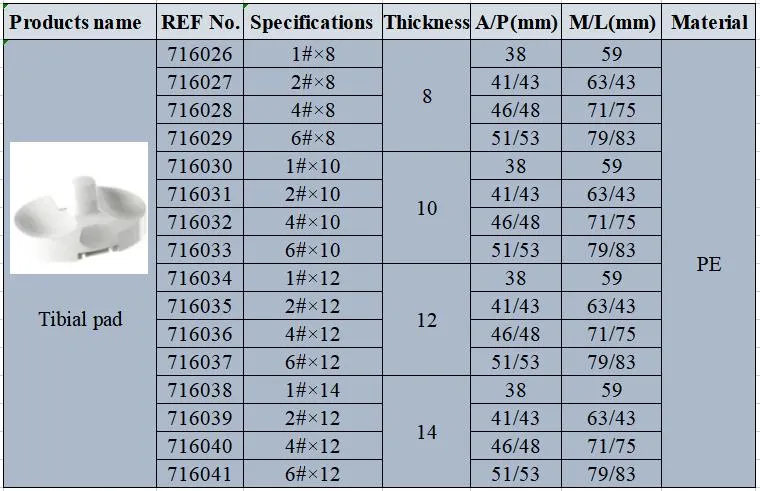

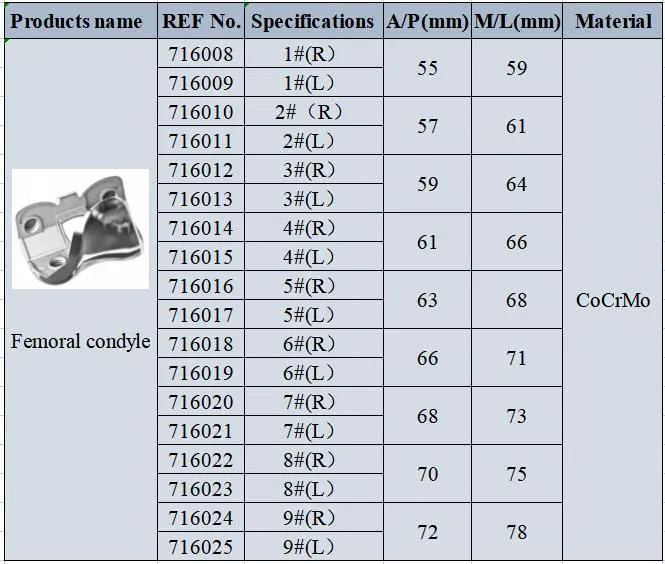

5. Specification: Femoral: 1#-9#, Tibial: 1#-7#, Pad: 1/2/4/6#
Advantages & Design Details
1. Rounded Sagittal Profile
Rounded sagittal profile allows for greater range of motion and may be more forgiving to the retinaculum by not over tensioning the soft tissues.
Anatomic (Green) vs. Swept-back Sagittal Profile (Gray)
2. Deeper Swept-back Trochlear Groove
The trochlear groove resists patella crepitus and clunk. Designed to sweep back posteriorly for better patellar performance.
3. Extended & Wider Trochlear Groove
Lengthened to support the patella in deep flexion and provide support of the quadriceps tendon. Widened to reduce constraining forces in extension.

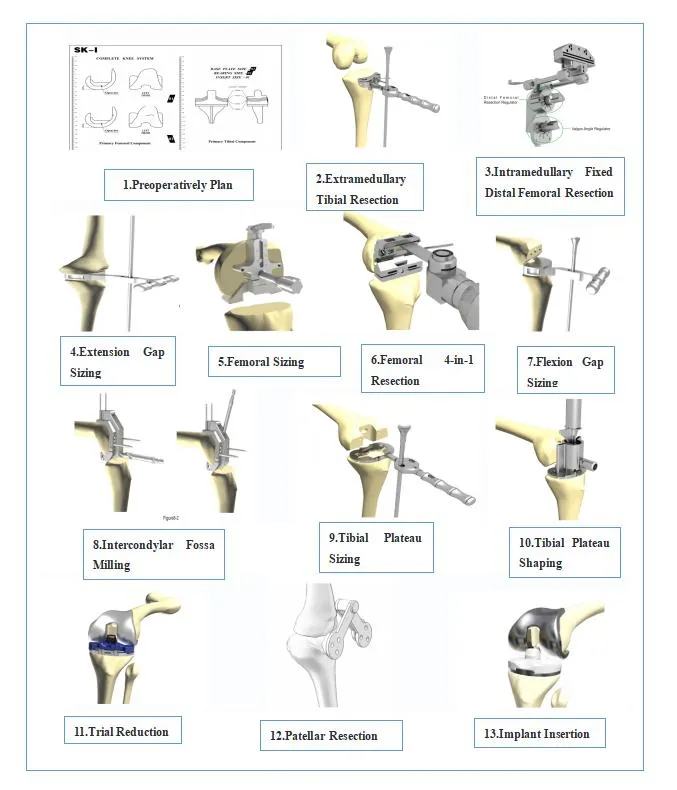

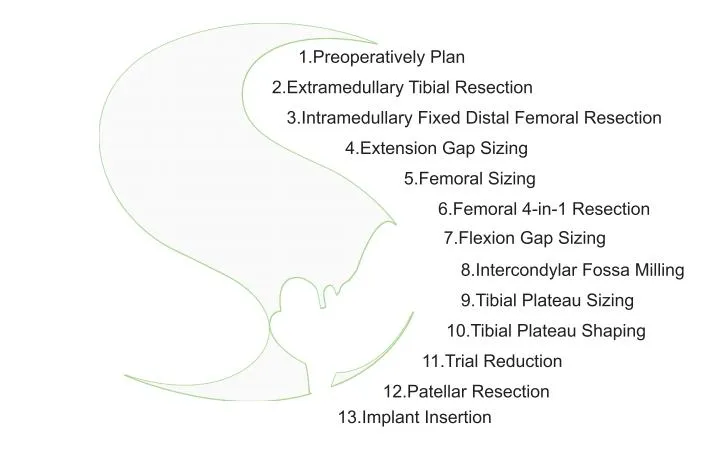

Application Steps
Specifications & Quality
Delivery & Certification
FAQ
How about your delivery time?
Generally, it will take 8 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Do you test all your goods before delivery?
Yes, we perform 100% testing on all products before delivery to ensure quality and safety.
What materials are these products made of?
These medical components are primarily made of CoCrMo (Cobalt Chromium Molybdenum) and imported medical-grade PE (Polyethylene).
What are the available payment methods?
We accept TT (Telegraphic Transfer), L/C (Letter of Credit), or Western Union.
What is the maximum flexion angle for this knee system?
The system is designed for high flexion, achieving up to 145° to provide a natural range of motion for the patient.
How do you ensure a long-term business relationship?
We maintain high-quality standards and competitive pricing. We treat every customer with respect, sincerity, and friendship regardless of their origin.
