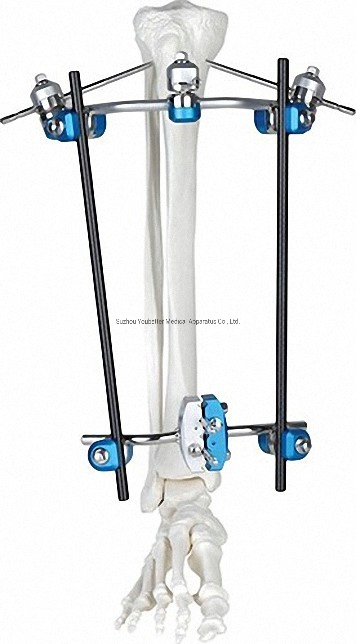

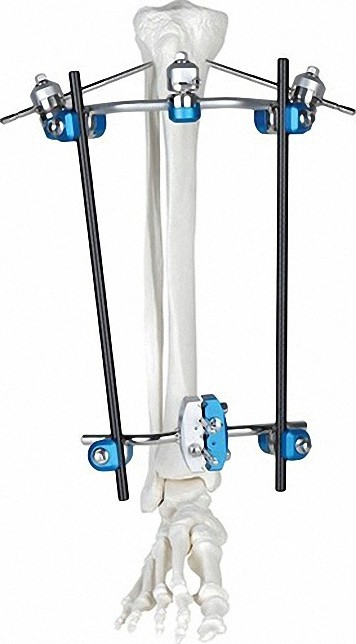

Strong External Fixator for Bone Fixation, White & Black, Titanium Alloy
Strong External Fixator for Bone Fixation, White & Black, Titanium Alloy
Strong External Fixator for Bone Fixation, White & Black, Titanium Alloy
Strong External Fixator for Bone Fixation, White & Black, Titanium Alloy
Strong External Fixator for Bone Fixation, White & Black, Titanium Alloy
1 / 5
Strong External Fixator for Bone Fixation, White & Black, Titanium Alloy
Strong External Fixator for Bone Fixation, White & Black, Titanium Alloy
Strong External Fixator for Bone Fixation, White & Black, Titanium Alloy
Strong External Fixator for Bone Fixation, White & Black, Titanium Alloy
Strong External Fixator for Bone Fixation, White & Black, Titanium Alloy

Strong External Fixator for Bone Fixation, White & Black, Titanium Alloy

Customization: Available
Application: Orthopedic, Neurosurgery, Microsurgery
Material: Steel
Send Inquiry

Product Description

Basic Information
Model NO.
External Fixation
Feature
Reusable
Certification
CE, ISO13485
Color
White & Black
Usage
Bone Fixation
Material Type
Titanium Alloy & Stainless Steel
Specification
50*50*50CM
Origin
China
Production Capacity
500,000 Pieces/Year
HS Code
90211000
External Fixator -- The Pinnacle of Modular Fixation Systems

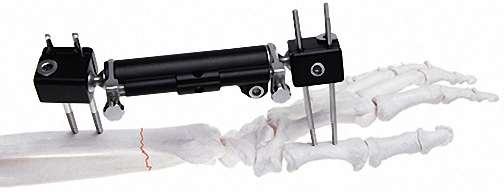

Strong External Fixator for Bone Fixation
Product Features:
✦
Distinguished by groundbreaking technology and intuitive operation, ensuring a testament to innovation.
✦
Facilitates independent arrangement of bone screws for effective management of proximal and distal fractures.
✦
Innovative snap-fit design ensures streamlined, time-efficient surgical procedures.
✦
Premium Medical aluminum and carbon fiber materials enhance fracture visualization for improved surgical outcomes.
✦
Unparalleled stability and flexibility catering to diverse medical needs.
✦
Compact, space-saving frame designed for effortless transport and ease of use in any medical setting.

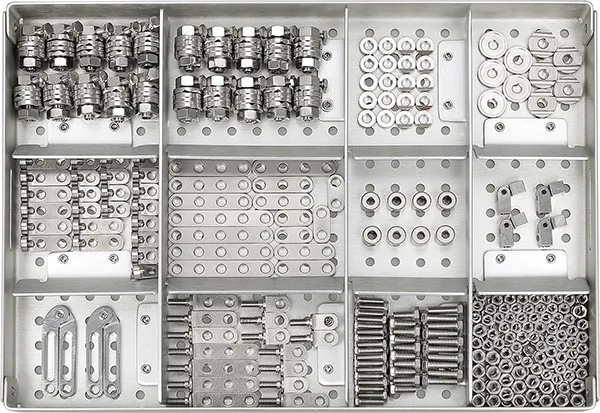

External Fixator Detail 1

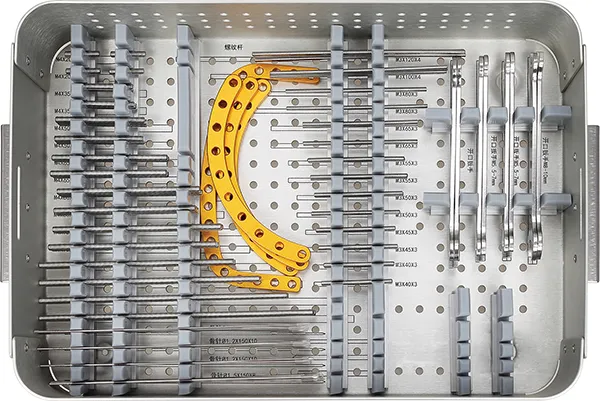

External Fixator Detail 2
Technical Specifications & Components
Component Name Specifications Quantity
Independent Couplingφ6*φ14(1.5-2.0) / φ6*φ14(1.5)10 / 10
Needle Clipφ4*φ9 (φ1.0) / φ4*φ9 (φ1.5)5 / 5
Cone Washerφ4*φ9 / φ4*φ1410 / 5
Double Groove Needle Clampφ4*φ14(2.0-2.5)5
Post With Threaded PostVarious sizes (φ3/φ4)8-10 per type
Connection Plateφ4*20 to φ4*50 (2-5 Holes)4 per type
Hex NutM3 / M490 / 90
Straight Threaded RodM3/M4 (Length 20mm-155mm)Multiple
Bone Screws1.0*150 / 1.2*150 / 1.5*15020 / 20 / 8
Instrument SetStandard Kit1
Modular Variant Systems

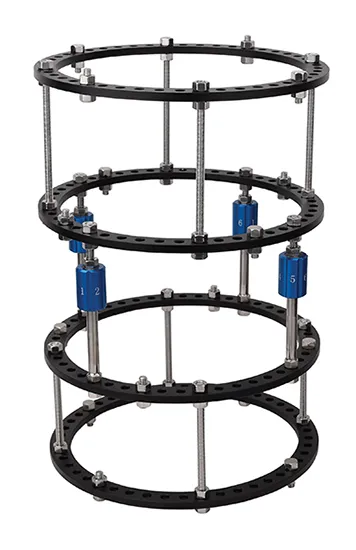

Lower Limbs Lengthening External Fixator
Lower Limbs Lengthening Fixator
(Tibia/Femur)

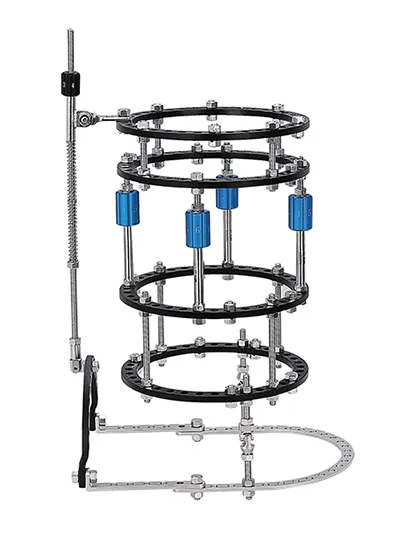

Orthopedic External Fixator
Orthopedic External Fixator
(Humeral & Tibial Lateral)

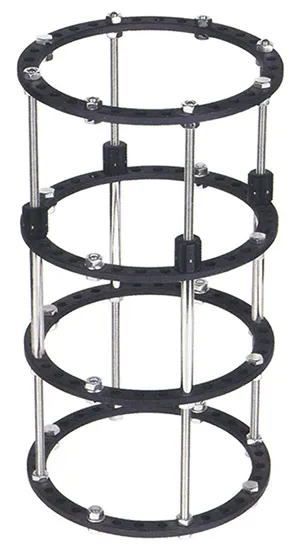

Ring Fixator
Standard Ring Fixator
(Tibia/Femur)

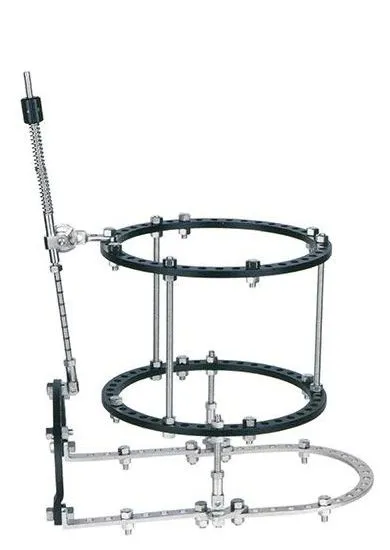

Ankle Joint Fixator
Ankle Joint Fixator
(Used for Equinus)

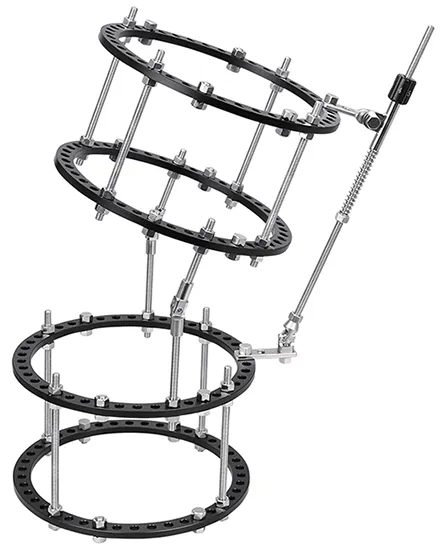

Knee Joint Fixator
Knee Joint Fixator

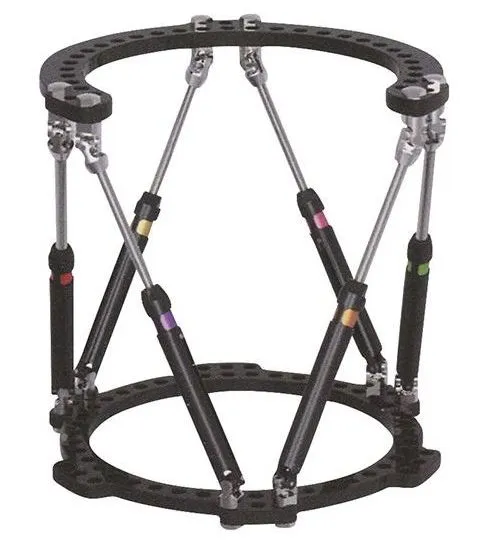

Ring Fixator Variant
Hybrid Ring Fixator
Frequently Asked Questions
What materials are used in the construction of these fixators?
The systems are primarily crafted from high-grade Titanium Alloy and Stainless Steel, with specific components using Medical aluminum and carbon fiber for enhanced X-ray translucency.
Are the external fixation systems reusable?
Yes, the basic frame and components are designed to be reusable after proper sterilization, following standard medical protocols.
Which certifications do these medical devices hold?
Our external fixators are fully certified with CE and ISO13485 standards, ensuring compliance with international quality and safety requirements for orthopedic surgery.
How does the "snap-fit" design benefit the surgical process?
The innovative snap-fit design allows for rapid assembly and adjustment during surgery, significantly reducing operative time and improving patient care efficiency.
Can these fixators be used for complex fracture management?
Absolutely. The system is expertly designed to address complex fractures and cases involving significant soft tissue loss, providing modular flexibility for distal and proximal injuries.
Is the frame compatible with various bone sizes?
Yes, with a variety of connection plates ranging from 2 to 5 holes and multiple threaded rod lengths, the system can be customized for different anatomical requirements, including tibia, femur, and humerus.
