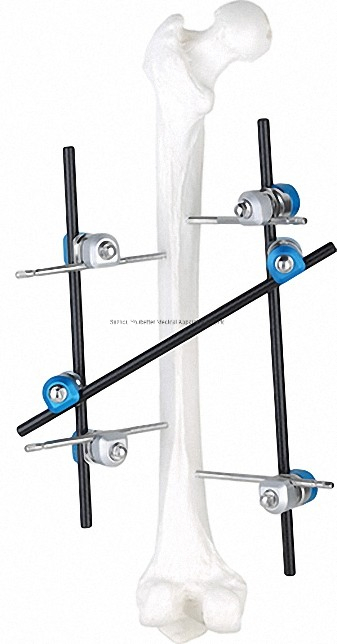

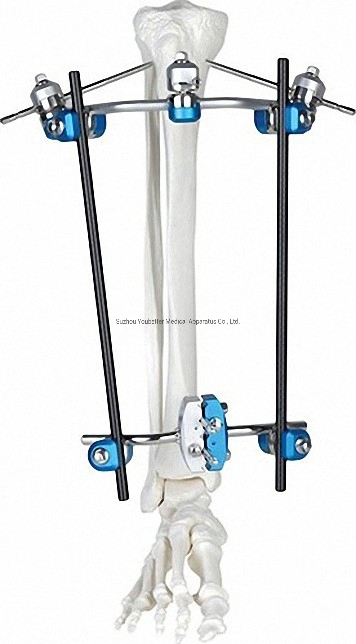

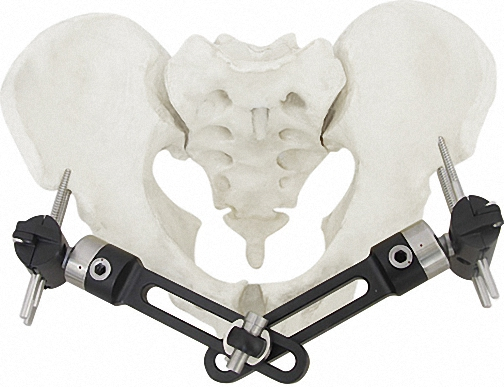

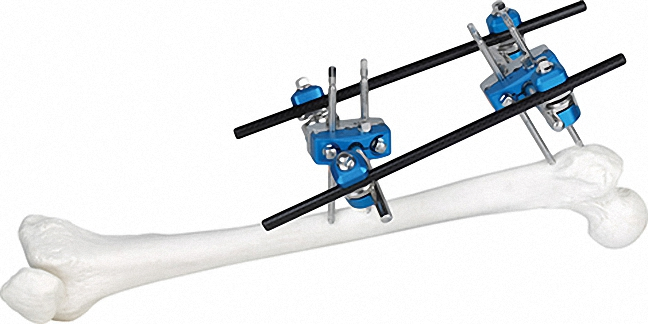

Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
1 / 5
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black

Titanium Bone Fixator Kit in Sleek White and Black

Customization: Available
Application: Orthopedic, Neurosurgery, Microsurgery
Material: Steel
Send Inquiry

Product Description

📋 Basic Information
Model NO.
External Fixation
Feature
Reusable
Certification
CE, ISO13485
Color
White & Black
Usage
Bone Fixation
Material Type
Titanium Alloy & Stainless Steel
Name
External Fixator
Transport Package
Box
Specification
50*50*50CM
Origin
China
HS Code
90211000
Production Capacity
500,000 Pieces/Year
🔬 Product Description
External Fixator -- The Pinnacle of Modular Fixation Systems

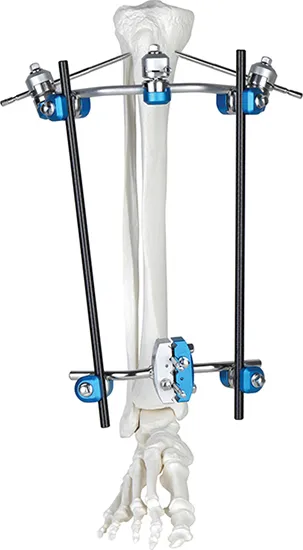

Titanium Bone Fixator Kit
  • Distinguished by groundbreaking technology and intuitive operation, revolutionizing orthopedic treatment.
  • Facilitates independent arrangement of bone screws for proximal and distal fractures.
  • Innovative snap-fit design ensures streamlined and time-efficient surgical procedures.
  • Premium medical-grade aluminum and carbon fiber materials enhance fracture visualization.
  • Provides unparalleled stability and flexibility for diverse medical needs.
  • Compact, space-saving frame designed for convenient transport and ease of use.
  • Expertly addresses complex fractures and soft tissue loss with one comprehensive solution.
  • Straightforward, effective, and reliable usage for both practitioners and patients.

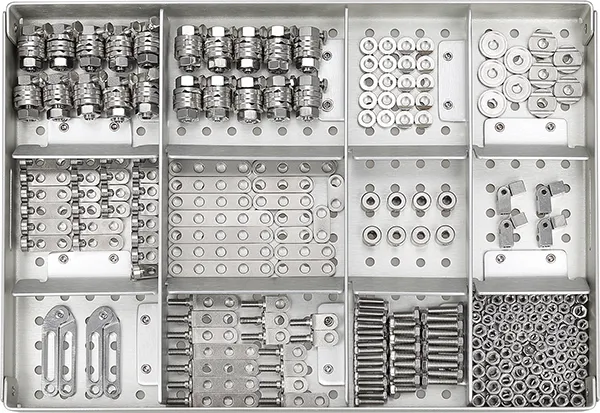

Bone Fixator Component

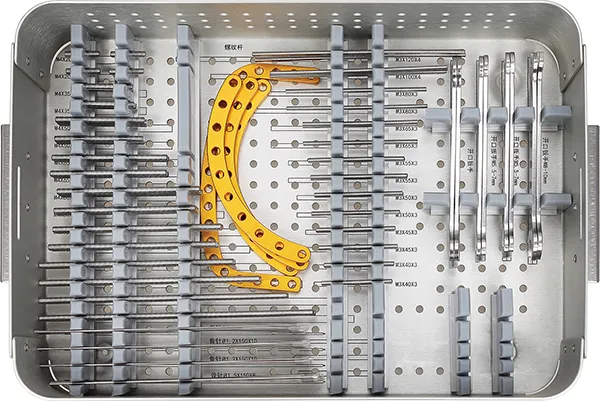

Titanium Fixator Setup
📊 Technical Specifications
Component Name Specification Quantity
Independent Couplingφ6*φ14(1.5-2.0) / φ6*φ14(1.5)10 / 10
Needle Clipφ4*φ9 (φ1.0) / φ4*φ9 (φ1.5)5 / 5
Cone Washerφ4*φ9 / φ4*φ1410 / 5
Double Groove Needle Clampφ4*φ14(2.0-2.5)5
Connection Plateφ4*20 to φ4*50 (2-5 Holes)4 each
Threaded PostVarious (M3/M4)8 each
BoltsM3*12 / M4*10 / M4*1417 / 10 / 10
Hex NutM3 / M490 / 90
Straight Threaded RodM3*40 to M4*155Various
Bone Screws1.0*150 / 1.2*150 / 1.5*15020 / 20 / 8
⚙️ System Variations

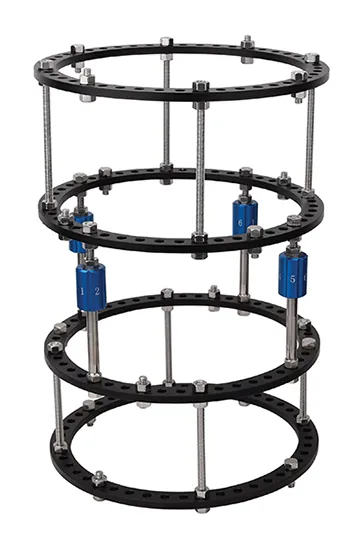

Lower Limbs Lengthening Fixator

Lower Limbs Lengthening Fixator
Used for Tibia/Femur

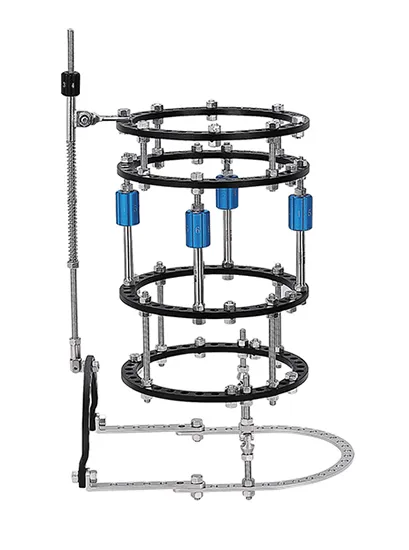

Orthopedic External Fixator

Orthopedic External Fixator
Used for Humeral & Tibial Lateral Epicondyle

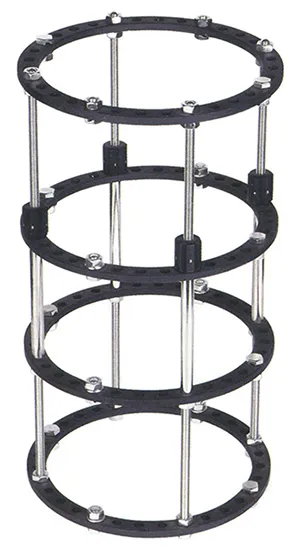

Ring Fixator

Ring Fixator
Used for Tibia/Femur

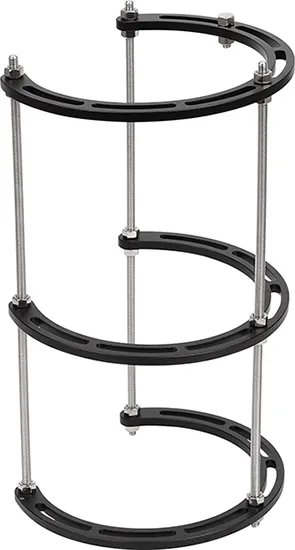

2/3 Ring Fixator

2/3 Ring Fixator
Used for Tibia/Femur

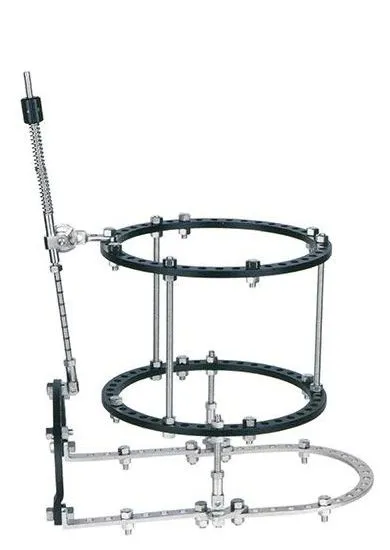

Ankle Joint Fixator

Ankle Joint Fixator
Used for Equinus

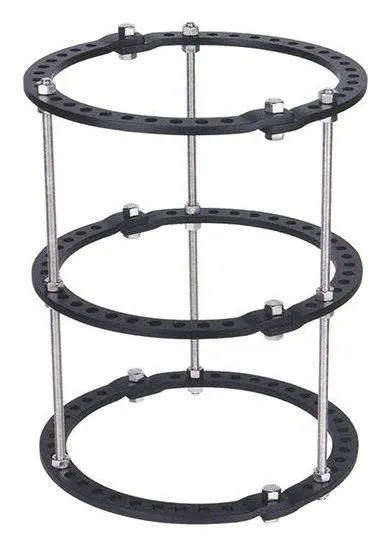

Tibia Fixator

Ring Fixator
Used for Tibia/Femur

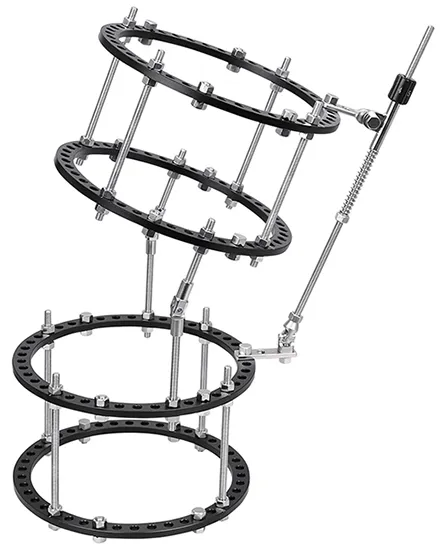

Knee Joint Fixator

Knee Joint Fixator
Used for Knee Joint

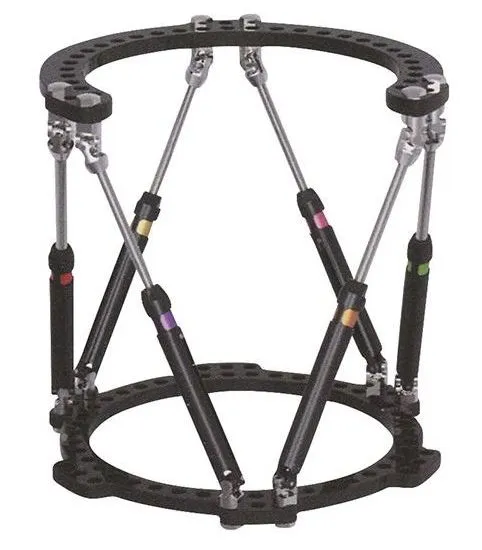

Full Ring Fixator

Ring Fixator
Used for Tibia/Femur

❓ Frequently Asked Questions
What materials are used in the External Fixator system?
The system is constructed from high-grade Titanium Alloy and Stainless Steel. Some components utilize medical-grade aluminum and carbon fiber to enhance fracture visualization and ensure durability.
Is the External Fixator device reusable?
Yes, the basic information confirms that the External Fixator is designed to be reusable, making it a cost-effective solution for medical facilities.
What certifications does this orthopedic system hold?
The product is fully certified with CE and ISO13485 standards, ensuring it meets international quality and safety requirements for medical devices.
Can this system be used for both upper and lower limb fractures?
Absolutely. The system includes specialized variations for the femur, tibia, humerus, ankle joint, and knee joint, making it highly versatile for various orthopedic needs.
How does the "snap-fit" design benefit the surgical process?
The innovative snap-fit design allows for faster assembly and adjustment during surgery, significantly reducing time spent in the operating room and streamlining the medical procedure.
What is included in the Instrument Set?
The full set includes independent couplings, needle clips, connection plates, threaded rods, bone screws, open spanners, and various hinges and washers necessary for complete bone fixation.
